Simrad | SKU: SIM/000-13776-001 | Barcode: 9420024161876

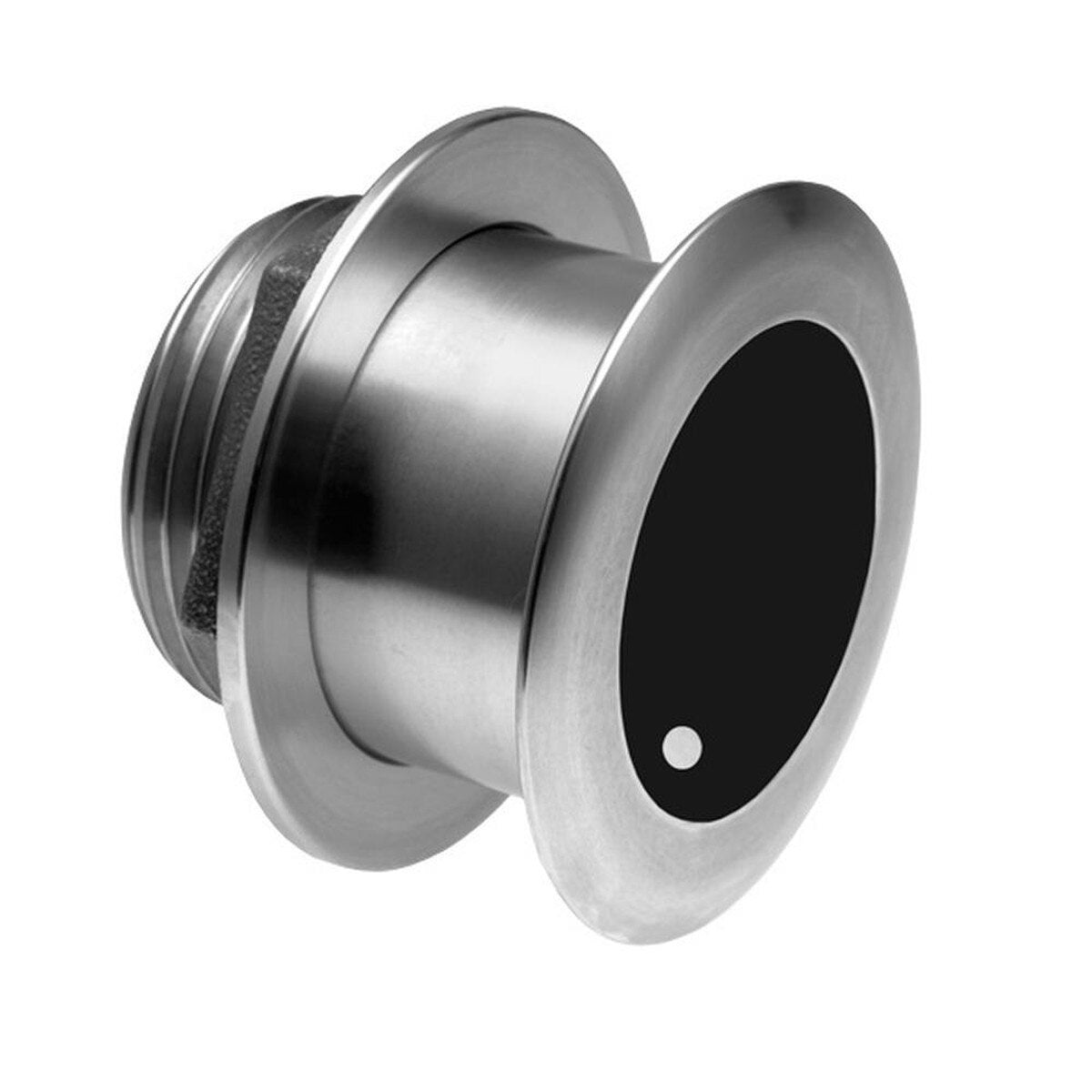

SS175L (20°)

Name: SS175L (20°)
Brand: Simrad
SKU: SIM/000-13776-001
Price: 1858.00 USD
Availability: InStock

1kW Low CHIRP Tilted Element Thru-Hull Transducer

$1,858⁰⁰

Options

SS175L (0°)

1kW Low CHIRP Tilted Element Thru-Hull Transducer

SS175L (12°)

1kW Low CHIRP Tilted Element Thru-Hull Transducer

SS175L (20°)

1kW Low CHIRP Tilted Element Thru-Hull Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000 feet) with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Depth & fast-response water-temperature sensor
Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
35 kHz of total bandwidth from one transducer
Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
Steel transducer housing
Hull Type: Steel or aluminum
Black 9-Pin connector

Specifications

Product Series

B175 / SS175
MPN

000-13776-001
Physical

Flange Size: 5.30" (135 mm)
Usable Shaft Length: 2.18" (55 mm)
Weight: 6 lbs (2.7 kg)
Mounting

Type: Tilted Element Thru-Hull
Tilt: 20°
Hole Size: 95mm or 3-3/4"
Sonar

Power: 1kW
Frequency: Low CHIRP (40-60 kHz)
Beamwidth: 16°-25°
Max Depth (Fresh Water): 2000'
Temperature: Yes
Connectivity

Simrad/Lowrance/B&G xSonic 9pin
Cable Length (Ft)

33
Material

Stainless Steel
