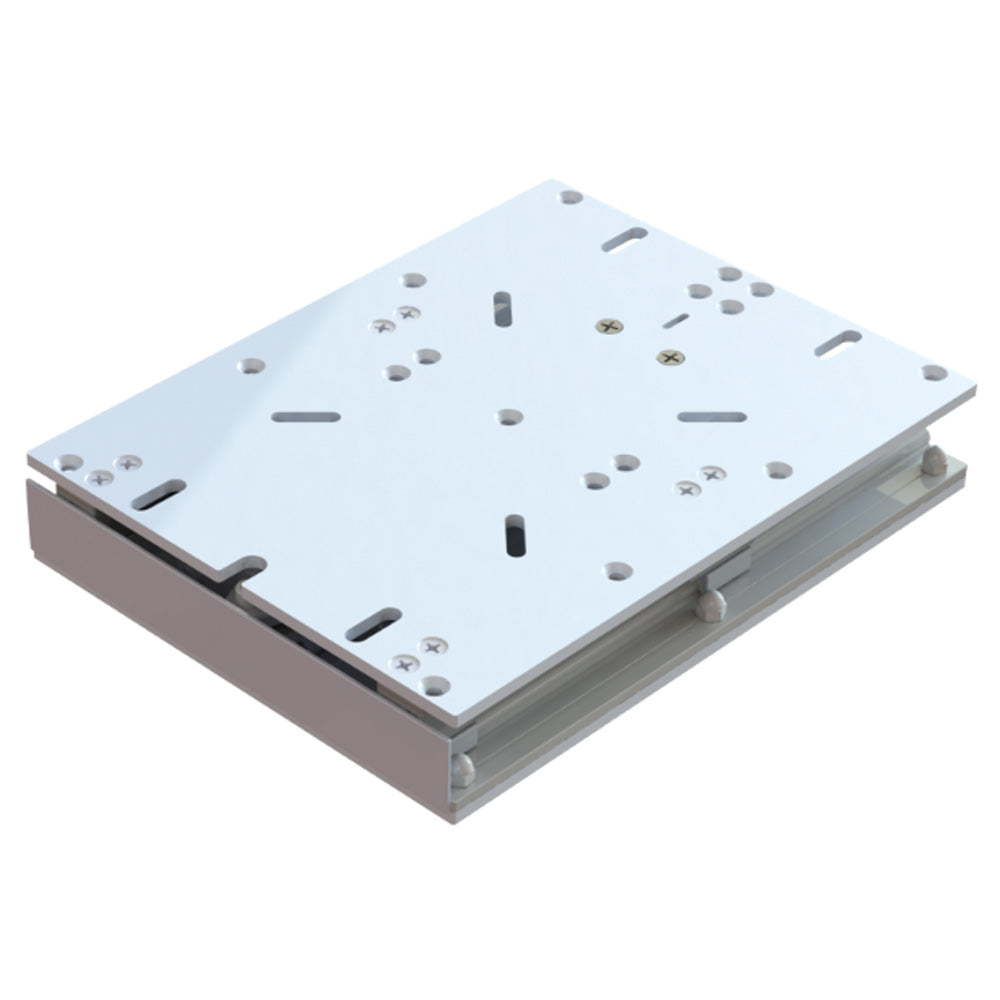

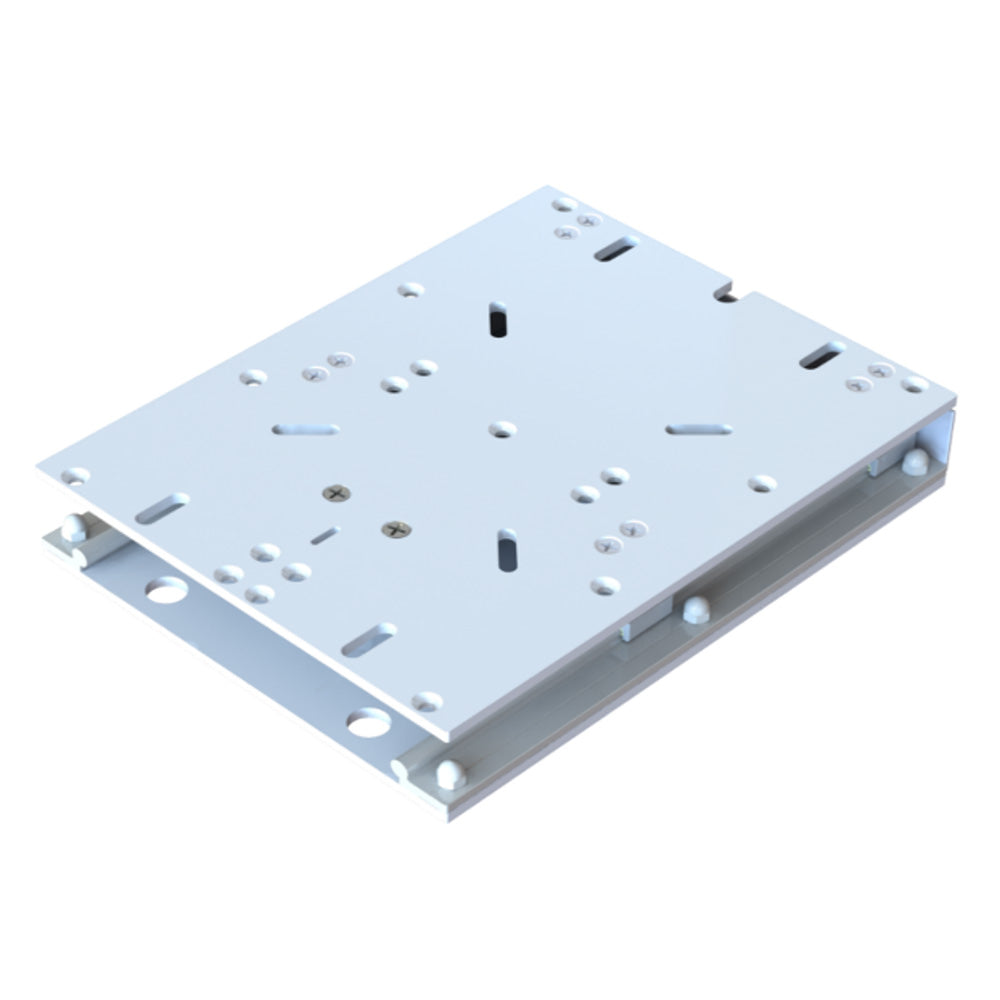

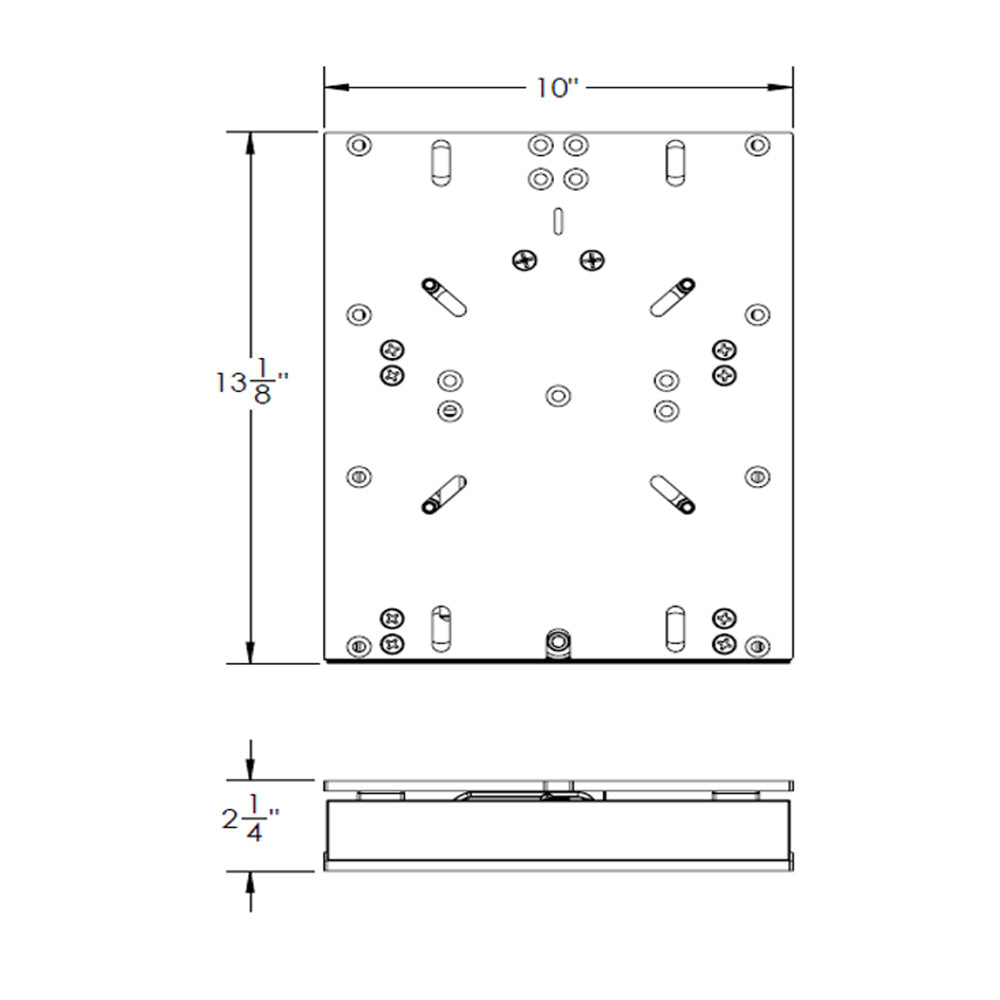

13-1/8" x 10" Electric Seat Slide
Perfect for seats 23" to 28" wide, this 13-1/8" X 10" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions.
Features:
- Ideal for seats 23" to 28"

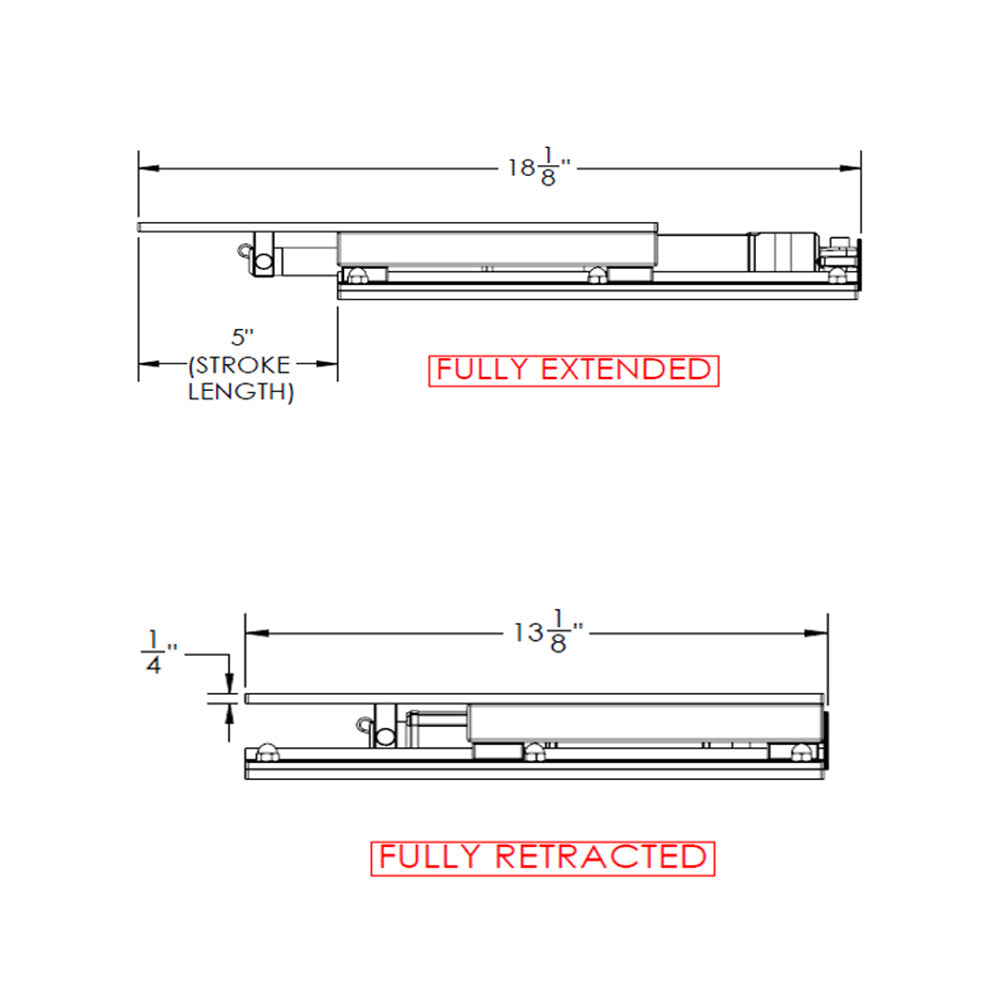

- Features 5" of travel distance (stroke length)
- Water-resistant IP66 rating
- Meets H31 testing standards for seat applications
- Precision-machined 6000-series aluminum chassis
- Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight and shock resistant
- Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
- Quite an operation ≤ 58dB
- Electric actuator
- Self-locking at any given position (at rated loads)
- No racking in any direction due to precision tolerances in the track/glide system
- All electric seat slides and components are acid-etched clear anodized
- Made in the USA
- 3-year limited warranty
Specifications
Specifications
Identification
| MPN | M20-1013E |
|---|---|
| Barcode | 631097090935 |
General
| Note 1 | 12V DC 9 AMP Max current |
|---|---|
| Note 2 | Max load 3500N |
| Note 3 | Push and pull force of 1500N |
| Note 4 | IP66 Rated |
| Note 5 | Speed 13.5 mm/Sec @ 1500N |
