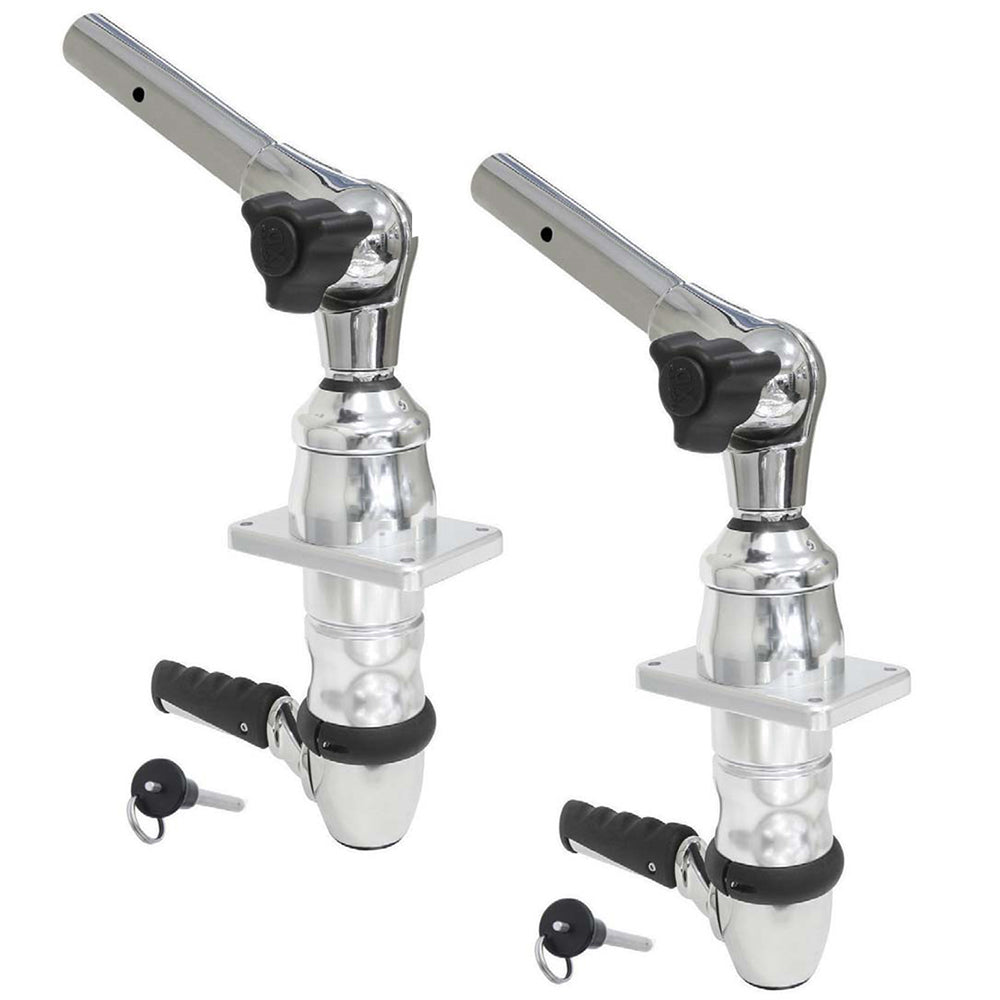

Tigress XD Top Mount

XD Top Mount

For use on sport fishing boats up to 40 feet.

Features:

• Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
• Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using adapter
• Fits Tigress and other industry standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
• Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection
• 24 adjustable/locking system positions (15° increments) featuring Tigress XD 316 Stainless Steel design
• 19 upper-arm angle/locking positions (10° increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
• Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
• Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation
• Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.
• User friendly underside lever actuation, with 8 optional indexable set-up positions
• Standard ¼” diameter locking stainless steel push-in-pin for outriggers
• Fits through all standard 3” diameter mounting plates and hard top holes
• Sold as pair
• 3-Year Limited Warranty

In The Box:

Package Dimensions:

24" x 19" x 8"

Available Method:

• Ground
• 2 Day

• Installation Guide

* ALL WARRANTY IS THROUGH MANUFACTURE *
