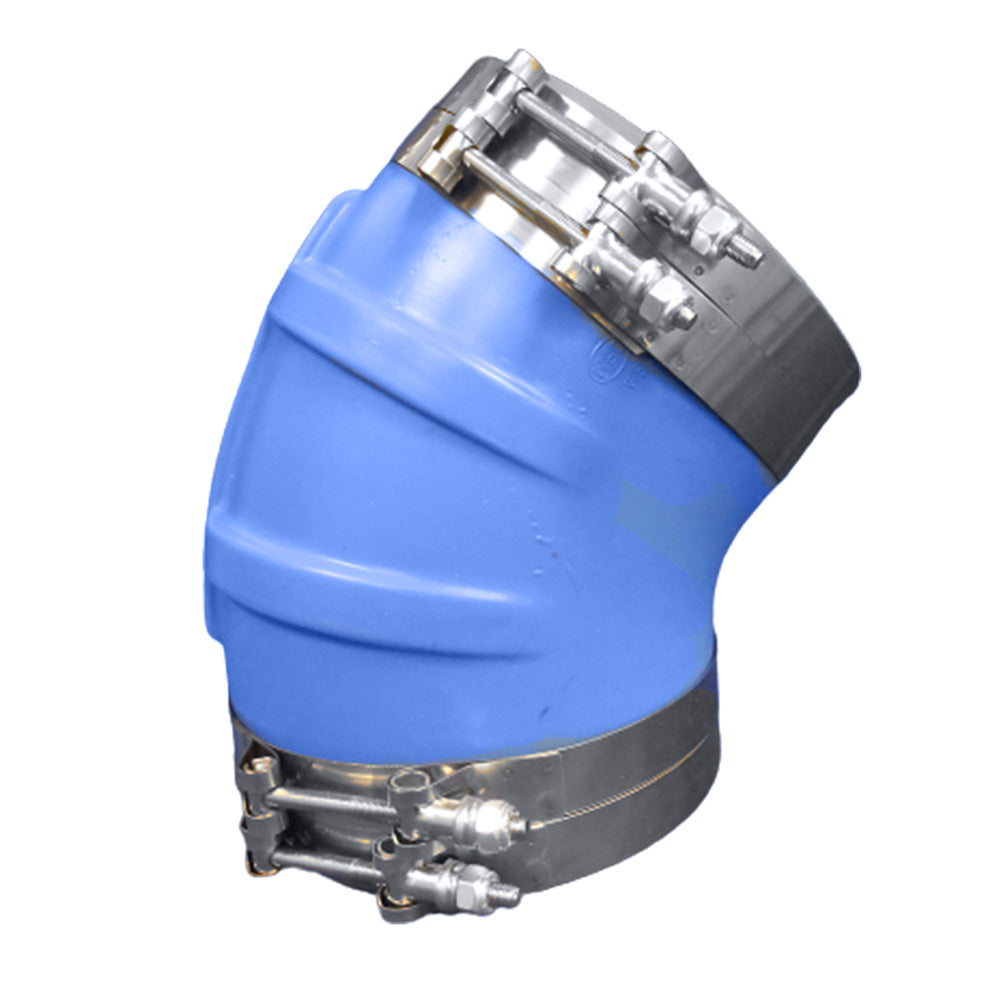

Trident Marine 8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

SKU: TRI/240V80000-S/S
Regular price $49704

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel t-bolt clamps
  • Very high temp silicone/EDPM blend rubber - molded
  • This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
  • Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

  • Color: Blue
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 350°F (177°C)

Specifications

Identification

MPN 240V80000-S/S
Barcode 704917002354

Physical

Inner Diameter (inch) 8” / 203.2 mm

General

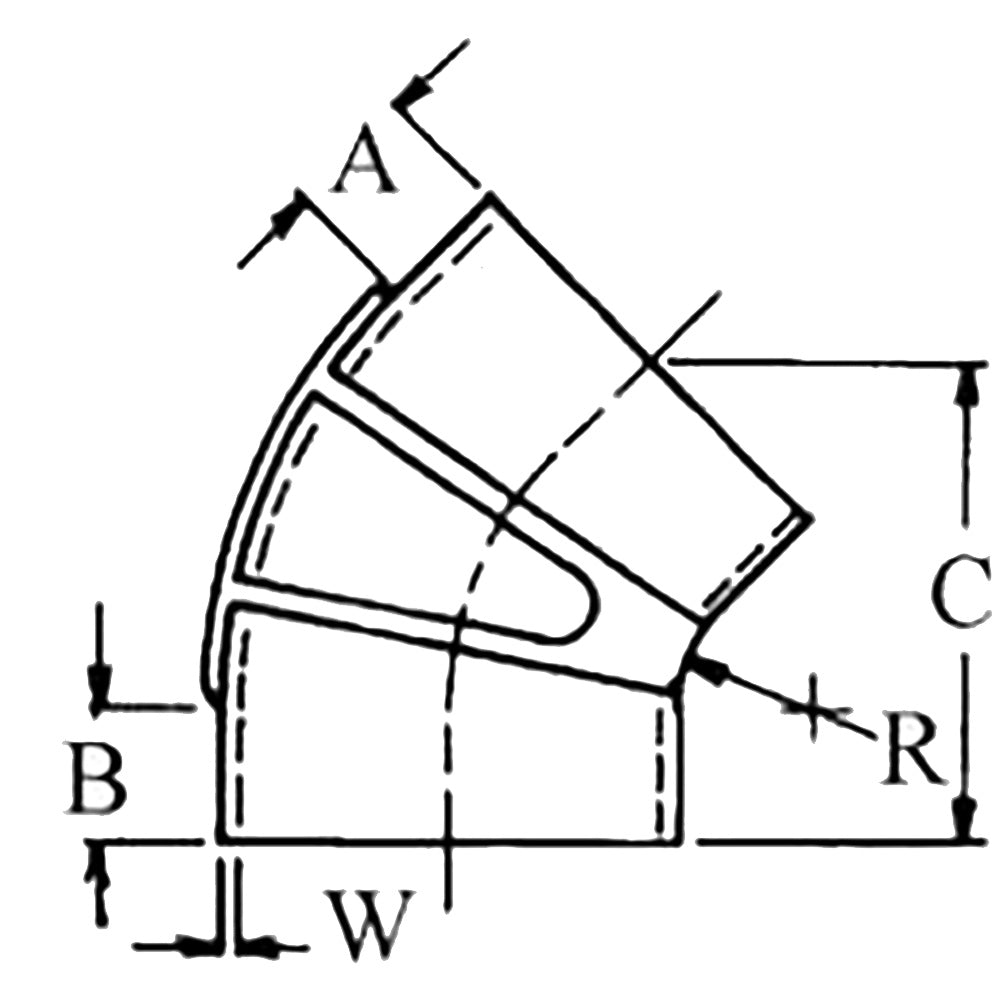

A (inch) 2.25” / (mm) 5.7
B (inch) 2.25” / (mm) 5.7
C (inch) 8.5” / (mm) 21
R (inch) 2.12” / (mm) 5.4
W (inch) 0.37" / (mm) 9.4
Elbow Degree 45 degrees

Reviews (0)

In The Box

In The Box:

Package Dimensions:

15" x 10" x 8"
