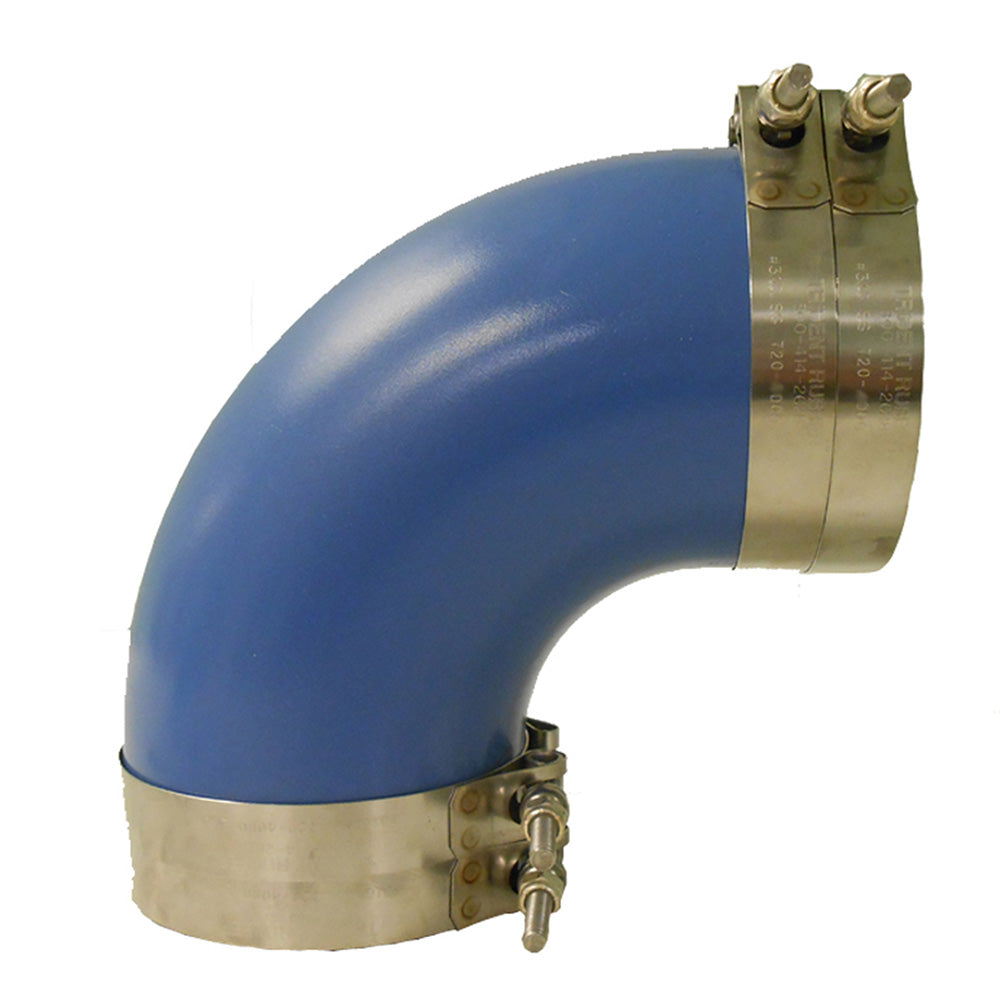

Trident Marine 4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

SKU: TRI/290V4000-S/S
Regular price $26933

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

4" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

  • Four stainless steel t-bolt clamps
  • Very high temp silicone/EDPM blend rubber - molded
  • This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
  • Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

  • Color: Blue
  • Temperature Range: up to 350°F (177°C)

Specifications

Identification

MPN 290V4000-S/S
Barcode 704917002071

Physical

Inner Diameter (inch) 4” / (mm) 101.6

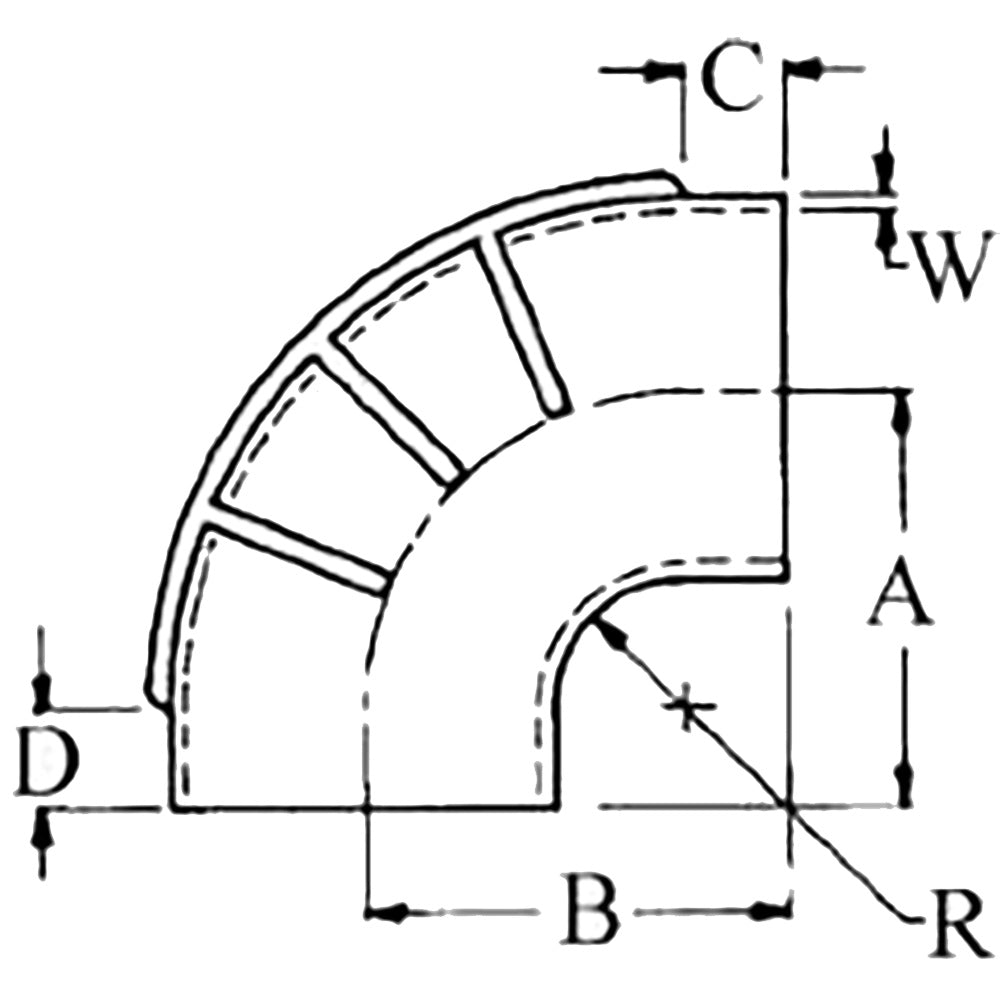

General

A (inch) 5.75” / (mm) 146
B (inch) 5.75” / (mm) 146
C (inch) 1.75” / (mm) 44.4
D (inch) 1.50" / (mm) 38.1
R (inch) 2” / (mm) 50.8
W (inch) 0.25" / (mm) 6.4
Elbow Degree 90 degrees

Reviews (0)

In The Box

In The Box:

Package Dimensions:

8" x 8" x 8"

Available Method: Ground
