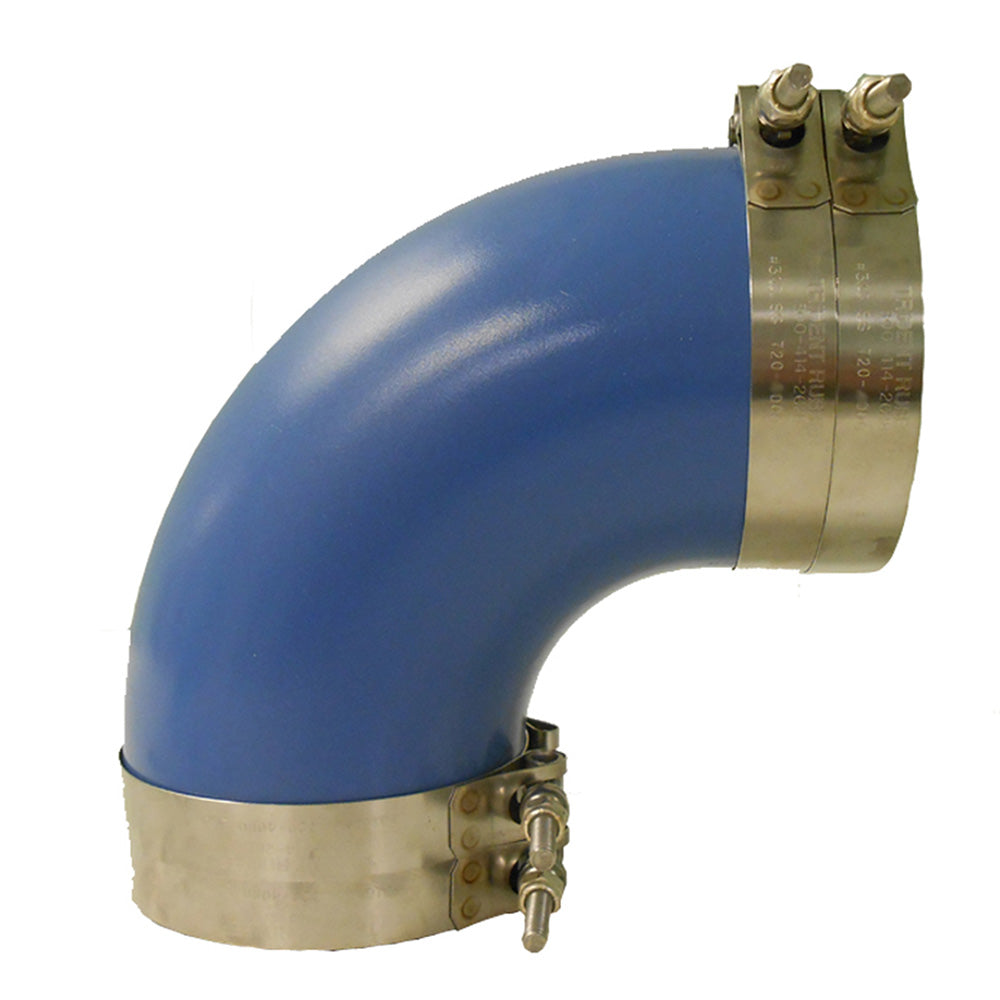

6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel t-bolt clamps
- Very high temp silicone/EDPM blend rubber - molded
- This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
- Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous
Construction:
- Color: Blue
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 350°F (177°C)
Specifications
Specifications
Identification
| MPN | 290V6000-S/S |
|---|---|
| Barcode | 704917002125 |
Physical
| Inner Diameter | (inch) 6” / 152.4 mm |
|---|
General
| A | (inch) 7” / (mm) 178 |
|---|---|
| B | (inch) 7” / (mm) 178 |
| C | (inch) 2.25” / (mm) 57.2 |
| D | (inch) 2" / (mm) 57.2 |
| R | (inch) 1.75” / (mm) 44.5 |
| W | (inch) 0.25" / (mm) 6.4 |
| Elbow Degree | 90 degrees |
