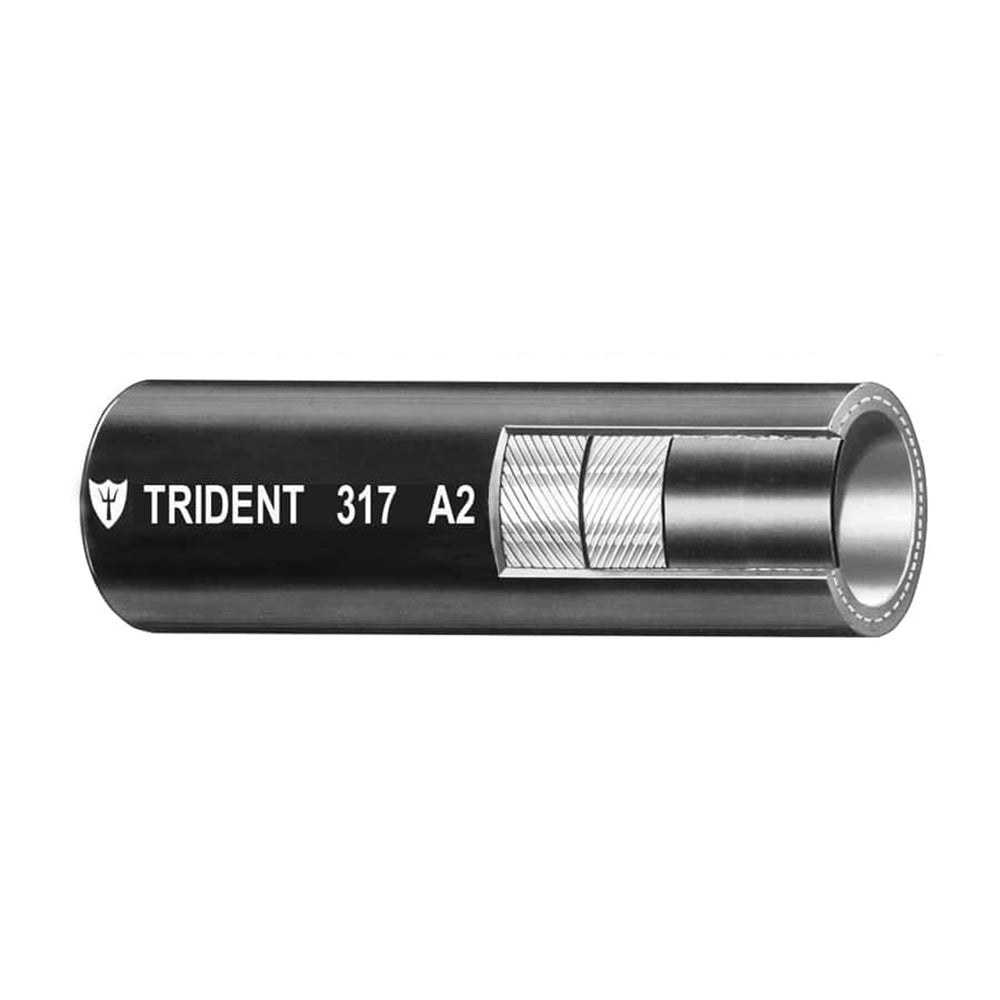

5/8" Type A2 Fuel & Vent Line Hose - Black - Sold by the Foot
Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.
Features:
- Sold by the foot
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also provides excellent bend-ability
- NMMA Type Accepted & CE certified
Applications:
- Fuel Hose for vent and diesel distribution
- For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube: Nylon Internal Barrier, NBR
- Cover: NBR/PVC Blend
- Reinforcement: Polyester 2 spiral
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
Specifications
Specifications
Identification
| MPN | 317-0586-FT |
|---|
Physical
| Inner Diameter | (inch) 5/8" / (mm) 15.9 |
|---|---|
| Outer Diameter | (inch) 0.960 / (mm) 24.4 |
| Weight | (lb/100 ft.) 25.84 / (kg/m) 11.72 |
General
| Burst Pressure | (psi) 200 / (mpa) 1.38 |
|---|---|
| Working Pressure | (psi) 50 / (mpa) 0.34 |
| Bend Radius | (inch) 3" / (mm) 76.2 |
