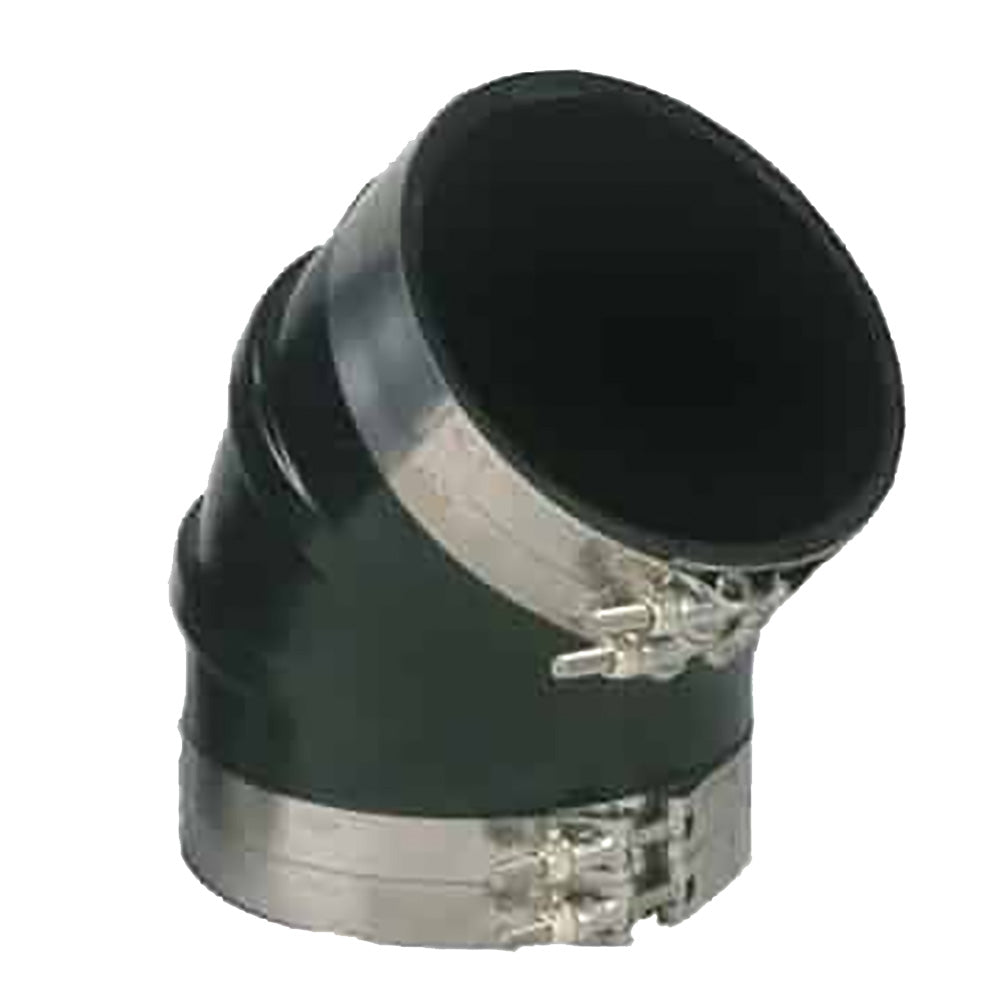

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)
Specifications
Specifications
Identification
| MPN | TRL-845-S/S |
|---|---|
| Barcode | 704917001524 |
Physical
| Inner Diameter | (inch) 8” / (mm) 203 |
|---|---|
| Weight | (Lb/Ea) 4.3 / (Kg/Ea) 1.95 |
General

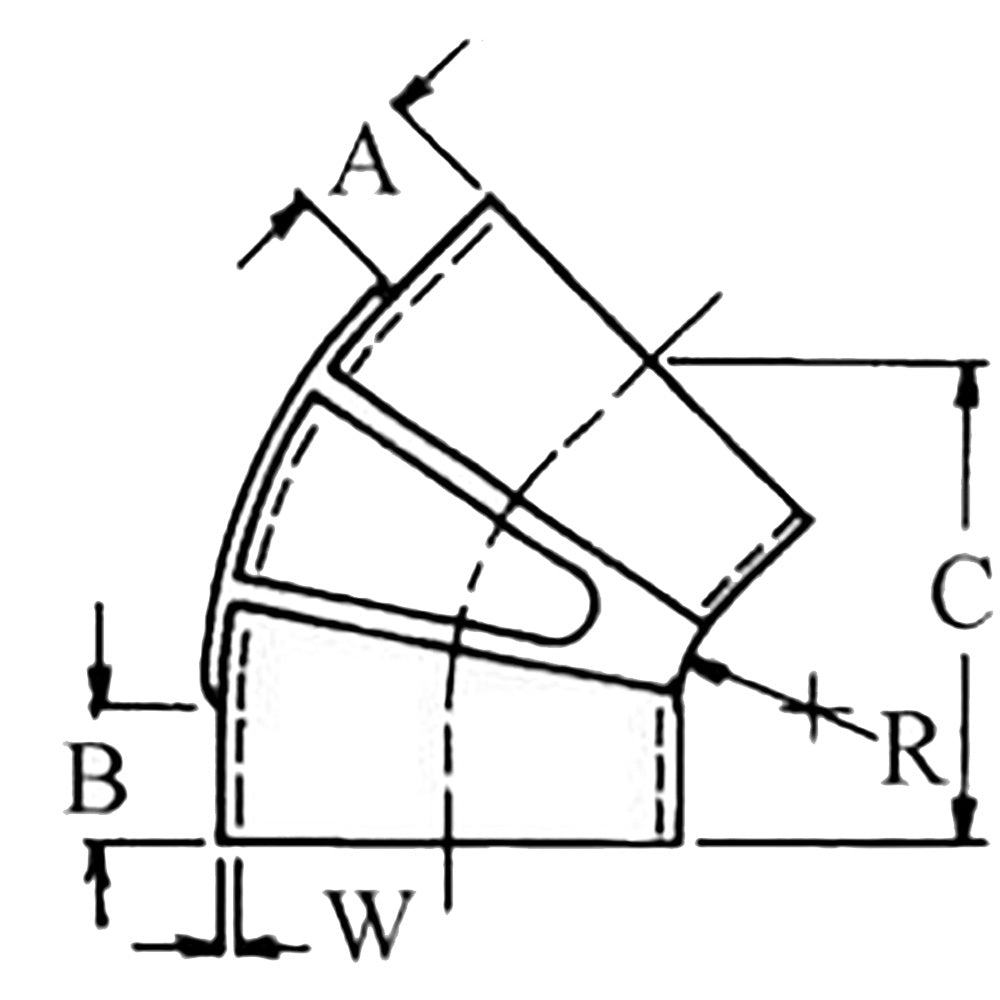

| Outer Diamter | (inch) 8.74" / (mm) 222.0 |
|---|---|
| A | (inch) 2.25” / (mm) 57.2 |
| B | (inch) 2.25” / (mm) 57.2 |
| C | (inch) 8.25” / (mm) 209.5 |
| W | (inch) 0.37” / (mm) 9.4 |
| Elbow Degree | 45 degrees |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
