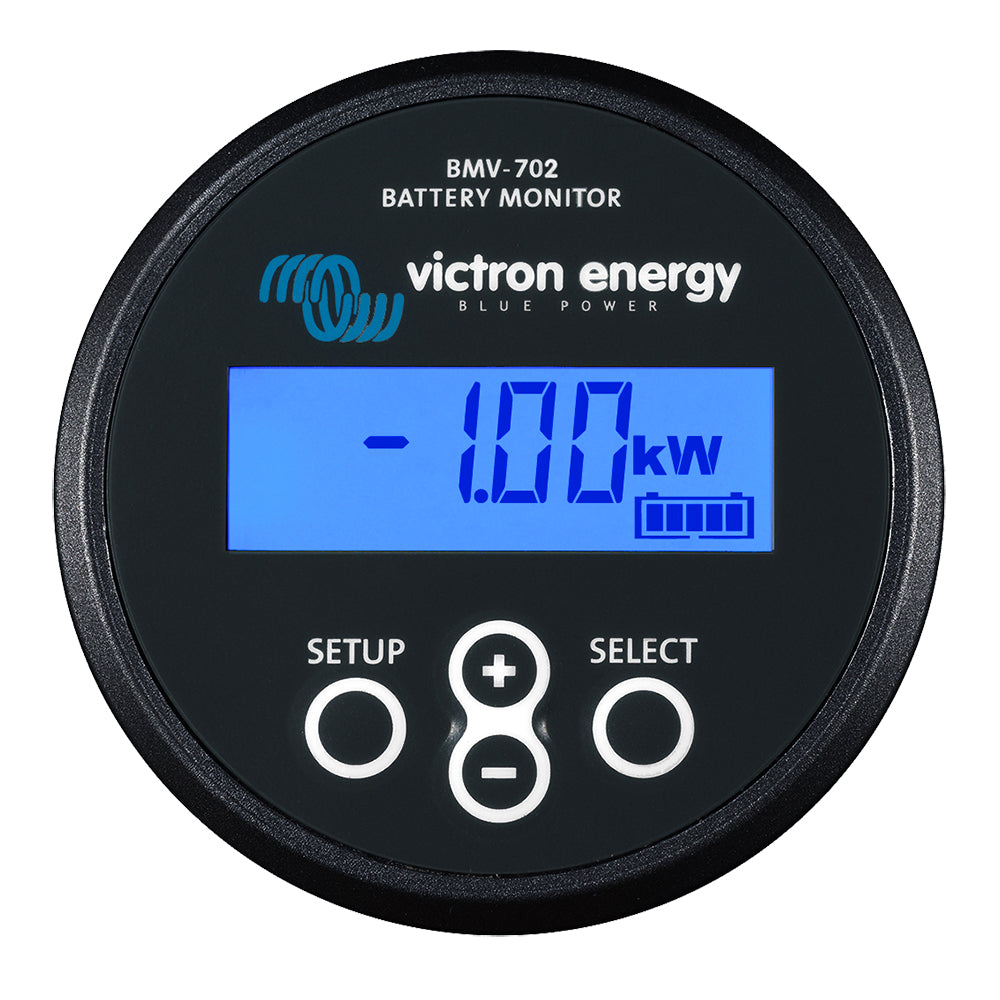

Victron Battery Monitor - BMV-702 - Black
Description
Description
Battery Monitor - BMV-702 - Black
Features:
- Battery ‘fuel gauge’, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage (see below).
- Bluetooth Smart Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
Specifications
Specifications
Identification
| MPN | BAM010702200R |
|---|---|
| Barcode | 8719076020127 |
Electrical
| Supply Voltage Range | 6.5 - 95 VDC |
|---|---|
| Current Measurement Resolution | 10 mA |
| Current Measurement Accuracy | ±0.4% |
| Included Shunt | 500A / 50mV |
| Power Consumption | 2.9 Ah/month (4mA) @12V, 2.2 Ah/month (3mA) @24V |
| Relay Output | 60V / 1A, normally open (invertible) |
Physical
| Front Bezel | 69 x 69 mm |
|---|---|
| Body Diameter x Depth | 52 mm x 31 mm |
| Protection Rating | IP55 (indoor use) |
| Operating Temp Range | -40 to +50°C |
Features
| Second Input | Yes - measures 2nd battery voltage, temperature, or midpoint voltage |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
