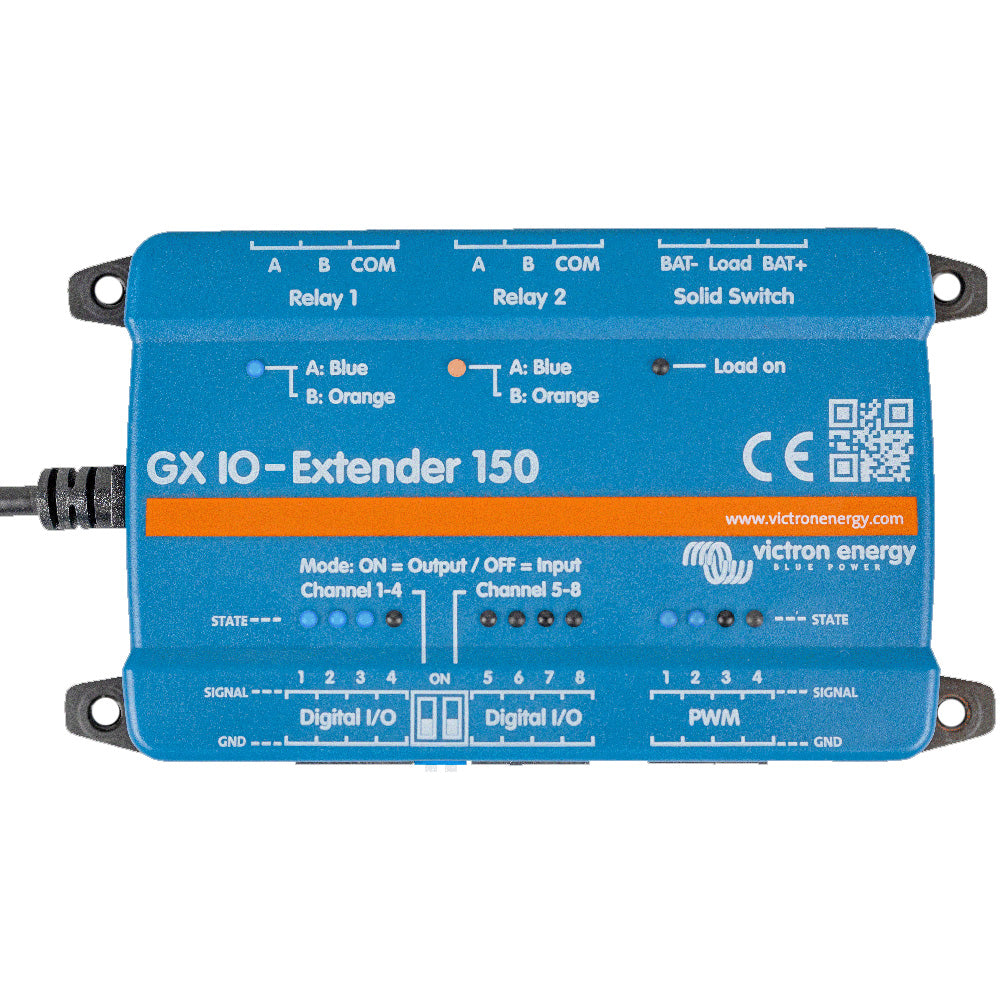

Victron GX-IO Extender 150

GX-IO Extender 150

The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.

Features:

• 8 digital I/Os, configurable as 8 inputs, 8 outputs, or 4 inputs + 4 outputs
• PWM output for precise control applications
• Two latching relays for low-power switching
• A solid switch for controlling DC loads that can be resistive, capacitive, or inductive (such as the coil of a high-power contactor)

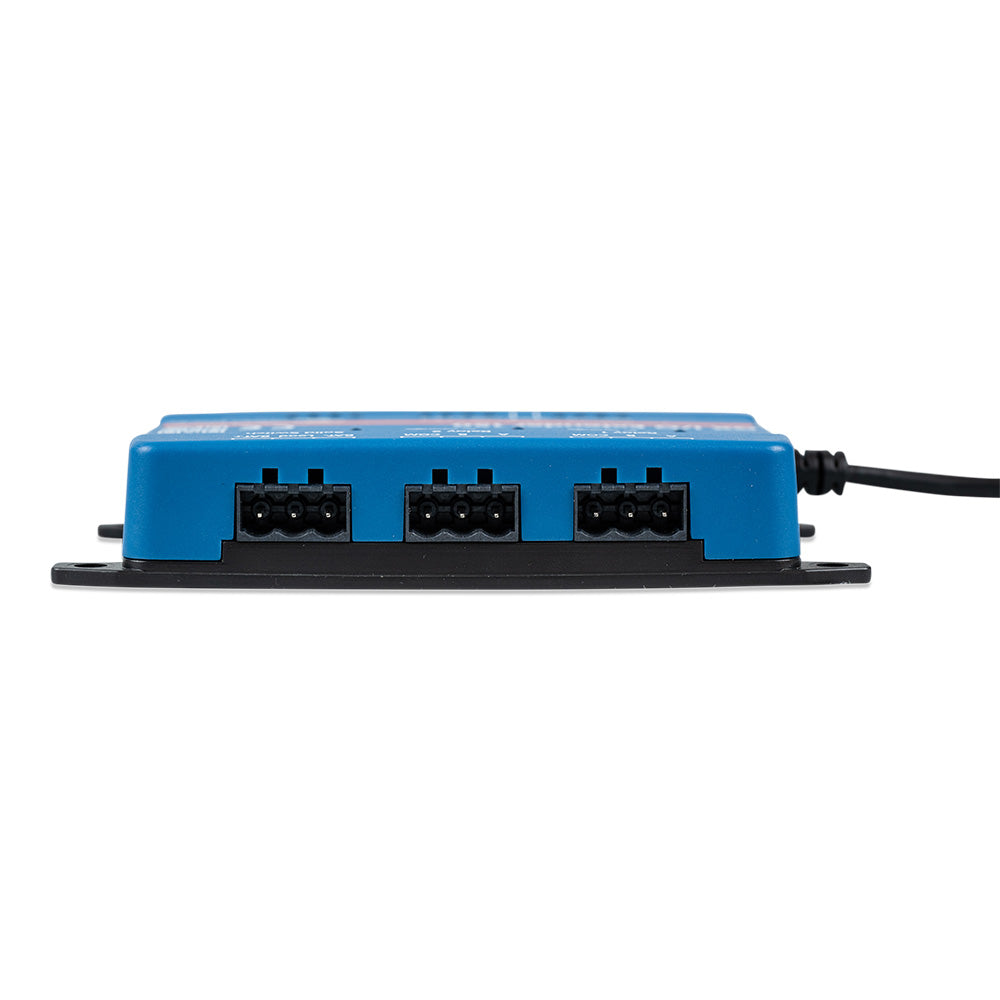

• Pluggable spring terminals for fast and secure connections
• Configurable via Node-RED for easy automation and custom logic

In The Box:

Package Dimensions:

6" x 4" x 2"

Available Method:

• 1st Class
• Ground
• 2 Day

• Owner's Manual
• Installation Guide
• Quick Guide

* ALL WARRANTY IS THROUGH MANUFACTURE *
