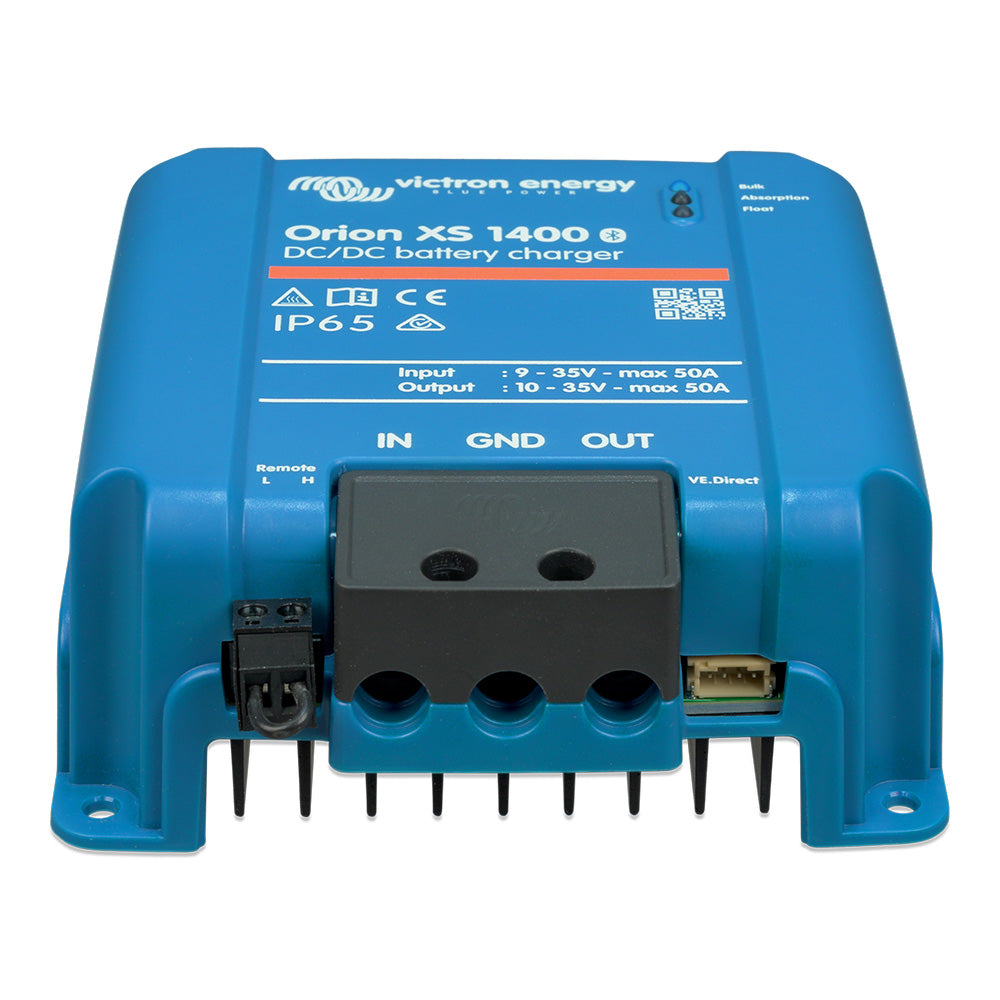

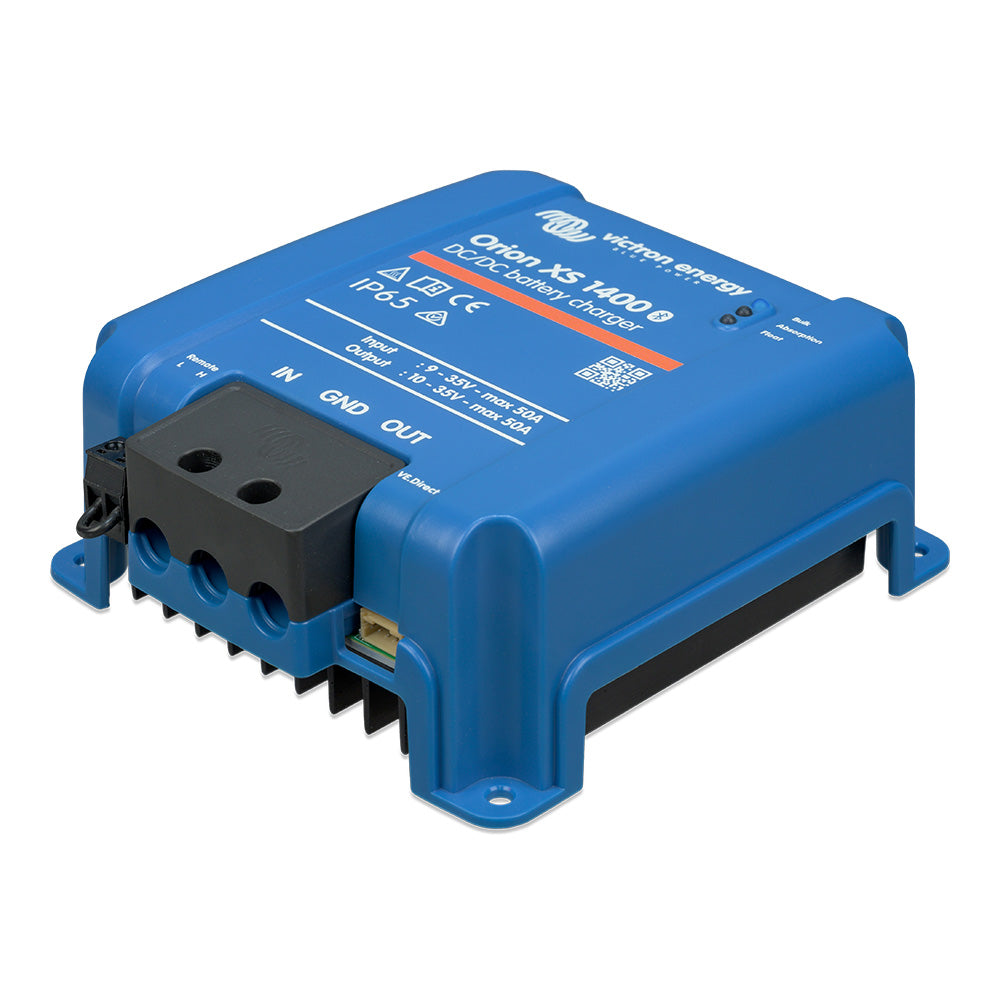

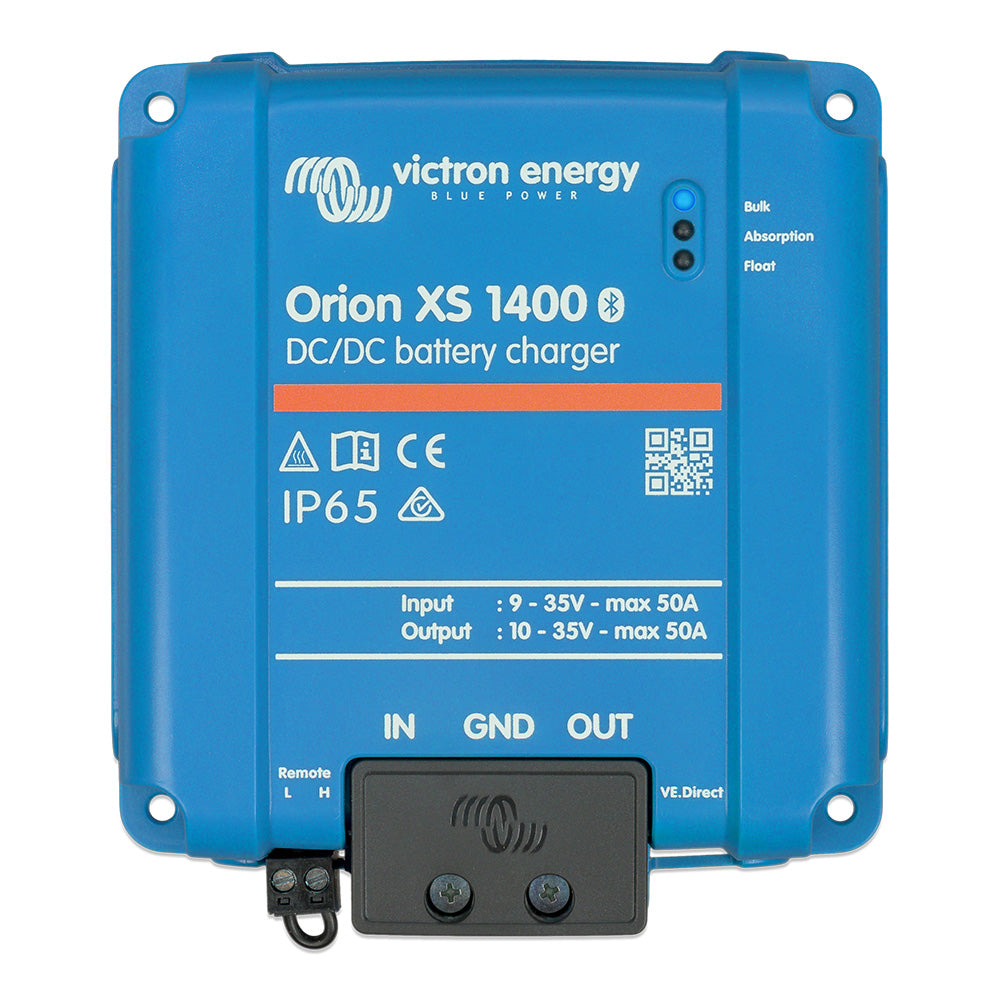

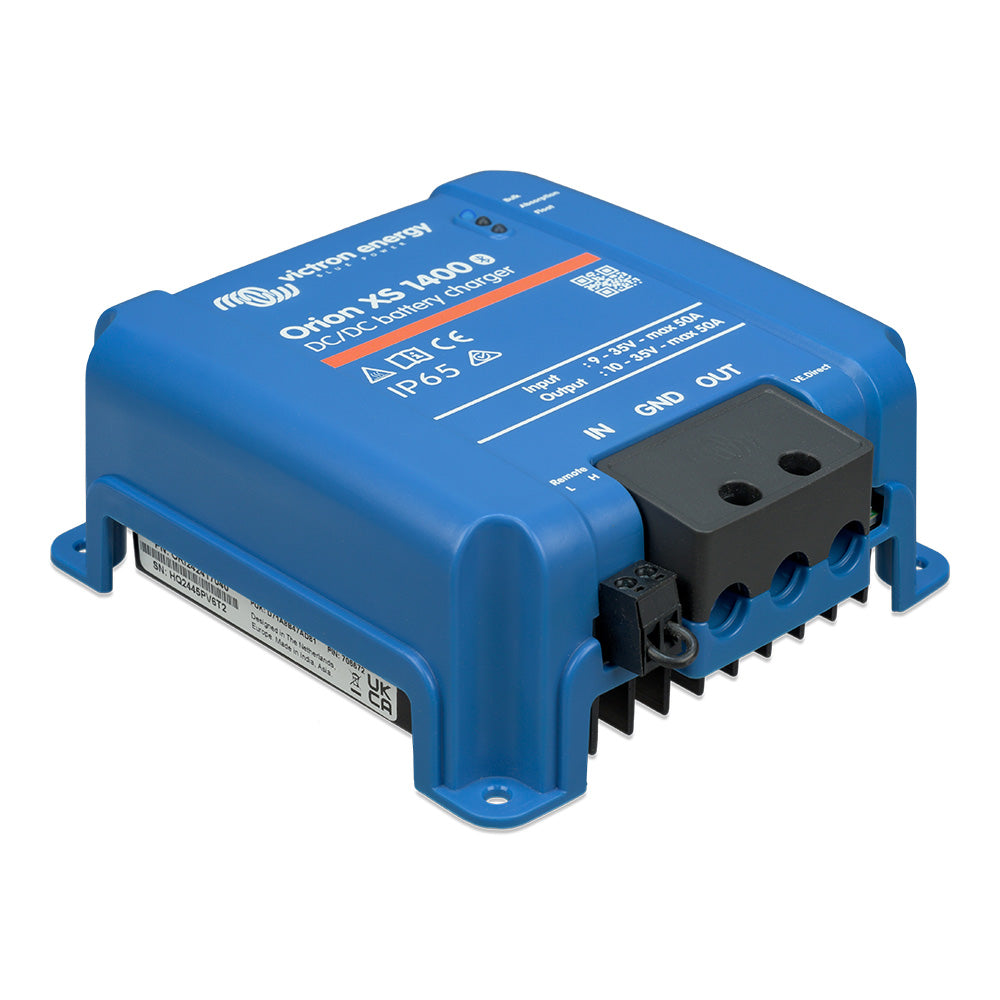

Victron Orion XS 1400 DC-DC Battery Charger
Description
Description
Orion XS 1400 DC-DC Battery Charger
The Orion XS has been engineered from the ground up to redefine DC-DC, battery-to-battery charging. Ideal for dual-battery setups connected to an intelligent alternator, it ensures top-tier performance and optimal system safety in 12V, 24V, or mixed-voltage systems.
Using engine power to charge your house battery or operate as a stable energy supply, the Orion XS can run at full capacity up to 40°C. It allows you to stay in charge with configurable input and output currents, while the 98,5% efficient aluminium circuit board technology keeps things cool without needing fans.
As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.
Features:
- Configurable voltage
- Configurable current
- Engine running detection
- Efficient cooling
- Works with VictronConnect
- Remote monitoring optional
- 5-Year warranty
Specifications
Specifications
Identification
| MPN | ORI242417040 |
|---|---|
| Barcode | 8719076064848 |
Electrical
| Input Voltage Range | 9 - 35V DC |
|---|---|
| Output Voltage Adjustable Range | 10 - 35V DC |
| Output Voltage Tolerance | ± 0.25% (max) |
| Current Setting Range | 1 - 50A |
| Continuous Output Power @ 40°C | 1400W |
| Maximum Efficiency | 98.5% |
| No-Load Current Draw | < 100mA |
| Standby Current Draw | < 1.5mA |
Wireless
| Connectivity | VE.Direct port, VE.Smart Networking, Bluetooth via VictronConnect app |
|---|
Physical
| Dimensions (HxWxD) | 138.1 x 124.4 x 53mm |
|---|---|
| Weight | 0.52kg |
| Connector Type | Screw terminals (max 4AWG / 21.2mm²) |
| Enclosure | IP65 |
| Operating Temperature | -20 to +60°C (derates 1.5%/°C above 40°C) |
