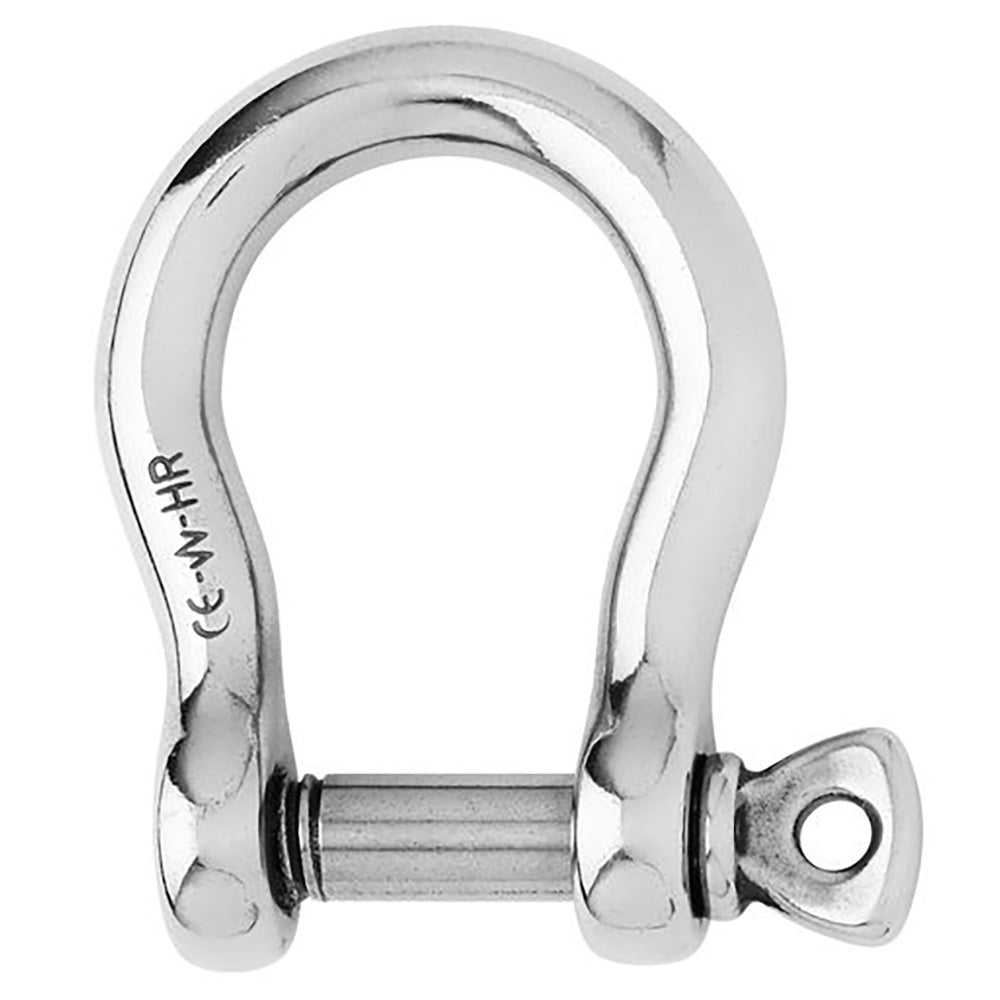

HR Bow Shackle - 14mm Diameter - 35/64"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications
Specifications
Identification
| MPN | 11240W |
|---|---|
| Barcode | 3587790112405 |

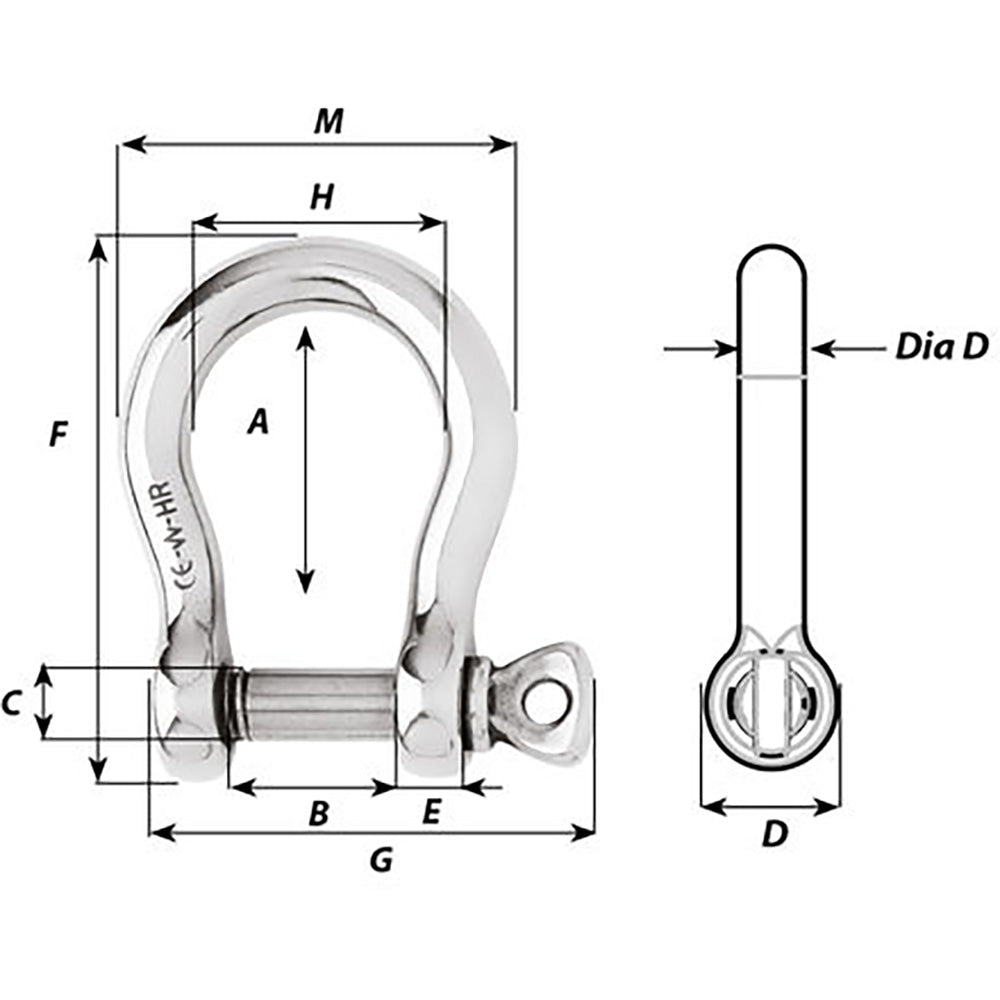

Dimensions:
| A | (inch) 2 31/64" / (mm) 63 |
|---|---|
| B | (inch) 1 7/64" / (mm) 28 |
| C | (inch) 35/64" / (mm) 14 |
| D | (inch) 1 7/64" / (mm) 28 |
| D diameter | (inch) 35/64" / (mm) 14 |
| E | (inch) 33/64" / (mm) 13 |
| M | (inch) 2 53/64" / (mm) 72 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Note 1 | High Resistance (HR) |
