SKU:
WIC/1222W
Sale price
$2508
Regular price
$2950
Unit price
Description
Description

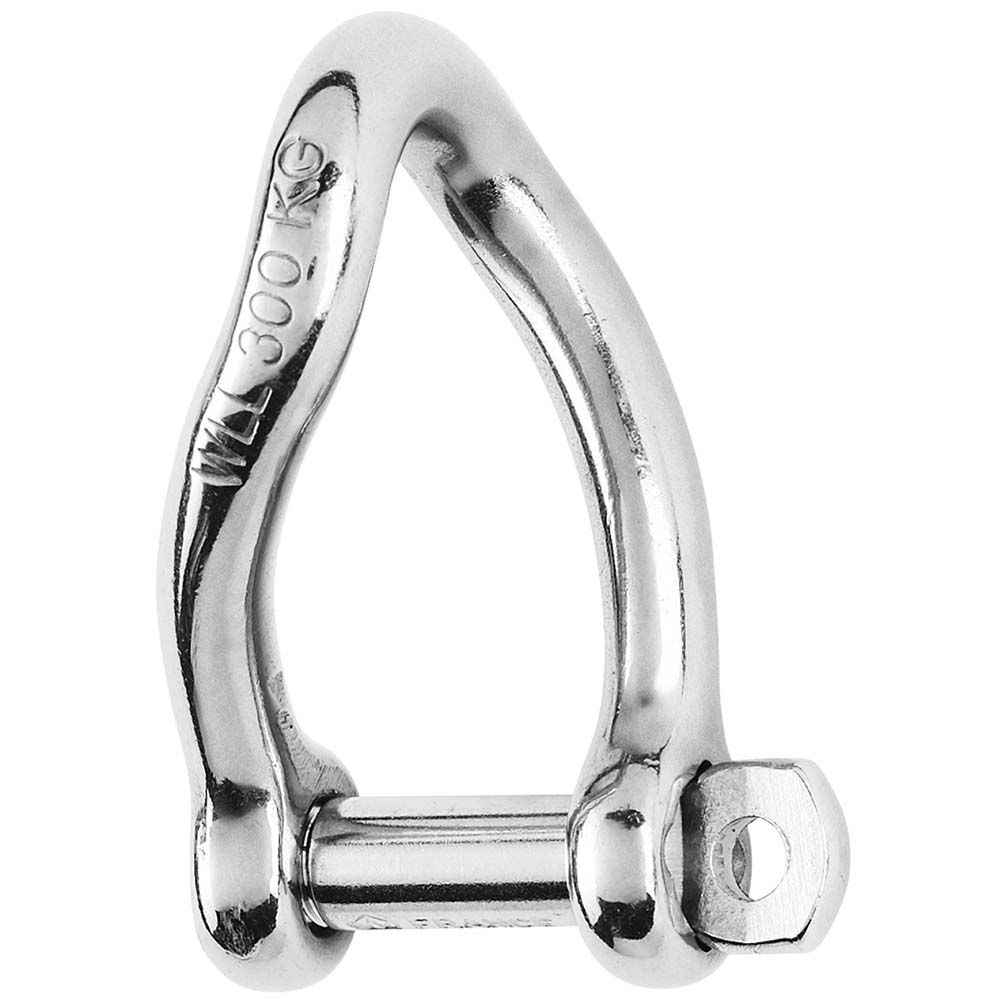

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications
Specifications
Identification
| MPN | 1222W |
|---|---|
| Barcode | 3587790012224 |

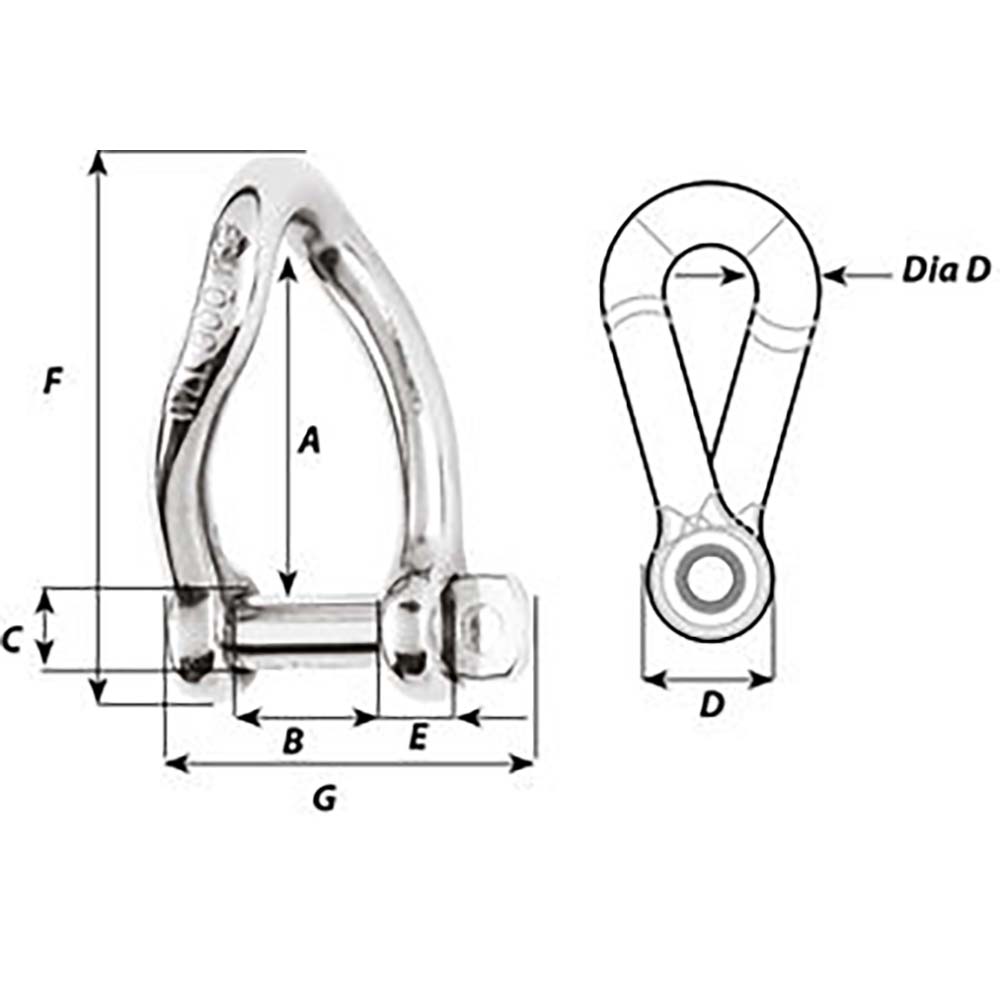

Dimensions (see 2nd image):
| Note 1 | A (inch) 1-1/32" |
|---|---|
| Note 2 | B (inch) 25/64" |
| Note 3 | C (inch) 13/64" |
| Note 4 | D (inch) 25/64" |
| Note 5 | D diameter (inch) 13/64" |
| Note 6 | E (inch) 5/32" |
| Note 7 | F (inch) 1-1/2" |
| Note 8 | H (inch) 1-1/32" |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
