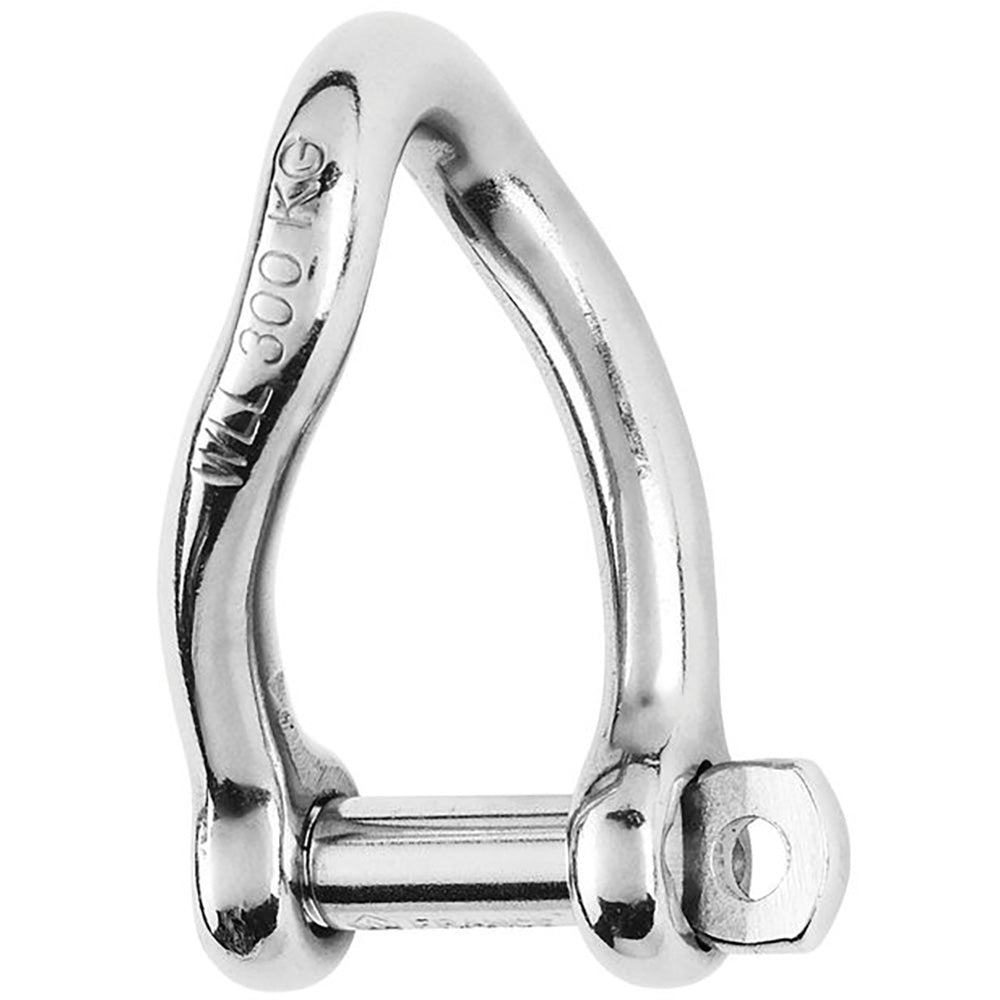

Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32"
Sale price
$7104
Regular price
$8358
Unit price
SKU:
WIC/1225W
Sale price
$7104
Regular price
$8358
Unit price
Description
Description
Self-Locking Twisted Shackle - Diameter 10mm - 13/32"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for applications where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications
Specifications
Identification
| MPN | 1225W |
|---|---|
| Barcode | 768536012255 |

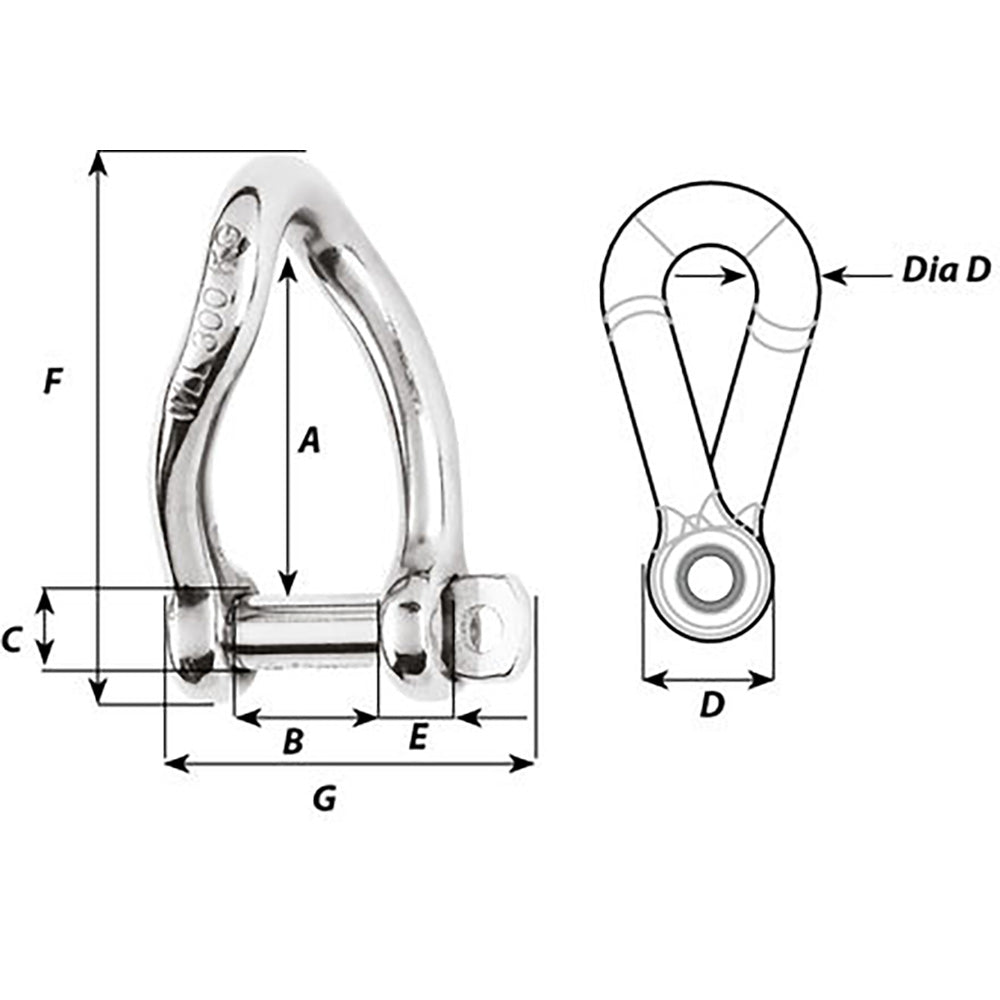

Dimensions:
| A | (inch) 1 31/32" / (mm) 50 |
|---|---|
| B | (inch) 25/32" / (mm) 20 |
| C | (inch) 25/64" / (mm) 10 |
| D | (inch) 3/4" / (mm) 19 |
| D diameter | (inch) 25/64" / (mm) 10 |
| E | (inch) 23/64" / (mm) 9 |
| F | (inch) 2 29/32" / (mm) 74 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
