Wichard Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm...
Sale price
$2547
Regular price
$2997
Unit price
SKU:
WIC/65321W
Sale price
$2547
Regular price
$2997
Unit price
Description
Description

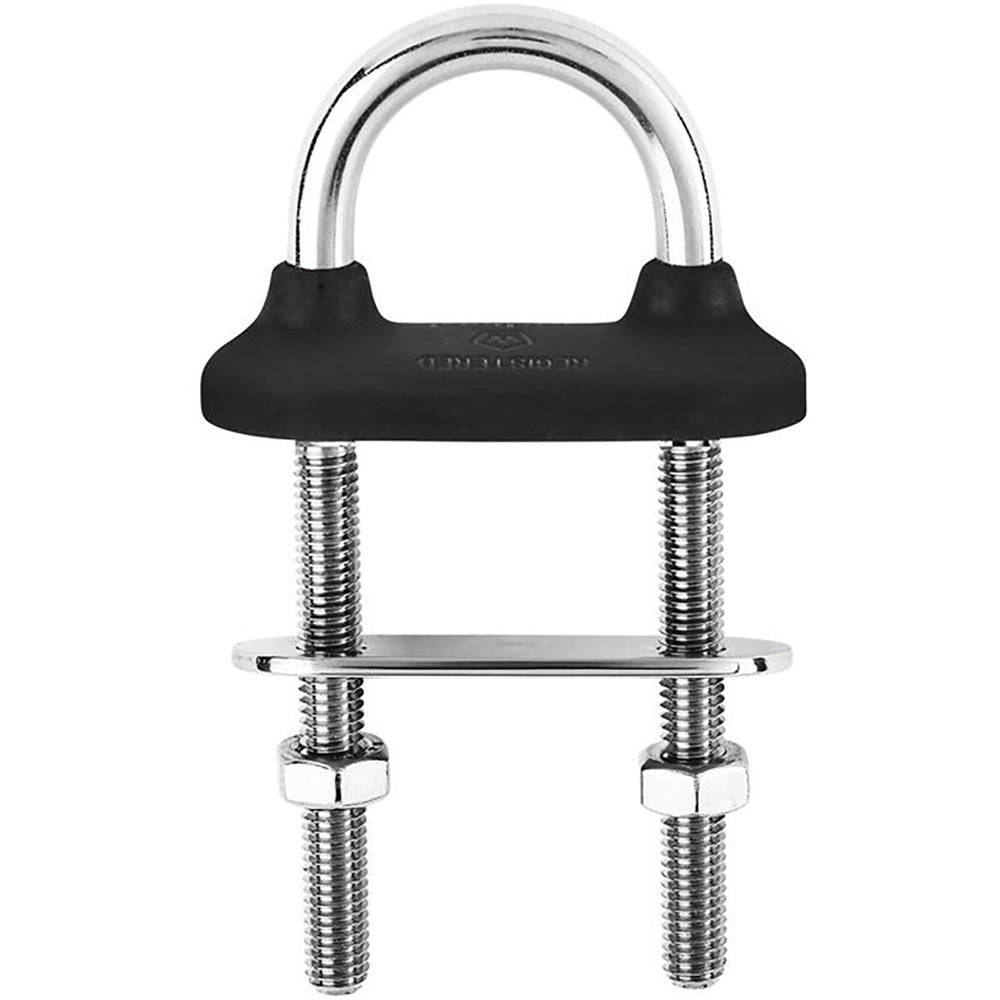

Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
Applications:
Specifications:
Dimensions:
Caption:
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Specifications
Specifications
Identification
| MPN | 65321W |
|---|---|
| Barcode | 3587790653212 |
General
| Max tightening torque | 4.5 nm |
|---|---|
| Working load | (lb) 1410 / (kg) 640 |
| Breaking load | (lb) 4400 / (kg) 2000 |
| A | (inch) 1 7/64" / (mm) 28 |
| B | (inch) 53/64" / (mm) 21 |
| C | (inch) 1 3/16" / (mm) 30 |
| Working Load (WL) | For nautical applications |
Control & Connectivity
| Various fastening applications | shrouds, lifelines, blocks… |
|---|
Physical
| Materials | 316L stainless steel grade |
|---|---|
| Color | Black |
| Weight | (lb) 0.077 / (g) 35 |
| Length | (inch) 2 23/64" / (mm) 60 |
| D diameter | (inch) 13/64" / (mm) 5 |
