Wichard Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm...
Sale price
$4611
Regular price
$5425
Unit price
SKU:
WIC/65441W
Sale price
$4611
Regular price
$5425
Unit price
Description
Description

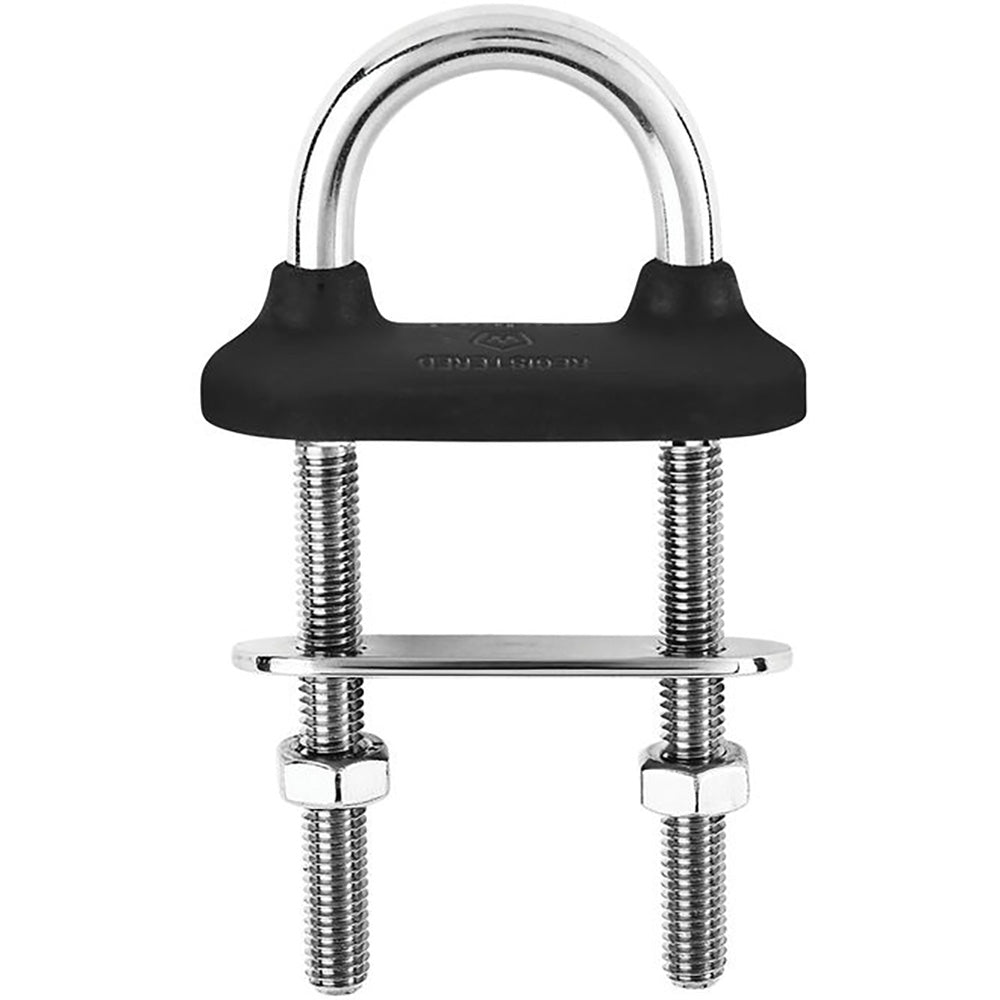

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
Applications:
Specifications:
Dimensions:
- B; (inch) 63/64" / (mm) 25
Caption:
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Specifications
Specifications
Identification
| MPN | 65441W |
|---|---|
| Barcode | 358779065448 |
General
| Max tightening torque | 18 nm |
|---|---|
| Working load | (lb) 5290 / (kg) 2400 |
| Breaking load | (lb) 10580 / (kg) 4800 |
| A | (inch) 1 27/64" / (mm) 36 |
| C | (inch) 2 23/64" / (mm) 60 |
| Working Load (WL) | For nautical applications |
Control & Connectivity
| Various fastening applications | shrouds, lifelines, blocks… |
|---|
Physical
| Materials | 316L stainless steel grade |
|---|---|
| Color | Black |
| Weight | (lb) 0.3 / (g) 136 |
| Length | (inch) 3 15/16" / (mm) 100 |
| D diameter | (inch) 5/16" / (mm) 8 |
