Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter
Sale price
$7453
Regular price
$8768
Unit price
SKU:
WIC/91433W
Sale price
$7453
Regular price
$8768
Unit price
Description
Description

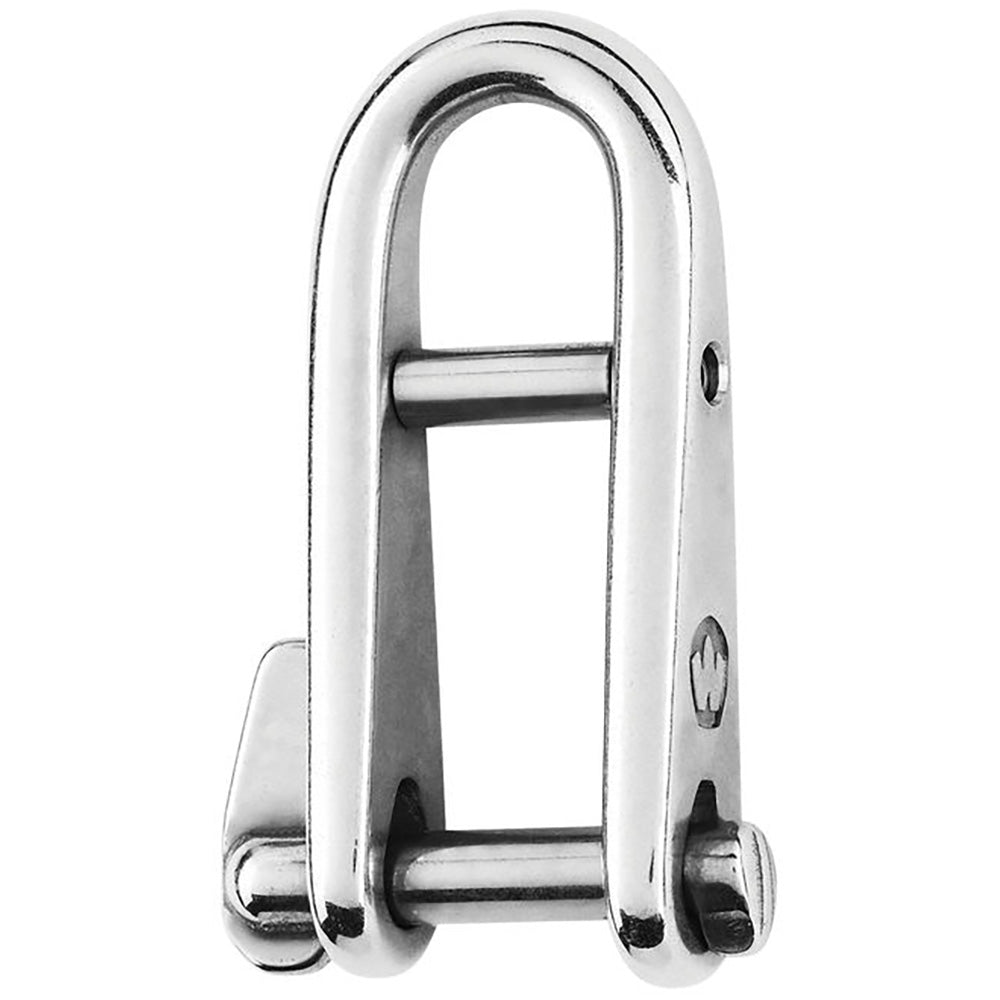

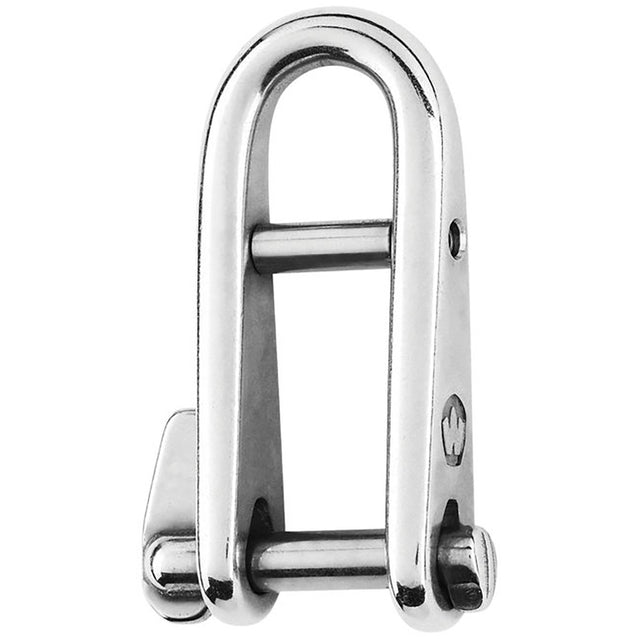

HR Key Pin Shackle With Bar - 6mm Pin Diameter
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- CE marking
Applications:
- Applications requesting high loads
- Perfect product for halyards or applications requiring opening/closing the shackle often
- Do not use it for mooring applications
Specifications:

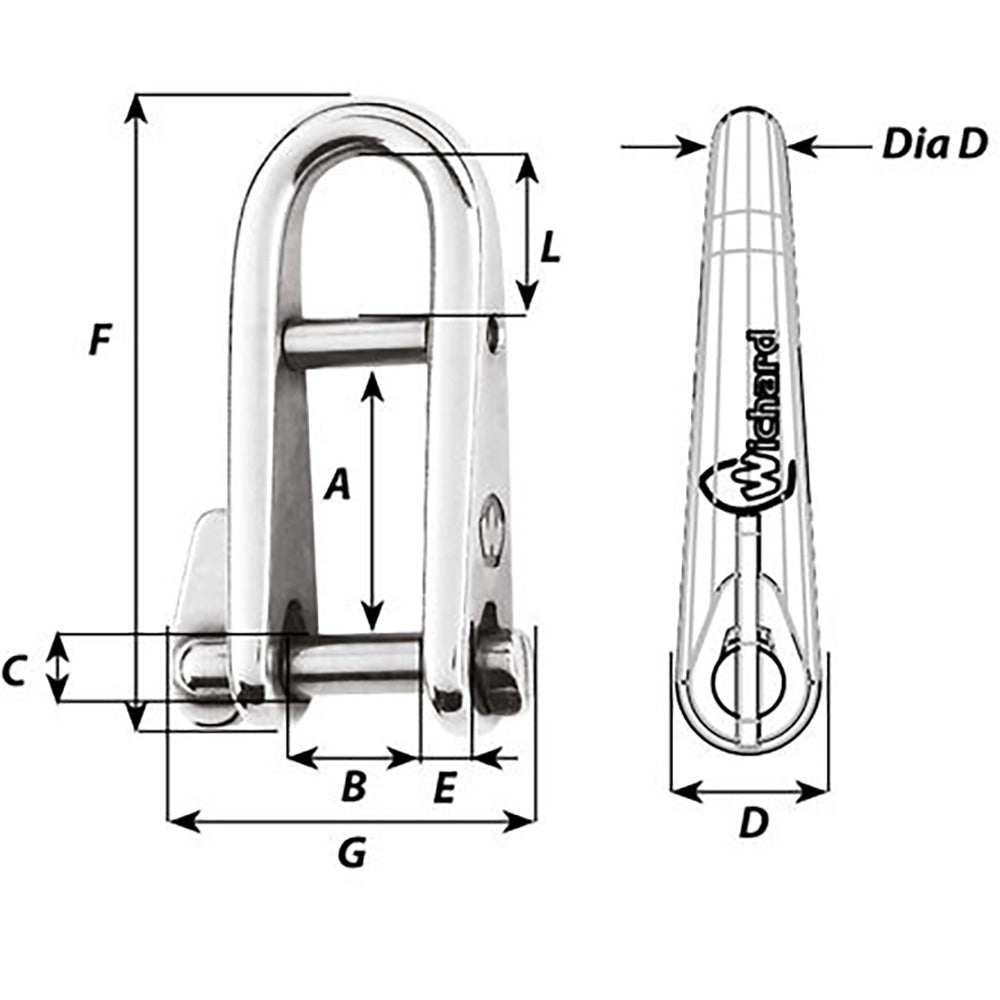

Dimensions:
Caption:
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Specifications
Specifications
Identification
| MPN | 91433W |
|---|---|
| Barcode | 768536028539 |
General
| WLL | only for industrial applications (lifting i.e…) |
|---|---|
| Working load | (lb) 1320 / (kg) 600 |
| Breaking load | (lb) 4850 / (kg) 2200 |
| A | (inch) 1 49/64" / (mm) 45 |
| B | (inch) 5/8" / (mm) 16 |
| C | (inch) 15/64" / (mm) 6 |
| D | (inch) 33/64" / (mm) 13 |
| E | (inch) 5/32" / (mm) 4 |
| F | (inch) 2 23/64" / (mm) 60 |
| G | (inch) 1 29/64" / (mm) 37 |
| L | (inch) 19/32" / (mm) 15 |
| Working Load (WL) | For nautical applications |
Physical
| Materials | HR 17.4 PH stainless steel grade |
|---|---|
| Weight | (lb) 0.117 / (g) 53 |
