Xantrex Freedom SW2012 12V 2000W Inverter/Charger
Regular price
$2,93634
Unit price
SKU:
XAN/815-2012
Regular price
$2,93634
Unit price
Description
Description
Xantrex Freedon SW2012 Inverter/Charger
815-2012
12V, 2000W - 120 Vac / 60 Hz
Powerful. Configurable. Versatile...
The Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.
Product Description
The second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.
PARALLEL AND SERIES STACKING
Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2
2 AC source must be split phase, requires Stacking Cable (part# 808-9005)
Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.
Product Features
3When used with the remote panel
4Sold separately
Protection Features
815-2012
12V, 2000W - 120 Vac / 60 Hz
Powerful. Configurable. Versatile...
The Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.
Product Description
The second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.
PARALLEL AND SERIES STACKING
Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2
2 AC source must be split phase, requires Stacking Cable (part# 808-9005)
Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.
Product Features
3When used with the remote panel
4Sold separately
Protection Features
- Battery over-voltage and under-voltage protection
- Over-temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Integrated, resettable AC breakers
Specifications
Specifications
Identification
| MPN | 815-2012 |
|---|---|
| Barcode | 715535917036 |
Electrical
| Pure sine wave output to operate sensitive electronics Advanced configuration options for customized applications Parallel and series stacking capability Built-in transfer switch automatically transfers between inverter power and incoming AC powerPower factor corrected, multi-stage charger for fast, efficient chargingTemperature compensated charging for a vareity of climate conditionsIgnition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3Wide operating temperature range | -4°F to 140°F (-20°C to 60°C)Conformal coated circuit boards for humid environmentsDual input / Dual output AC interface for 3000 W modelAbility to charge batteries drained to extremely low voltage Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915) |
|---|
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to
Xantrex
Xantrex 25' Network Cable f/SCP Remote Panel
809-0940
Low stock
(8)
Regular price
$3593
Unit price
Xantrex
Xantrex 75' Network Cable f/SCP Remote Panel
809-0942
Low stock
(6)
Regular price
$5390
Unit price
Xantrex
Xantrex Automatic Generator Start SW2012 SW3012 Requires SCP
809-0915
Low stock
(5)
Regular price
$27849
Unit price
Xantrex

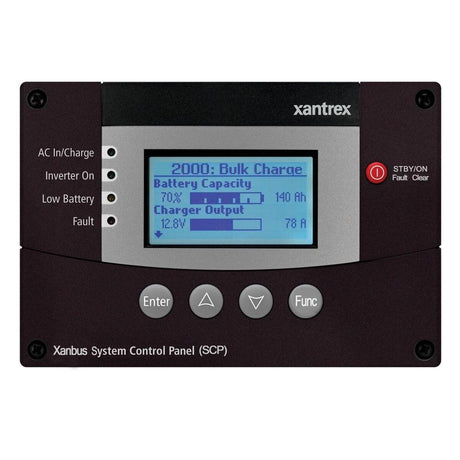

Xantrex Xanbus System Control Panel (SCP) f/Freedom SW2012/3012
