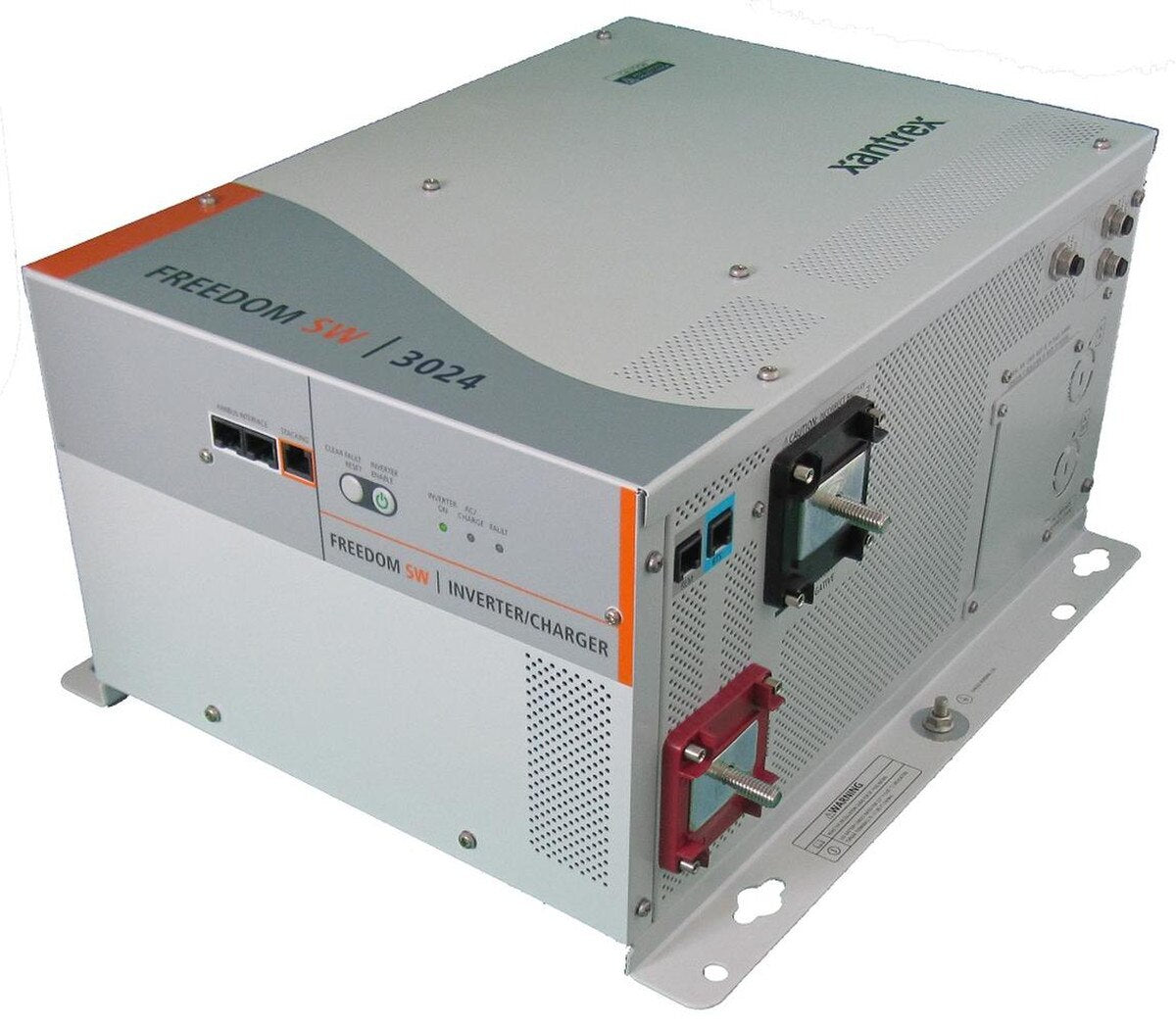

Freedom SW3024 Inverter/Charger - 3000w

The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.

The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.

The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.

• Pure sine wave output in two 24-volt
• Parallel stacking capability to double the inverter power output
• Series stacking capability enables operation of 240 Vac applications
• Advanced configuration options for customized applications*
• Built-in transfer switch automatically transfers between inverter power and incoming AC power
• Power factor corrected, multi-stage charger for fast, efficient charging
• Temperature compensated charging for a vareity of climate conditions
• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power**
• Wide operating temperature range
• Conformal coated circuit boards for humid environments
• Dual input / Dual output AC interface (3000W model)
• Compatible with the Xantrex Automatic Generator Start*** (Part# 809-0915)
• Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements

*A System Control Panel is required for all system configuration and setup

**When used with the remote panel

***Sold separately

In The Box:

Freedom SW 3000
Battery Temperature Sensor (BTS)
DC terminal covers (one red, one black) with two sets of #6-32 screws
Two Xanbus network terminators
Two sets of 5/16 in-18 nuts and washers for the DC terminals
Owner's and Installation Guides

Package Dimensions:

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
