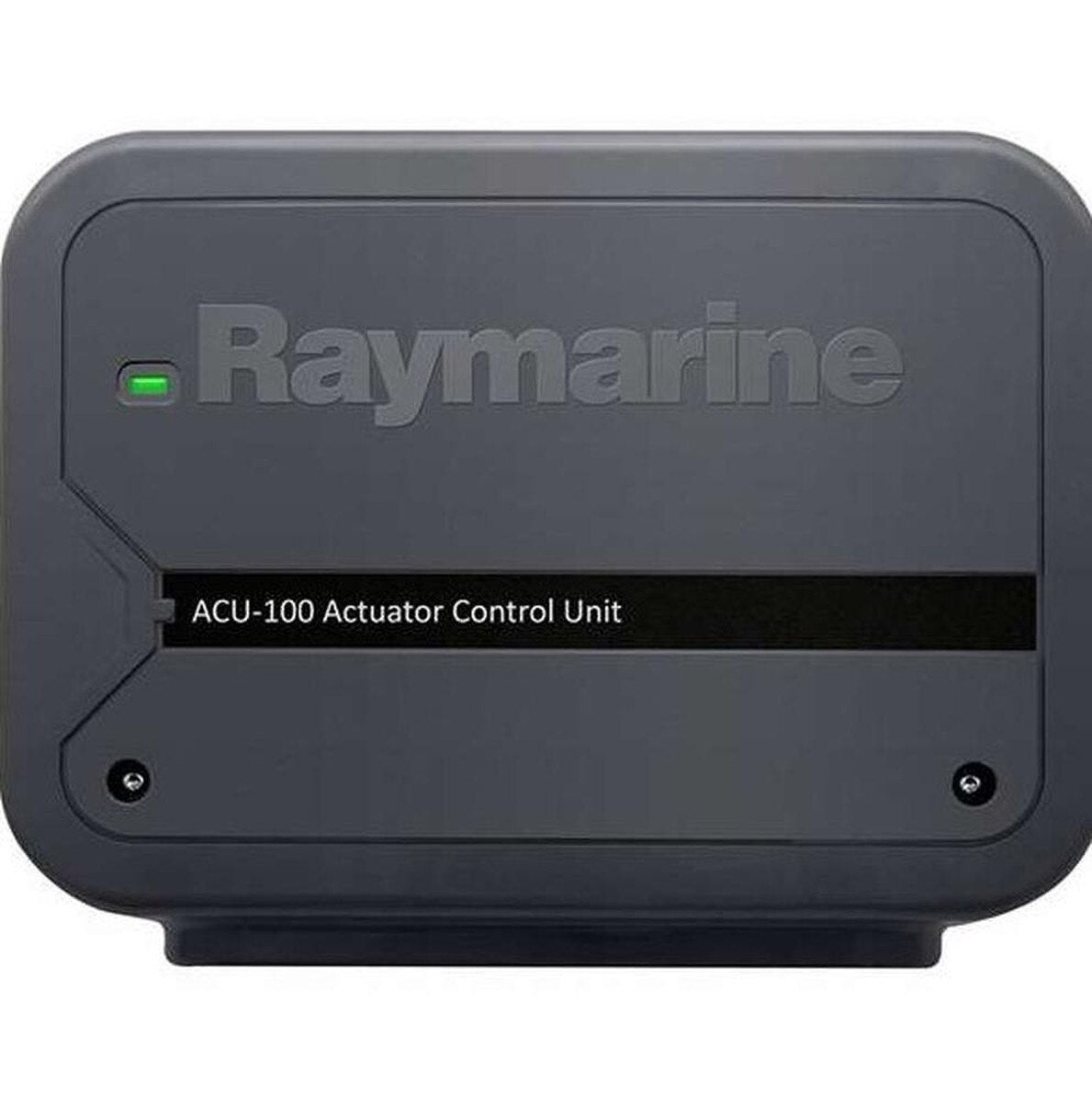

Raymarine ACU-100 Actuator Control Unit

SKU: RAY/E70098

$649⁹⁹

Same-Day Shipping Checking cutoff…

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections

Rudder reference sensor
Power
Drive motor
Ground

Nominal supply voltage
12 V
Operating voltage range
10.8V to 15.6V dc
Power Consumption (standby) - Main Power Supply
300 mA (12V)
Power Consumption (standby) - SeaTalk^ng Power Supply
No power supply to SeaTalk^ng
SeaTalk^ng LEN (Load Equivalency Number)
1
SeaTalk^ng Power Out
No power supply to SeaTalk^ng
Data Connections
SeaTalk^ng

Installation Environment

Waterproof rating

Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
Weight
0.6 kg (1.32lbs)

Conformance

Specifications

Identification

MPN	E70098
Barcode	723193768907

Performance

Operating Temperature	-20°C to +55°C (-4°F to +131°F)Storage Temperature: -30°C to +70°C (-22°F to +158°F)Relative Humidity: MAX 93%

General

Connector Panel	IPX2Drive Electronics: IPX6
Europe	2004/108/ECAustralia and New Zealand: C-Tick, Compliance Level 2

Reviews (0)

In The Box

In The Box:

ACU Unit
Hardware
SeaTalkNG Spur Cable (1m)
Documentation

Package Dimensions:

12" x 8" x 4"

Available Method:

Ground
2 Day

Support

Installation Guide
