Raymarine  |  SKU: RAY/E70656  |  Barcode: 723193843543

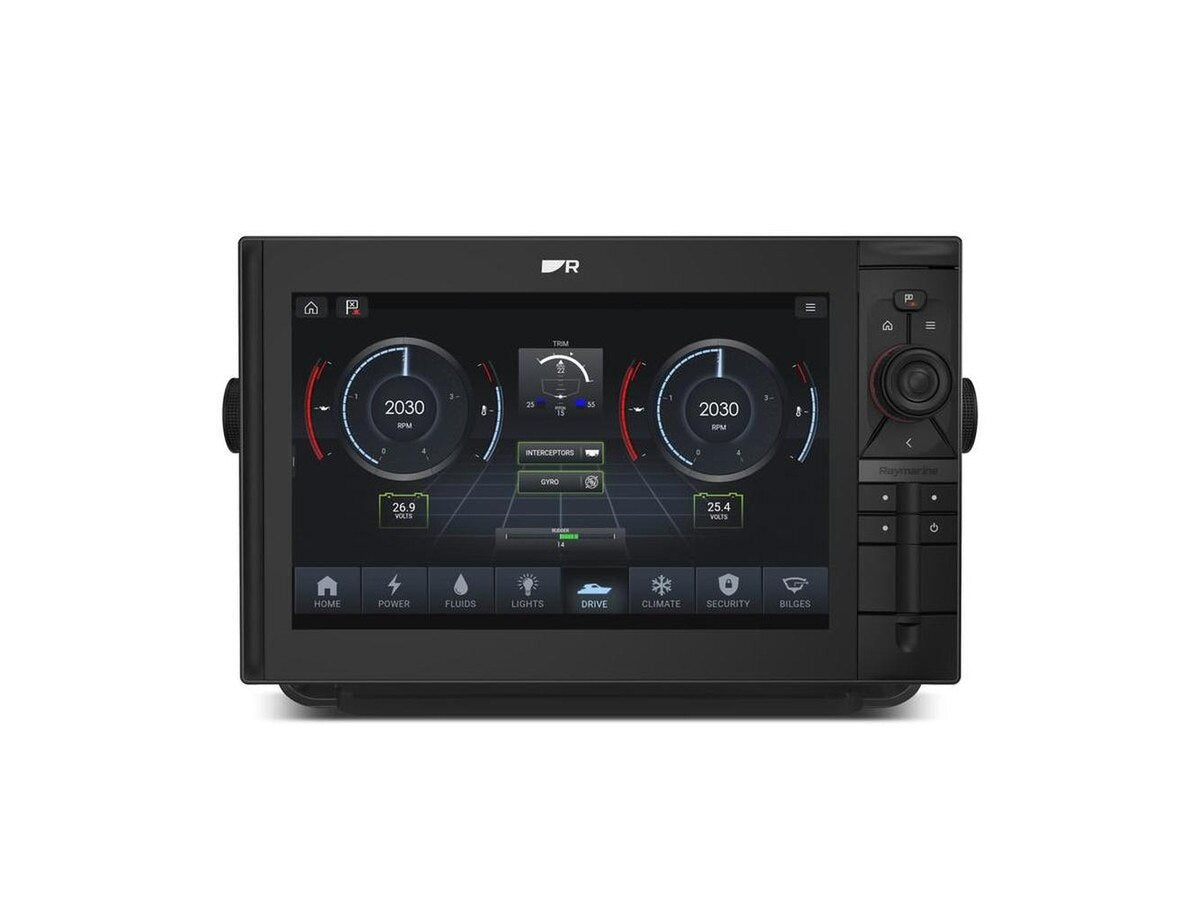

Axiom2 Pro 12 RVM (No Chart)

12" MFD w/ RealVision Max Sonar

Regular price $4,34499
Options

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro RVM chartplotters feature built-in wide-spectrum CHIRP with RealVision MAX technology. RealVision MAX increases your fish-finding game with DownVision, SideVision, and 3D sonar upgraded with increased range, better resolution, and sharper fish targets.

Specifications

  • Product Series
    Axiom2 Pro
  • MPN
    E70656
  • Physical
    Dimensions:
    W: 14.1" (358.03 mm)
    H: 8.77" (222.8 mm)
    D: 9.18" (240.4 mm) (Including Cables)
  • Power
    Input: 8-32v DC
    Draw: 29.88 W @ 12v
    Fuse: 15 A
  • Screen
    Touchscreen: Yes
    Type: LED IPS
    Size: 12.1"
    Resolution: 1280 x 800
  • Connectivity
    Built-In GPS: Yes - 10 Hz
    SD Cards: Yes - microSD (2)
    Wireless: WiFi, Bluetooth
    Network: RayNet (2)
    NMEA 0183: Yes
    NMEA 2000: Yes
    J1939: No
    Analog Video In: Yes (1)
    HDMI In: No
    HDMI Out: Yes (1)
    USB: Yes
    Sonar: Yes - 11pin/25pin RVM
  • Built-In Chart
    None
  • IP Rating
    IPx7

Reviews (0)

In The Box

In The Box:

Display unit
User Configurable Keypad
Suncover
Gasket
Trunnion knobs (x 2)
Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
Mounting fixings x4
Documentation
Power/Video/Audio cable 1.5 m (4.92 ft)

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
