Raymarine | SKU: RAY/E92143

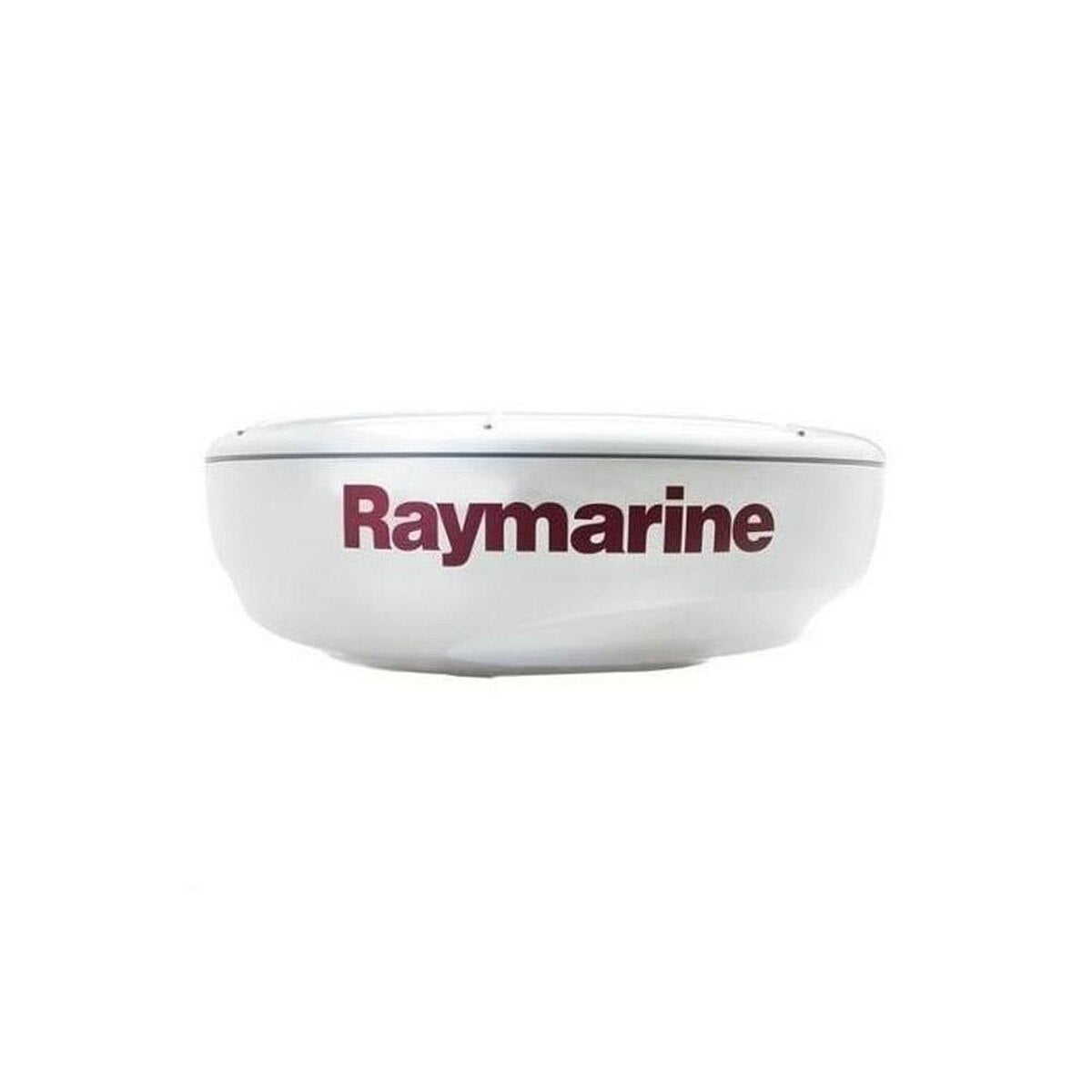

RD424HD - No Cable

Name: RD424HD - No Cable
Brand: Raymarine
SKU: RAY/E92143
Price: 3459.99 USD
Availability: InStock

4Kw 24" HD Dome

$3,459⁹⁹

Options

RD424HD - 10M Cable

4Kw 24" HD Dome w/ 10M Cable

RD424HD - No Cable

4Kw 24" HD Dome

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Raymarine's new HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels.

Compatible with C-Series Widescreen, E-Series Widescreen and G-Series Multifunction displays these radomes offer a 256-color radar display and the clearest, most lifelike radar presentation available from any radome scanner.

Features:

Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
New high speed (48rpm) target tracking
Fast digital receiver processor
256 color multi-level display with selectable color palettes
New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish
Automatic harbor, coastal, offshore and buoy operating modes
Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display

Specifications

Product Series

HD
MPN

E92143
Physical

Dimensions:
Dia: 25.67" (652 mm)
H: 9.7" (247 mm)
Weight: 22 lbs (10 kg)
Power

Input: 10.8-33v DC
Standby Draw: 25 W
Transmit Draw: 60 W
Radar

Type: Magnetron
Power: 4 kW
Beam Width: 3.9° x 25°
RPM: 24 (48 with compatible displays)
Max Range: 48 nm
IP Rating

IPx6

Reviews (0)

In The Box

In The Box:

Radome
Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Raymarine

Extension Cable - Digital Domes (10m)

A55081D

Low stock (2)

$234⁹⁹

Raymarine

Extension Cable - Digital Domes (2.5m)

A92141D

Out of stock

$104⁹⁹

Raymarine

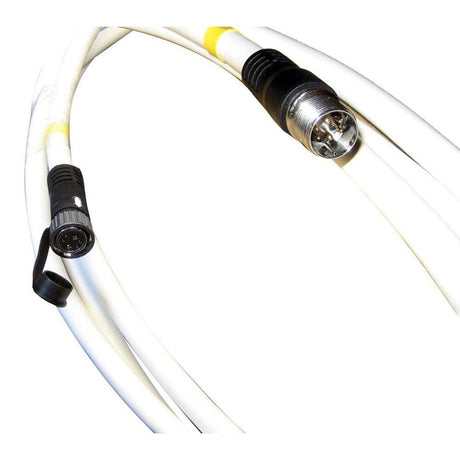

Extension Cable - Digital Radar Domes (5m)

A55080D

Out of stock

$179⁹⁹

Raymarine

Power/Data Cable - Digital Domes (15m)

A55078D

Out of stock

$269⁹⁹

Raymarine

Power/Data Cable - Digital Domes (25m)

A55079D

Out of stock

$409⁹⁹

Raymarine

Power/Data Cable - Digital Domes (5m)

A55076D

Out of stock

$164⁹⁹

Raymarine

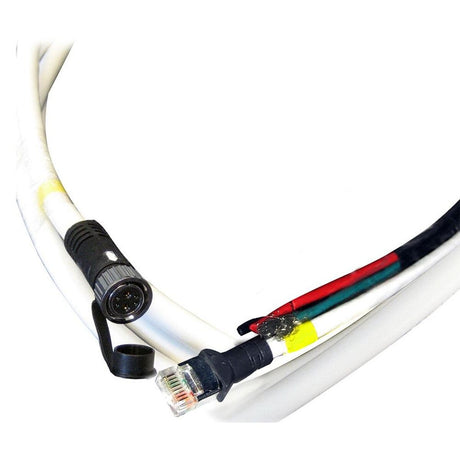

Power/Data Cable - Digital Radars (10m)

A55077D

Very low stock (1)

$234⁹⁹

Raymarine

Power/Data Cable w/ RayNet Cable - Digital Radars (25m)

A80230

In stock (4)

$409⁹⁹

Raymarine

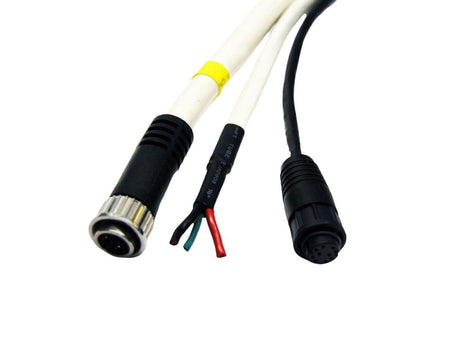

Power/Data Cable w/ RayNet Connector - Digital Radars (10m)
