Raymarine  |  SKU: RAY/E70635  |  Barcode: 723193836897

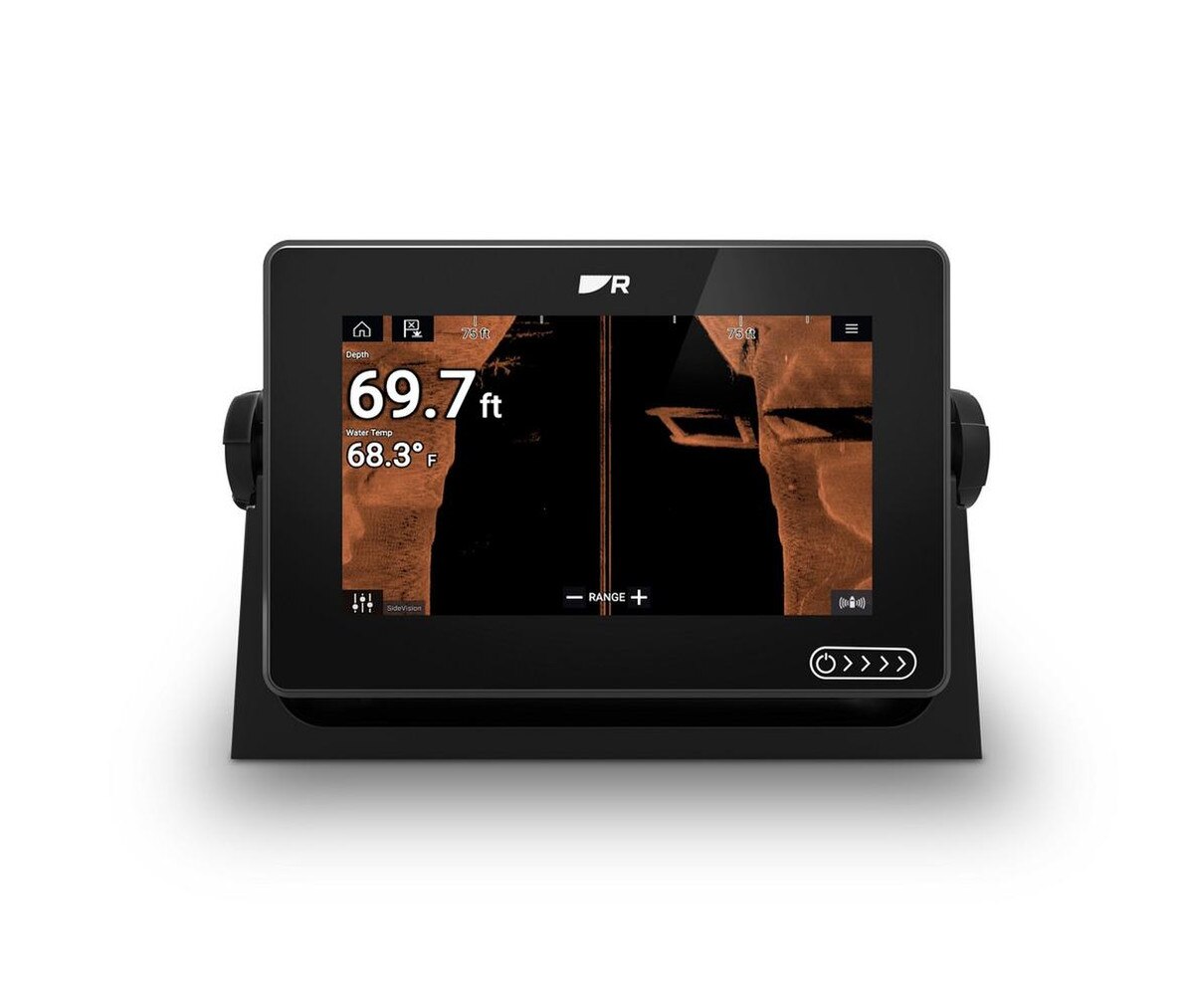

Axiom+ 7RV (No Chart)

12" MFD w/ RealVision Sonar

$1,09999
Options
Axiom+ 7 (No Chart)
Axiom+ 7 (No Chart)
7" MFD
Axiom+ 7RV (No Chart)
Axiom+ 7RV (No Chart)
12" MFD w/ RealVision Sonar
Axiom+ 7 (No Chart) Axiom+ 7 (No Chart) 7" MFD Axiom+ 7RV (No Chart) Axiom+ 7RV (No Chart) 12" MFD w/ RealVision Sonar

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Axiom+ RV models are the perfect all-in-one chartplotter fishfinder combo for confident navigation, stunning sonar imagery, and endless expandability. Available in 7, 9 or 12 inch display sizes, Axiom+ RV is a great choice for inshore and coastal fishing boats. Choose Axiom+ RV bundled with LightHouse Charts for reliable navigation and superior chart quality.  Each Axiom+ RV model comes equipped with RealVision technology, giving you 4 CHIRP sonar channels and ensuring you miss none of the action below.

Specifications
  • Product Series
    Axiom+
  • MPN
    E70635
  • Physical
    Dimensions:
    W: 7.92" (201.1 mm)
    H: 5.24" (133 mm)
    D: 8.58" (218 mm)
  • Power
    Input: 8-16v DC
    Draw: 7.34 W
  • Screen
    Touchscreen: Yes
    Type: WSVGA IPS
    Size: 7"
    Resolution: 1024 x 600
  • Sonar
    Built-In Sonar: Yes
    Port: RV 25pin
    * Requires Adaptor For CPT-S Transducers *
  • Connectivity
    Built-In GPS: Yes - 10 Hz
    SD Cards: Yes - microSD (1)
    Wireless: WiFi, Bluetooth
    Network: RayNet (1)
    NMEA 0183: No
    NMEA 2000: Yes
    J1939: No
    Analog Video In: No
    HDMI In: No
    HDMI Out: No
    USB: Yes
    Sonar: Yes - 25pin RV
  • Built-In Chart
    None
  • IP Rating
    IPx6

Reviews (0)

In The Box

In The Box:

Multifunction Display
Trunnion bracket
Trunnion knobs x 2
Suncover — Trunnion mount
Panel mount gasket for surface/flush mounting
M5x58 Threaded studs x 4
M5 Thumb nuts x 4
Documentation pack
DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
Rear mounting brackets
