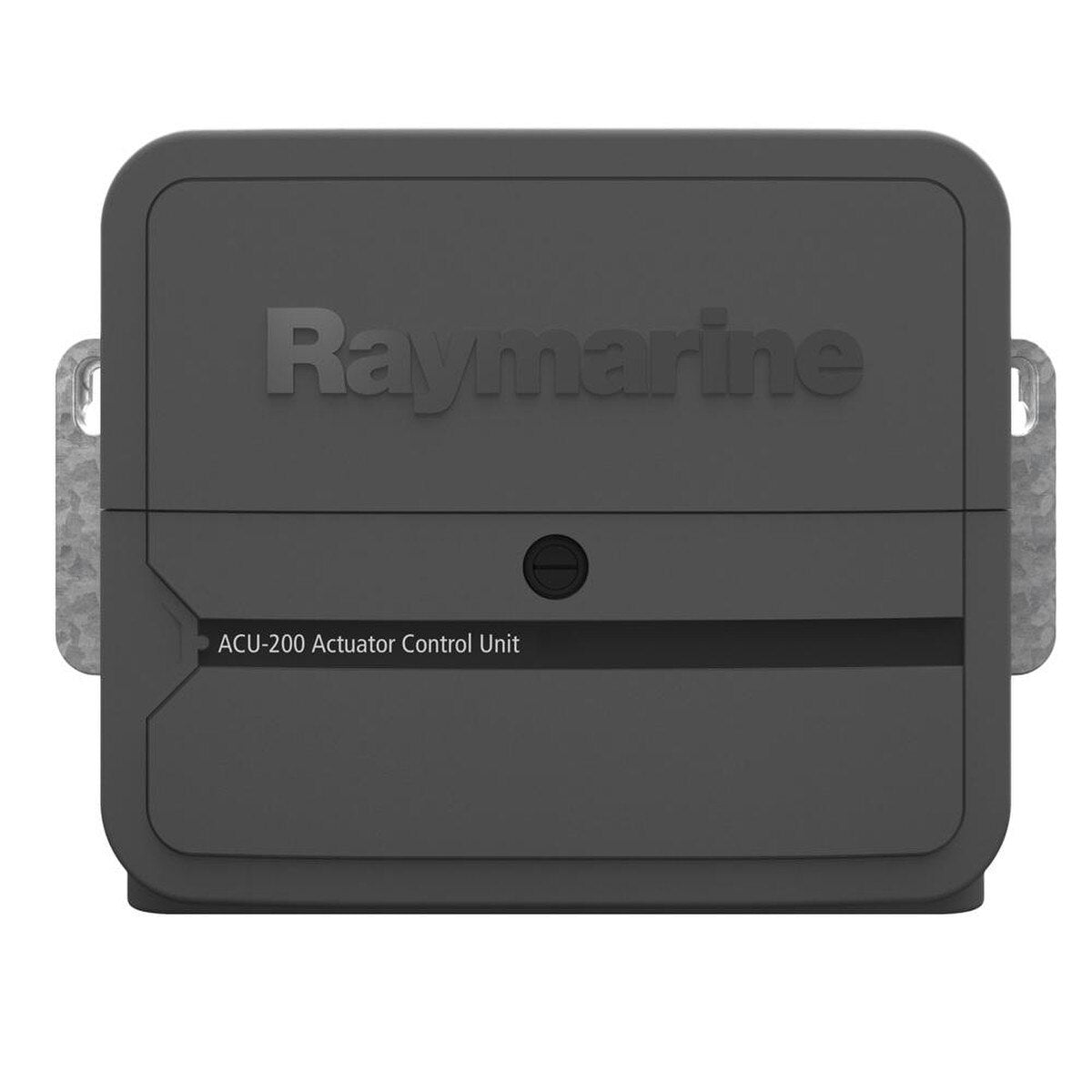

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

SKU: RAY/E70099

$999⁹⁹

Same-Day Shipping Checking cutoff…

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 15 Amps at supply voltage
Drive Clutch Output
Up to 2.0 A continuous, selectable between 12 /24 V

Connections

Includes the M81105 Rotary Rudder Reference
Sleep switch
Power
Drive motor
Drive clutch
Ground

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalk^ng Power Supply
20 mA (12V)
SeaTalk^ng LEN (Load Equivalency Number)
1
SeaTalk^ng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalk^ng

Installation Environment

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance

Specifications

Identification

MPN	E70099
Barcode	723193768914

Performance

Operating Temperature	-20°C to +55°C (-4°F to +131°F)Storage Temperature: -30°C to +70°C (-22°F to +158°F)Relative Humidity: MAX 93%

General

Europe	2004/108/ECAustralia and New Zealand: C-Tick, Compliance Level 2

Reviews (0)

In The Box

In The Box:

ACU Unit
Hardware
Documentation

Package Dimensions:

17" x 11" x 7"

Available Method:

Ground
2 Day

Support

Installation Guide

* ALL WARRANTY IS THROUGH MANUFACTURE *

Raymarine

Raymarine EV-1 Sensor Core

E70096

Low stock (6)

$899⁹⁹

Raymarine

Raymarine P70Rs Autopilot Controller w/Rotary Knob

E70329

Low stock (7)

$749⁹⁹

Raymarine

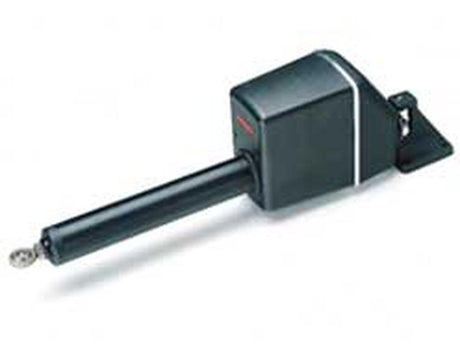

Raymarine Type 1 Linear Drive - 12V

M81130

Very low stock (3)

$2,374⁹⁹

Raymarine

Raymarine Type 1 Pump 12V

M81120

Very low stock (2)

$1,099⁹⁹

Raymarine

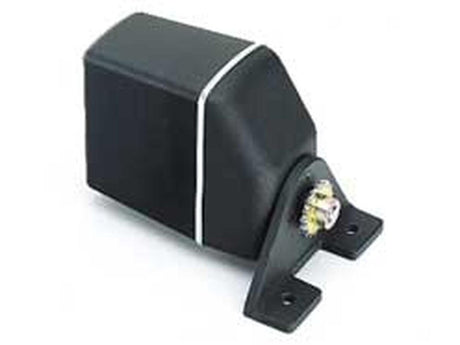

Raymarine Type 1 Rotary Drive - 12V
