Raymarine | SKU: RAY/E70100 | Barcode: 723193768921

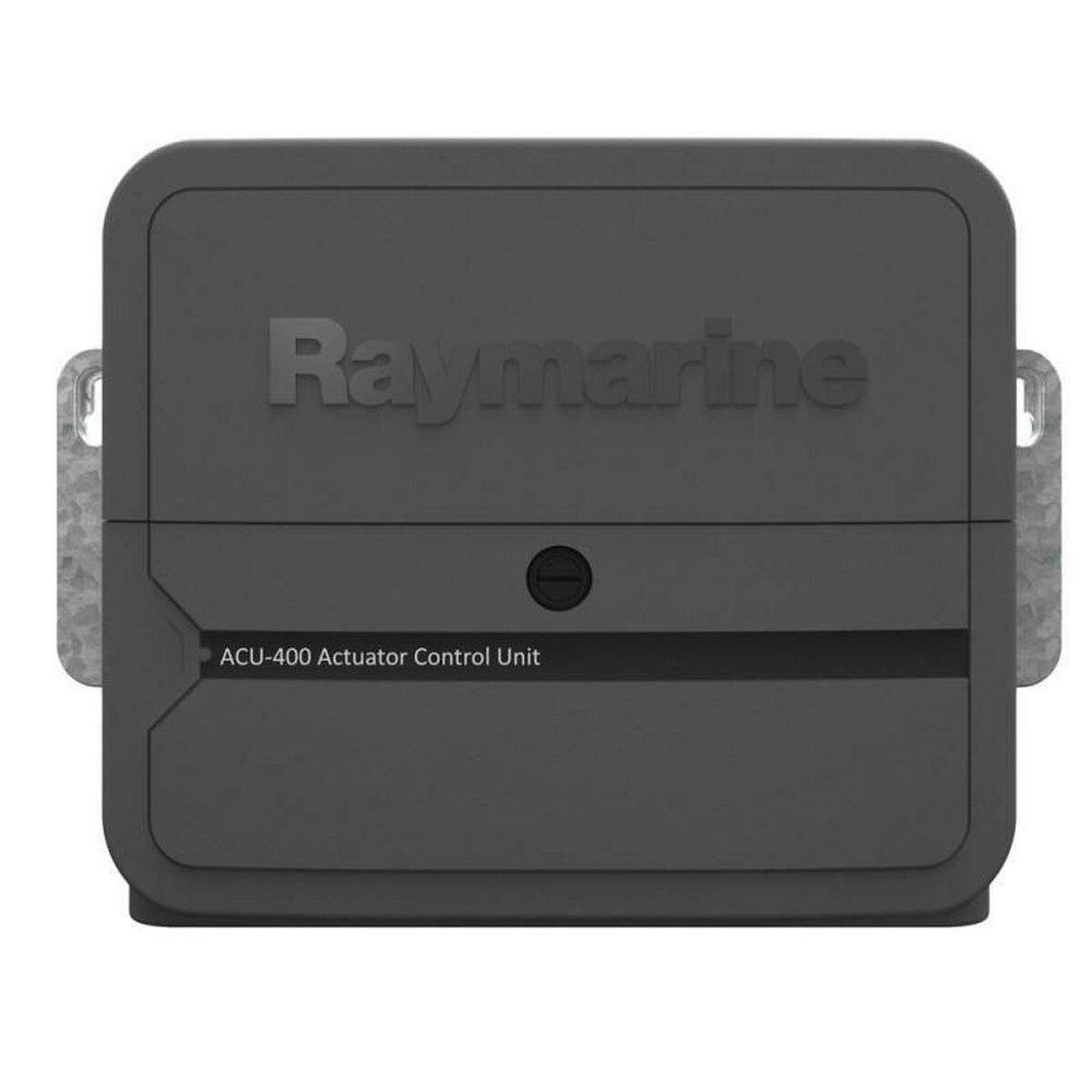

ACU-400

Name: ACU-400
Brand: Raymarine
SKU: RAY/E70100
Price: 2299.99 USD
Availability: InStock

Type 2/3 Hydraulic/Linear/Rotary Drive Actuator Control Unit

$2,299⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The ACU-400 (Actuator Control Unit) is a key component for Evolution autopilot systems. The ACU-400 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Combine with an EV-1 sensor, autopilot control head, and Type 2 and Type 3 hydraulic, mechanical linear, hydraulic linear, or mechanical rotary drive a complete autopilot system.

Specifications

Product Series

Evolution
MPN

E70100
Physical

Dimensions:
H: 8.3" (211.5 mm)
W: 11.2" (285 mm)
D: 2.5" (64.5 mm)
Weight: 4.84 lbs (2.2 kg)
Power

Input: 10.8-31.2v DC
Standby Draw: 300 mA @ 12v

Drive Output: 30 A Continuous
Connectivity

SeaTalkNG
IP Rating

Drip Resistant
Temp Range

-20 °C to +55 °C (-4 °F to 131 °F)

Reviews (0)

In The Box

In The Box:

ACU Unit
Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Raymarine

EV1

High Accuracy Heading Sensor

E70096

Low stock (2)

$899⁹⁹

Raymarine

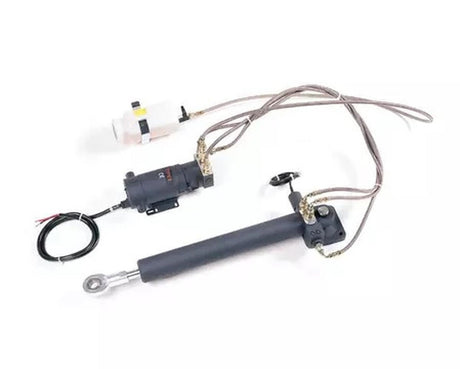

Hydraulic Linear Drive - Type 2 (12v)

E12207

Very low stock (1)

$3,999⁹⁹

Raymarine

P70RS

Autopilot Controller w/ Rotary Knob

E70329

Low stock (2)

$749⁹⁹

Raymarine

P70S

Autopilot Controller

E70328

Low stock (2)

$749⁹⁹

Raymarine

T2 Pump - 12v

M81121

Low stock (2)

$1,299⁹⁹

Raymarine

T2S Linear 12v Mechanical Linear Drive - Short (12v)

M81131

Very low stock (1)

$2,749⁹⁹

Raymarine

T3 Pump - 12v

M81122

In stock (5)

$1,699⁹⁹

Raymarine

Type 2 Linear Mechanical Linear Drive - Long (12v)

M81132

Low stock (2)

$2,839⁹⁹

Raymarine

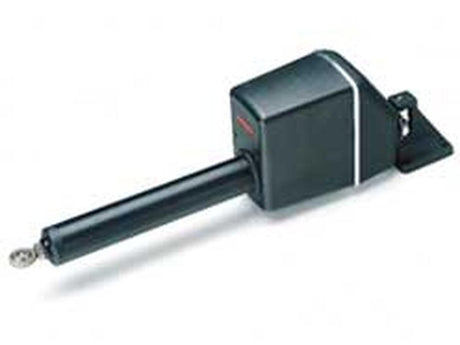

Type 2 Linear Mechanical Linear Drive - Long (24v)

M81134

Very low stock (1)

$2,839⁹⁹

Raymarine

Type 2 Linear Mechanical Linear Drive - Short (24v)

M81133

Very low stock (1)

$2,839⁹⁹

Raymarine

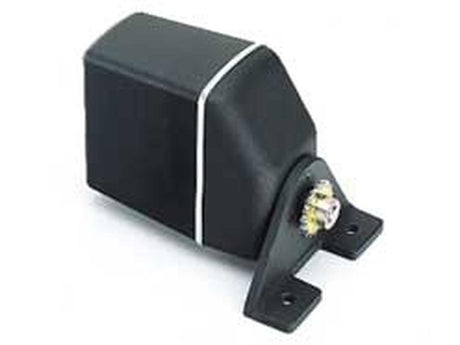

Type 2 Rotary Drive (12v)

M81136

Low stock (2)

$2,699⁹⁹

Raymarine

Type 3 Hydraulic Linear Drive (12v)

M81202

Very low stock (1)

$3,899⁹⁹

Raymarine

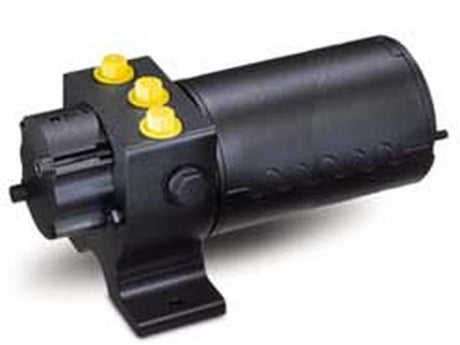

Type 3 Pump (24v)
