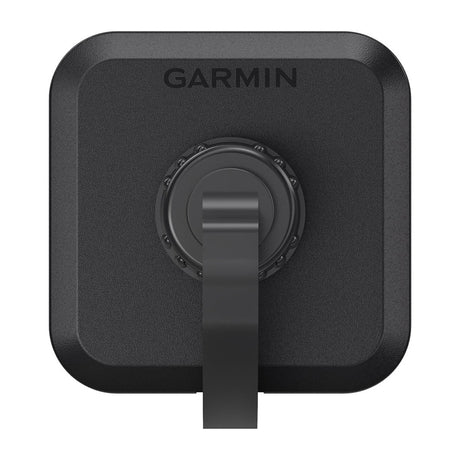

LiveScope™ 2 HD Transducer - LVS42HD
OUR CLEAREST SONAR EVER
See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
- Ultra High-Definition imagery with better target seperation
- No black box needed, so install is easy
- See highly detailed imagery at castable range and bottom track out to 125 feet
- Sonar automatically turns off when the transducer is out of the water
- Wider angles in forward, down and perspective modes
Our Clearest Sonar
See fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.
No Black Box
The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.
Fast Processing
Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.
Integrated Sonsors
Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.
Improved Coverage
Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.
Vivid Color Palettes
When LiveScope 2 HD is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.
Take Control of Your View
- OneVü™ Sonar: Combine LiveScope 2 HD with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view.
- Forward Mode: Scout ahead of your boat to see what’s happening in real time with more coverage.
- Down Mode: Explore a wider live view of the activity directly beneath your boat.
- Perspective Mode: Get an overhead wider-angle perspective of what’s below and around your boat.
Specifications
Specifications
Identification
| MPN | 010-03899-00 |
|---|---|
| Barcode | 753759369101 |
General
| Transducer Beamwidth | Forward: 20° x 165°, Down, Perspective: 20° x 180° |
|---|---|
| Transducer Cable Length | 5.5m (18 ft) |
| Transducer Number of Pins | 7 |
| Dimensions | 5.2" x 5.3" x 1.9" |
| Weight | 3.62 lbs |
| Temperature Range | Operating: 0 C to 40 C |
Electrical Features:
| Power Input | 10-35v |
|---|---|
| Power Usage | 32w max |
| Fuse | 7.5 A |
| Compass-Safe Distance | 4" |
Sonar Features:
| Frequency | 850 kHz - 1600 kHz |
|---|---|
| Transmit Power | 521 W |
| Maximum Depth | Down and Forward: 125' |
| Sonar Type | Live |
| Target Seperation @ 100' | 12.6" |
| Target Seperation @ 30' | 3.8" |
| Perspective Mode Mount Included | yes (adjustable angles) |
| Water Detection Transmit Control | Yes |
Networking & Connections
| Garmin Marine Network Ports | 1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| Power Connection | Yes (2-Wire) |
Physical
| Spy Pole™ Mount | Attach your transducer to your Spy Pole mount to get wireless sonar control independent of your trolling motor. |
|---|
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
Release Date
* ALL WARRANTY IS THROUGH MANUFACTURE *
Garmin
Garmin 10' Extension Cable f/LiveScope™ 2 Series
010-13983-22
Garmin

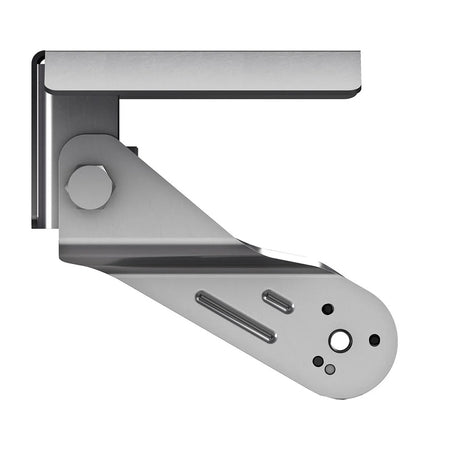

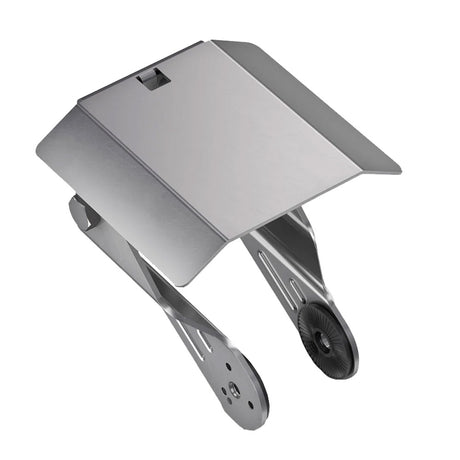

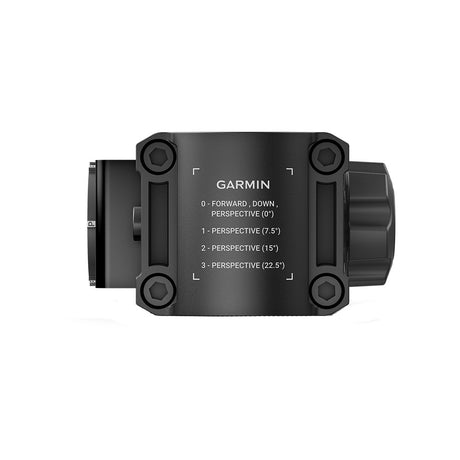

Garmin Adjustable Perspective Bottom Mount for LiveScope™ Transducers
010-13404-70
Garmin
Garmin Adjustable Perspective Shaft Mount for LiveScope™ Transducers
010-13404-41
Garmin
Garmin All-In-One Power/Network Cable f/LiveScope™ 2 HD Ice Fishing Transducer
010-13983-11
Garmin
Garmin BlueNet™ Marine Network Cable - 50'
010-12528-03
Garmin
Garmin BlueNet™ Network Cable 50' (Right Angle)
010-12528-10
Garmin
Garmin BlueNet™ Network Cable 8" (Right Angle)
010-12528-13
Garmin
Garmin BlueNet™ Network Cable Coupler
010-12531-00
Garmin

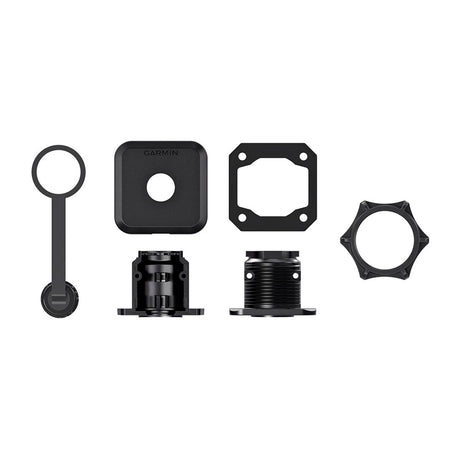

Garmin Bulkhead Connector Kit f/LiveScope™ 2 Transducer Series & 12-Pin Scanning Transducers
010-13983-20
Garmin
Garmin Cable Grommet f/Network Cables
010-10562-00
Garmin

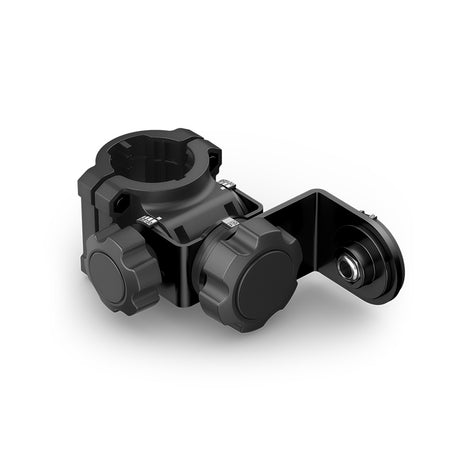

Garmin Force® Kraken LiveScope™ Mounting Bracket
010-12832-70
Garmin
Garmin Marine Network Adapter Cable (Small to Large)
010-12531-01
Garmin
Garmin Marine Network Cable Connector RJ45 - 2-Pack
010-10603-00
Garmin
Garmin Power/Network Cable f/LiveScope™ 2 Transducer Series
010-13983-10
Garmin
Garmin Shaft Mount f/LiveScope™ 2 Transducer Series - 0 Degrees
010-13983-00
Garmin
Garmin Shaft Mount f/LiveScope™ 2 Transducer Series - 8 Degrees
010-13983-01
Garmin
Garmin Split Connector Threaded f/RJ45 Network Cables - 18mm
010-11170-00
Garmin
Garmin Transom Mount f/LiveScope™ 2 Transducer Series
010-13983-04
Garmin
Garmin Trolling Motor Barrel Mount f/LiveScope™ 2 Transducer Series
010-13983-02
Garmin
Garmin Power/Network Cable f/LiveScope™ 2 Transducer Series
010-13983-10
Garmin
Garmin BlueNet™ Marine Network Cable - 50'
010-12528-03
Garmin
Garmin BlueNet™ Network Cable 50' (Right Angle)
010-12528-10
Garmin
Garmin BlueNet™ Network Cable Coupler
010-12531-00
Garmin
Garmin Marine Network Adapter Cable (Small to Large)
010-12531-01
Garmin

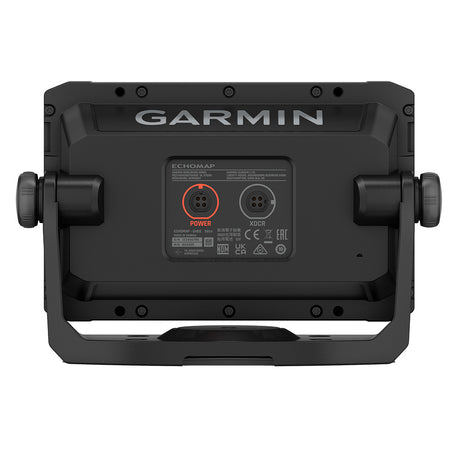

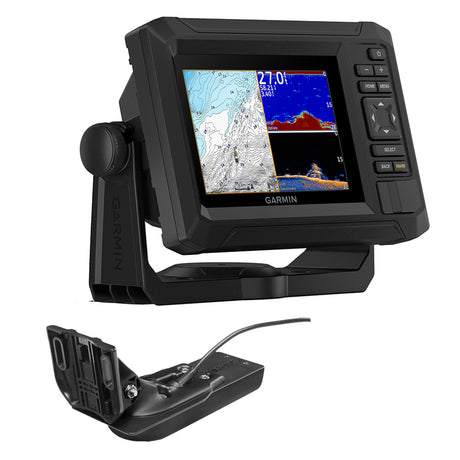

Garmin ECHOMAP™ UHD2 53CV Chartplotter/Fishfinder Combo w/US Inland Maps & GT20-TM
010-02590-51
Garmin

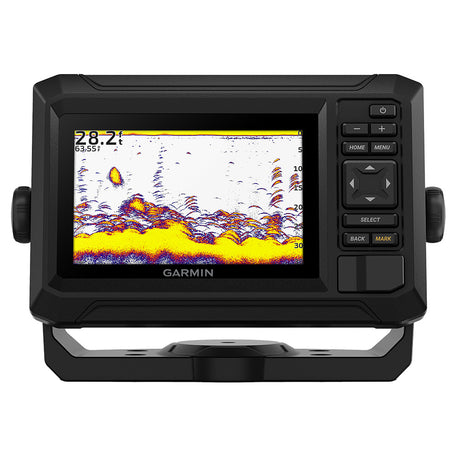

Garmin ECHOMAP™ UHD2 54CV Chartplotter/Fishfinder Combo w/US Coastal Maps w/o Transducer
010-02591-50
Garmin
Garmin ECHOMAP™ Ultra 2 102sv w/o Transducer
010-02879-00
Garmin
Garmin ECHOMAP™ Ultra 2 106sv w/o Transducer - Garmin Navionics+
010-02880-00
Garmin
Garmin ECHOMAP™ Ultra 2 122sv w/o Transducer
010-02881-00
Garmin
Garmin ECHOMAP™ Ultra 2 126sv w/o Transducer - Garmin Navionics+
010-02882-00
Garmin
Garmin GPSMAP® 1223 Non-Sonar w/Worldwide Basemap
010-02367-00
Garmin
Garmin GPSMAP® 1223xsv Combo GPS/Fishfinder - Worldwide
010-02367-02
Garmin
Garmin GPSMAP® 1243 Chartplotter GN+
010-02367-60
Garmin
Garmin GPSMAP® 1243xsv Combo GPS/Fishfinder GN+
010-02367-61
Garmin
Garmin GPSMAP® 1523xsv Ultrawide Combo GPS/Fishfinder
010-03855-00
Garmin
Garmin GPSMAP® 1543xsv Ultrawide Combo GPS/Fishfinder GN+
010-03855-01
Garmin
Garmin GPSMAP® 1623 Chartplotter
010-02919-00
Garmin
Garmin GPSMAP® 1623xsv Combo GPS/Fishfinder
010-02919-02
Garmin
Garmin GPSMAP® 1643 Chartplotter GN+
010-02919-01
Garmin
Garmin GPSMAP® 1643xsv Combo GPS/Fishfinder GN+
010-02919-03
Garmin
Garmin GPSMAP® 743 Chartplotter GN+
010-02365-60
Garmin
Garmin GPSMAP® 743xsv Combo GPS/Fishfinder GN+
010-02365-61
Garmin
Garmin GPSMAP® 8410 10" Chartplotter w/Worldwide Basemap
010-02091-00
Garmin
Garmin GPSMAP® 8410xsv 10" Chartplotter/Sounder Combo w/Worldwide Basemap
010-02091-02
Garmin
Garmin GPSMAP® 8412 12" Chartplotter w/Worldwide Basemap
010-02092-00
Garmin
Garmin GPSMAP® 8412xsv 12" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar
010-02092-02
Garmin
Garmin GPSMAP® 8416 16" Chartplotter w/Worldwide Basemap
010-02093-00
Garmin
Garmin GPSMAP® 8416xsv 16" Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar
010-02093-02
Garmin
Garmin GPSMAP® 8610 Chartplotter GN+
010-02091-50
Garmin
Garmin GPSMAP® 8610xsv Combo GPS/Fishfinder GN+
010-02091-51
Garmin
Garmin GPSMAP® 8612 Chartplotter GN+
010-02092-50
Garmin
Garmin GPSMAP® 8612xsv Combo GPS/Fishfinder GN+
010-02092-51
Garmin
Garmin GPSMAP® 8616 Chartplotter GN+
010-02093-50
Garmin
Garmin GPSMAP® 8616xsv Combo GPS/Fishfinder GN+
010-02093-51
Garmin

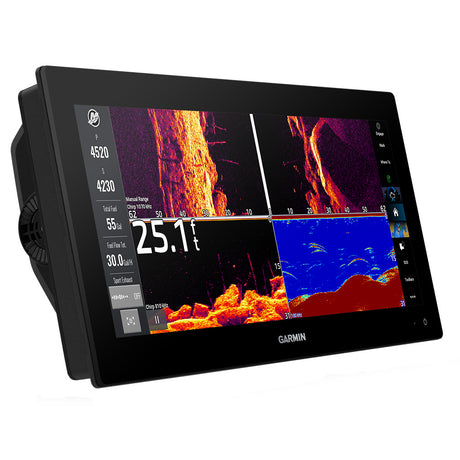

Garmin GPSMAP® 9010 Premium Chartplotter w/Worldwide Basemap
