Raymarine | SKU: RAY/T70168 | Barcode: 723193774496

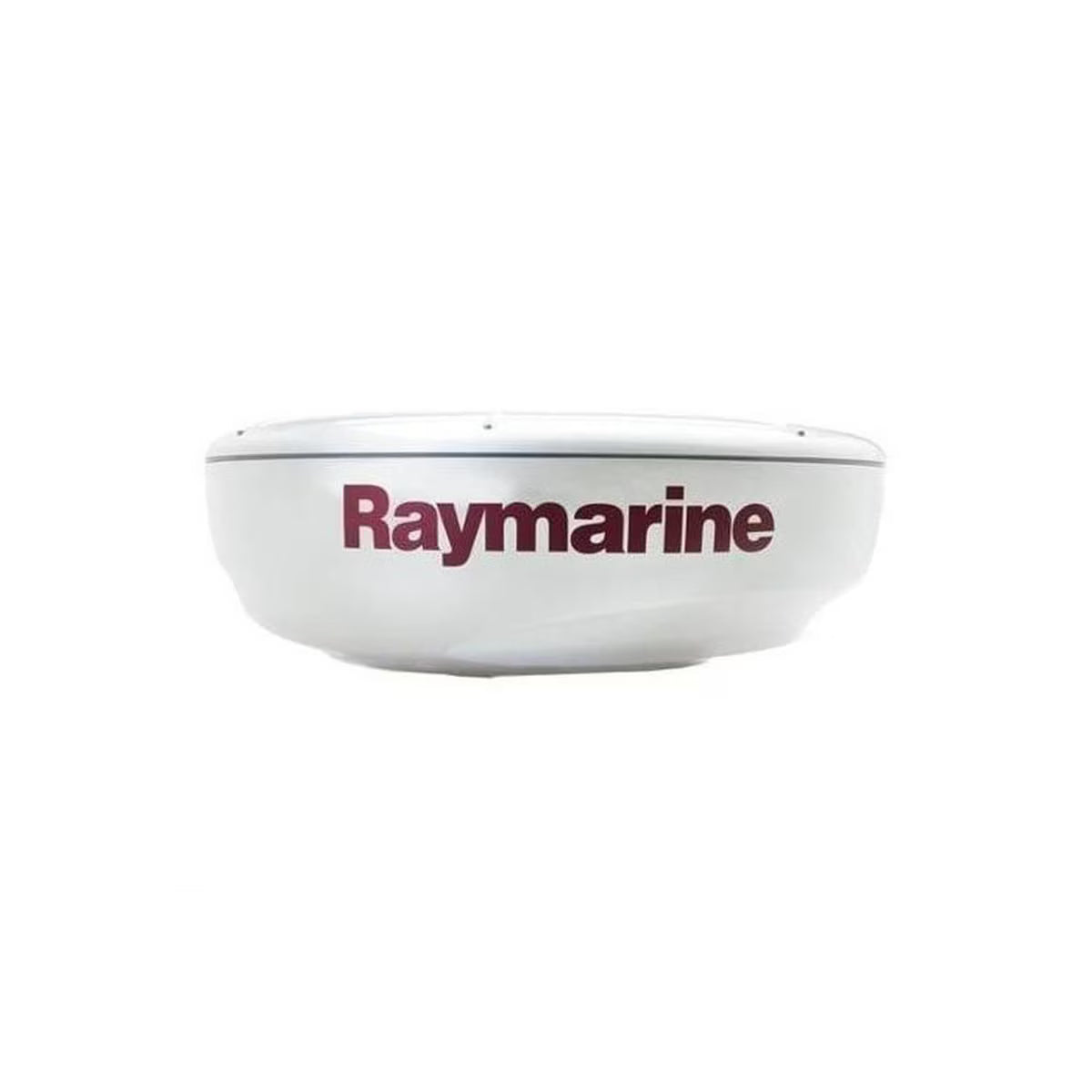

RD418HD - 10M Cable

Name: RD418HD - 10M Cable
Brand: Raymarine
SKU: RAY/T70168
Price: 2394.99 USD
Availability: InStock

4Kw 18" HD Dome w/ 10M Cable

$2,394⁹⁹

Options

RD418HD - 10M Cable

4Kw 18" HD Dome w/ 10M Cable

RD418HD - No Cable

4Kw 18" HD Dome

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Raymarine's new HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with C-Series Widescreen, E-Series Classic, E-Series Widescreen and G-Series Multifunction Displays, these radomes offer a 256-color radar display and the clearest, most lifelike radome presentation available from any radome scanner.

The RD418HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles.

Specifications

Product Series

HD
MPN

T70168
Physical

Dimensions:
Dia: 20.5" (521 mm)
H: 9.7" (247 mm)
Weight: 21 lbs (9.5 kg)
Power

Input: 10.8-33v DC
Standby Draw: 25 W
Transmit Draw: 60 W
Radar

Type: Magnetron
Power: 4 kW
Beam Width: 4.9° x 25°
RPM: 24 (48 with compatible displays)
Max Range: 48 nm
IP Rating

IPx6

Reviews (0)

In The Box

In The Box:

Radome
Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
