Raymarine | SKU: RAY/E70665 | Barcode: 723193844724

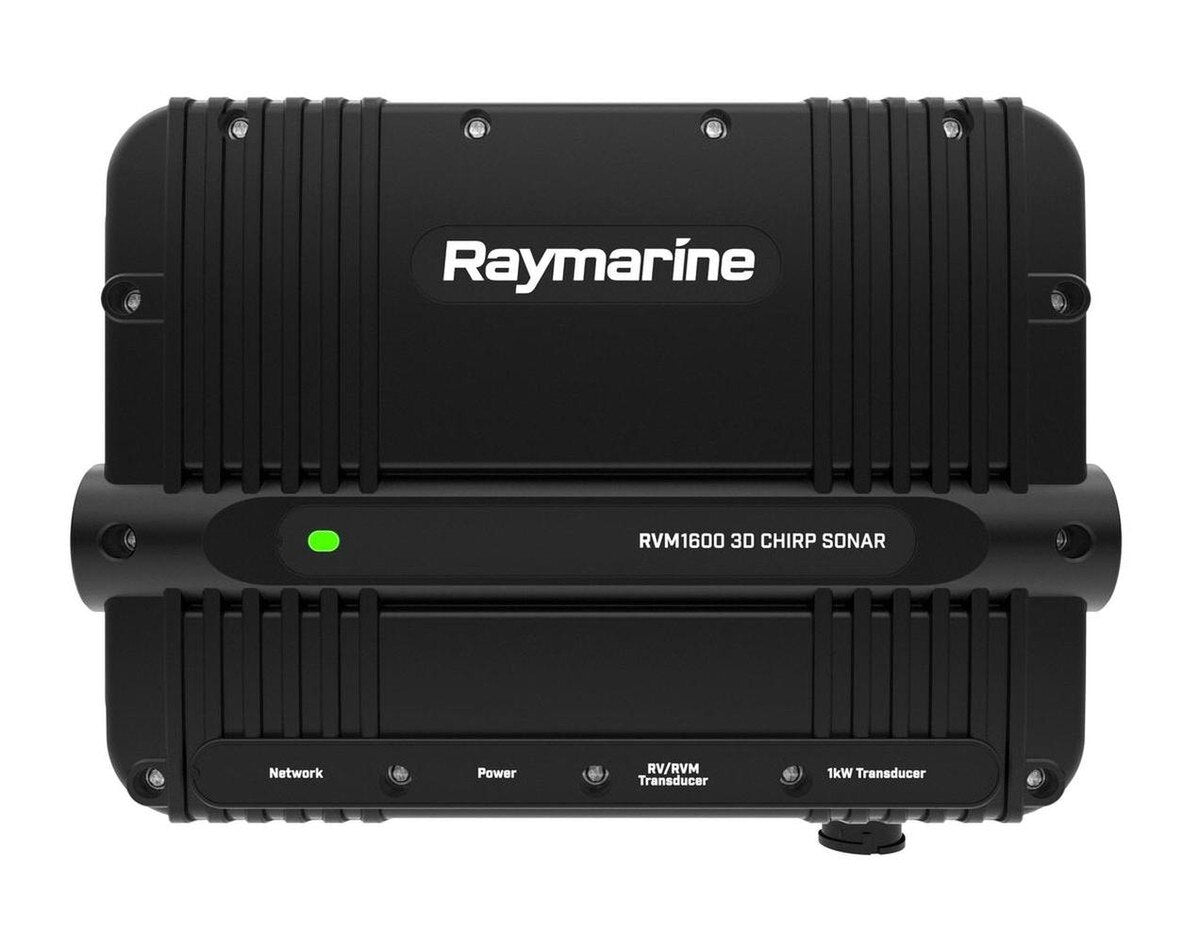

RVM1600

Name: RVM1600
Brand: Raymarine
SKU: RAY/E70665
Price: 1539.99 USD
Availability: InStock

RealVision Black Box Sonar

$1,539⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Success in fishing is never guaranteed. Enhance your chances by getting the full picture of what lies below and ensuring that they can run, but they can’t hide.

The RVM1600 for Axiom® chartplotters takes multi-channel fishfinder performance to new depths. The next generation of CHIRP DownVision, SideVision, 3D and traditional CHIRP sonar, RealVision® MAX fishfinder technology delivers more power so you can fish at the top of your game.

RealVision MAX starts with high-performance CHIRP transducers, upgraded with larger elements and increased power output for extended fishfinder range performance.

RealVision MAX CHIRP also offers signal processing and faster ping rates for improved fishfinder imagery and target identification.

Finally, with RealVision MAX, structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.

CHIRP DownVision® delivers a photo-like fishfinder view of the world beneath your boat. See bottom structures and fish targets with amazing detail.

CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait and underwater structure, allowing you to see more fish from a greater distance than traditional side scanning sonars.

RealVision® MAX 3D fishfinder lets you see below, behind and to the sides of the boat to provide a new perspective of the underwater world that simplifies locating and staying on structure.

Specifications

Product Series

RVM
MPN

E70665
Physical

Dimensions:
H: 7.40" (188 mm)
W: 11.79" (299.4 mm)
D: 3.32" (84.4 mm)
Weight: 3.49 lbs (1.585 kg)
Power

Input: 10.8-31.2v DC
Typical Draw: 1.2 A @ 12v
Max Draw: 2.4 A @ 12v
Fuse: 5 A
Sonar

Power Output:
- Traditional: 1000 W (1kW)
- RealVision Max: 600 W
Frequency:
- RealVision Max Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)
- Traditional CHIRP Port: 42 - 250kHz (Transducer dependent)

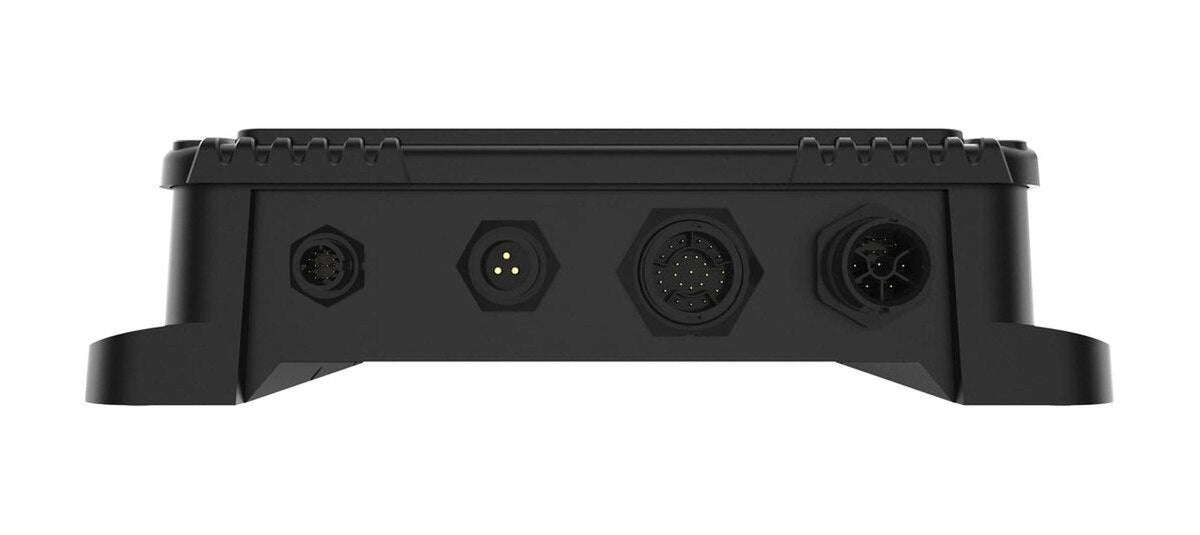

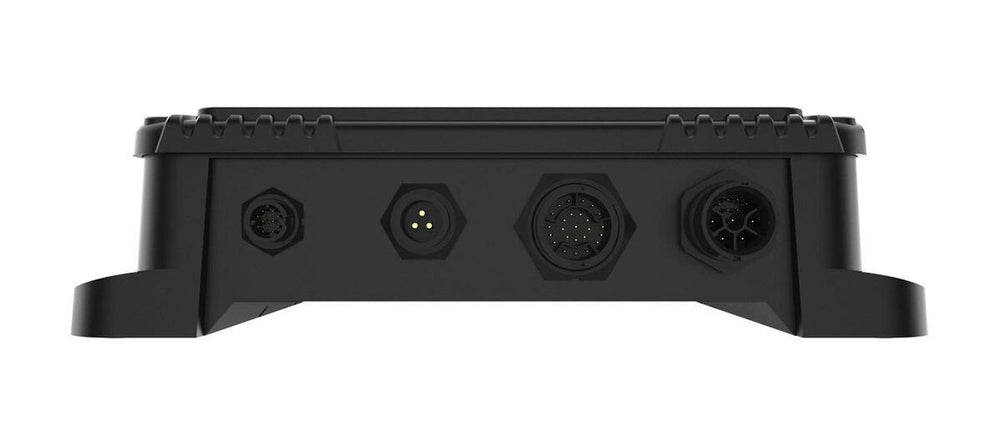

Connectivity

Sonar:
- Traditional CHIRP Port: 11pin
- RealVision Max Port: 25pin RVM
Network: RayNet
Power: 3pin Power Connector
IP Rating

IPx6

Reviews (0)

In The Box

In The Box:

RVM1600 3D CHIRP sonar module.
Power cable 1.5 m (4.9 ft).
RayNet (female) to RayNet (female) network cable 2 m (6.6 ft).
Documentation
Mounting screws M4.5 x 20 (x4).

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
