Raymarine  |  SKU: RAY/T70410

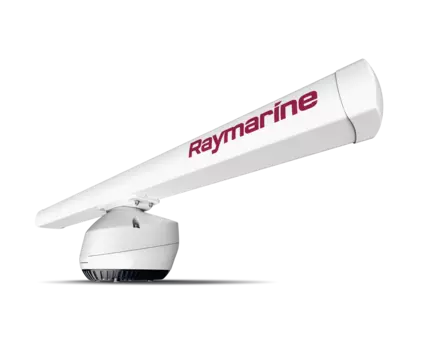

Magnum 4kW Open Array Radar w/ 6' Antenna

$5,79999

Not Eligible For Free Shipping. Flat Rate Shipping Fees Applied At Check Out.

Click Here For Flat Rate Shipping Rates

Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multi-function navigation displays. Employing many of the same radar technologies trusted by the United States coast guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open array pedestal built to withstand the elements.

6' Open Array Radar
110.0 lb
  • Model
    Magnum 6' - 4kW
  • Product Series
    Raymarine Magnum
  • Size
    6'
  • Power Output
    4kW
  • Technology
    • Magnetron
  • Radar
    Beamwidth: 1.15° x 25º
    Max Range: 72 nm
    Min Range:
    RPM: 24/48
    Warm Up Time: 75 Seconds
    Time To Transmit: 2.5 Seconds
  • Physical
    Dimensions (Pedestal):
    W: 12.3" (314 mm)
    L: 16.1" (409 mm)
    H (Including Antenna): 16.9" (430 mm)
    Antenna Length: 75.7" (1918 mm)

    Weight: 63.93 lbs (29 kg)
  • Power
    Power Input: 12-24 V DC
    Power Draw:
    - Sleep: 1.2 W
    - Standby: < 30 W
    - Typical: < 110 W
  • Other
    Max Wind Load: 85 kt
  • Water Rating
    IPx6
