Em-Trak  |  SKU: EMTRK/430-0005

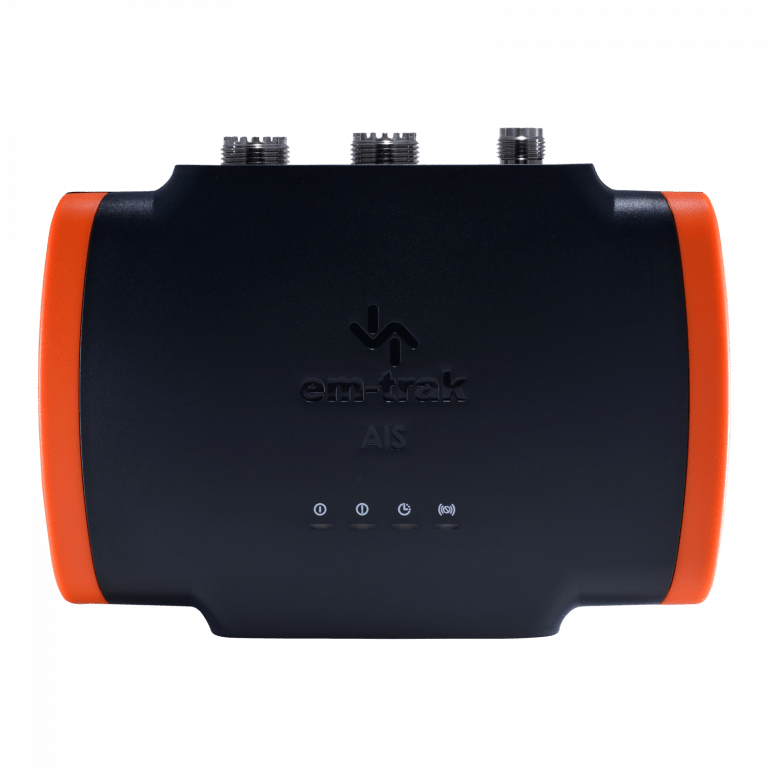

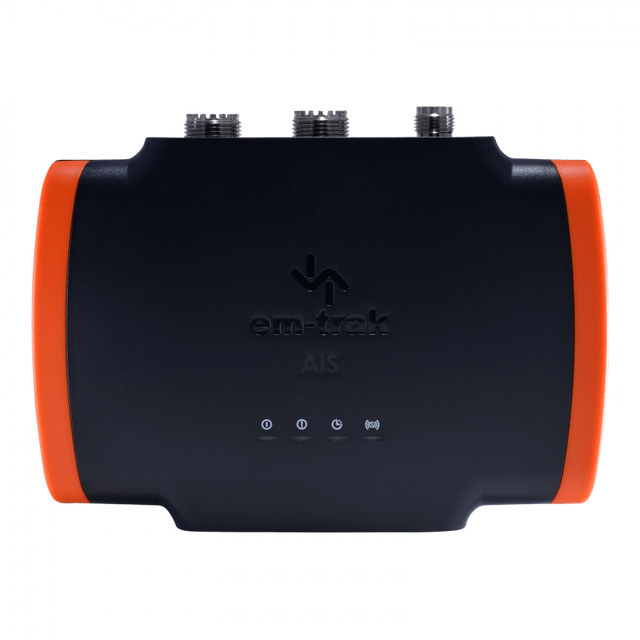

B923 AIS Class B Transceiver

Precio normal $82900
Los gastos de envío se calcularán al momento de pagar.

Enhance your on-the-water experience with the B900 series – a market leading range of standard and high transmit power AIS Class B transceivers designed for real-world conditions. Small, lightweight, and built to last, every product in the range delivers em-trak’s advanced performance and ultimate connectivity – giving you the complete picture and the time to respond.

With easy installation and connectivity options, the B900 series offers flexible, wireless or wired usage, helping you to get the most from your transceiver and related onboard equipment every day.


Código de barras: 672975210526
3.0 lb
  • Product Series
    EM-Trak B900 Series
  • Model
    B923 | 430-0005
  • Physical Specs
    Dimensions:
    W: 150 mm
    H: 115 mm
    D: 45 mm

    Weight: 415g
  • Power
    Power Input: 12 / 24 V DC (9.6V – 31.2V)
    Power Draw:
    - Typical: 245 mA
    - Peak: 2 A

    Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port
  • Connections
    NMEA 0183 – 2 x bi-directional ports
    NMEA 2000 – NMEA2000 Ed 3.101, LEN=1
    USB – PC virtual com port for NMEA0183 data

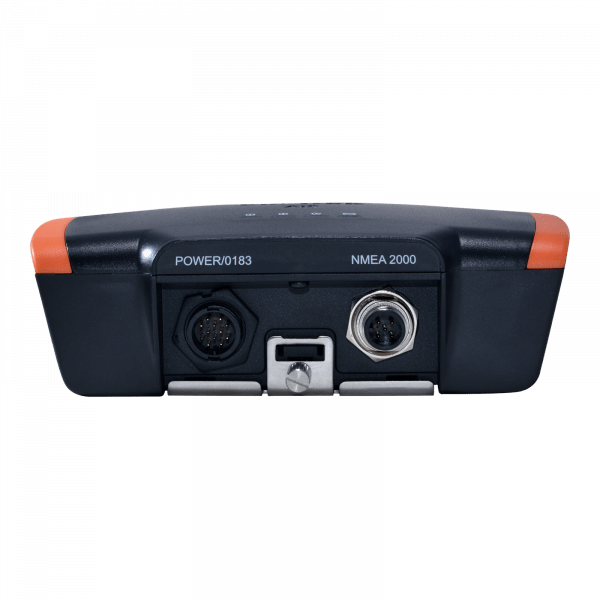

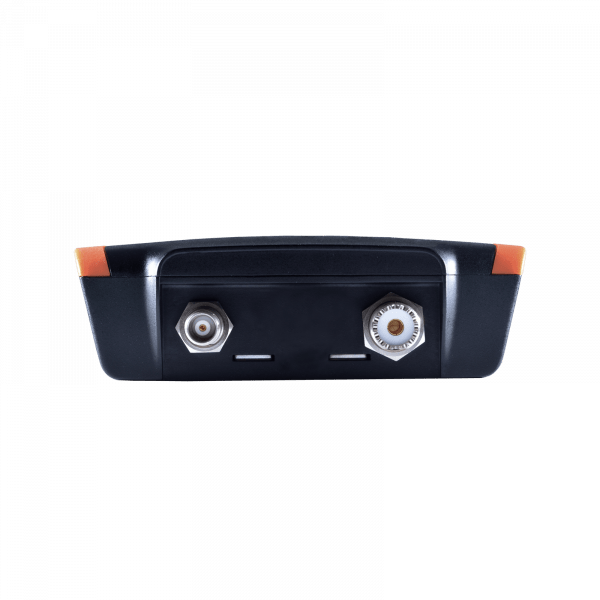

    PHYSICAL CONNECTIONS:
    VHF antenna – SO-239
    VHF radio – SO-239
    GNSS – TNC
    Power/NMEA 0183/silent mode – 12 way circular multipole
    NMEA 2000 – 5 way Micro-C connector
    USB – USB Micro-B
  • Other
    Certified AIS Class B – 2W CSTDMA
    Integrated high performance zero loss VHF antenna splitter
    Global Certification – USCG / FCC / Canada / Europe
    SRT-AIS™ transceiver engine for superlative proven performance
    FLEXI-FIX™ bracket system for easy, convenient and secure installation
    Internal high-performance GPS receiver and antenna (external antenna optional)
    Water, pressure spray and damp proof – IPx6 & IPx7
    Ruggedized – protected from vibration, shock and extreme temperatures
    Small and lightweight
    Ultra-low power consumption – best in class
    Guaranteed connectivity and interoperability with any app, chart plotter, smart phone, tablet or PC
    NMEA0183 & NMEA2000
    Automated health and performance monitoring
    Silent Mode (transmit-off) function
    Enhanced RF screening to protect against electromagnetic interference
    Built-in power surge protection
  • Temperature Range
    -25°C to +55°C
