Garmin  |  SKU: GAR/010-00351-00

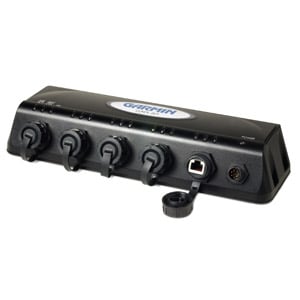

Network Port Expander

GMS 10

$26999
Shipping calculated at checkout.
The GMS 10 network port expander allows you to connect multiple chartplotters and sensors over the Garmin Marine Network. With this robust 100 MB switch, you can connect multiple multi-functional displays (MFDs) and sensors to the marine network and gain the benefit of Ethernet-like data transfer speeds up to 10 times faster than some competitive systems.
Network Hub
Barcode: 753759045524
4.0 lb
  • Physical Specs
    Dimensions:
    W: 11.8" (300.8 mm)
    H: 3.5" (89 mm)
    D: 2.3" (57.2 mm
    Weight: 1.2 lbs
  • Power
    Power Input: 10-35 v DC
    Power Draw: 2.75 w
    Fuse: 2 A
  • Connections
    Garmin Marine Network Ports (5)
    7pin Power Cable
  • Water Rating
    IPx7
  • Temperature Range
    5º - 158º F (-15 - 70º C)
