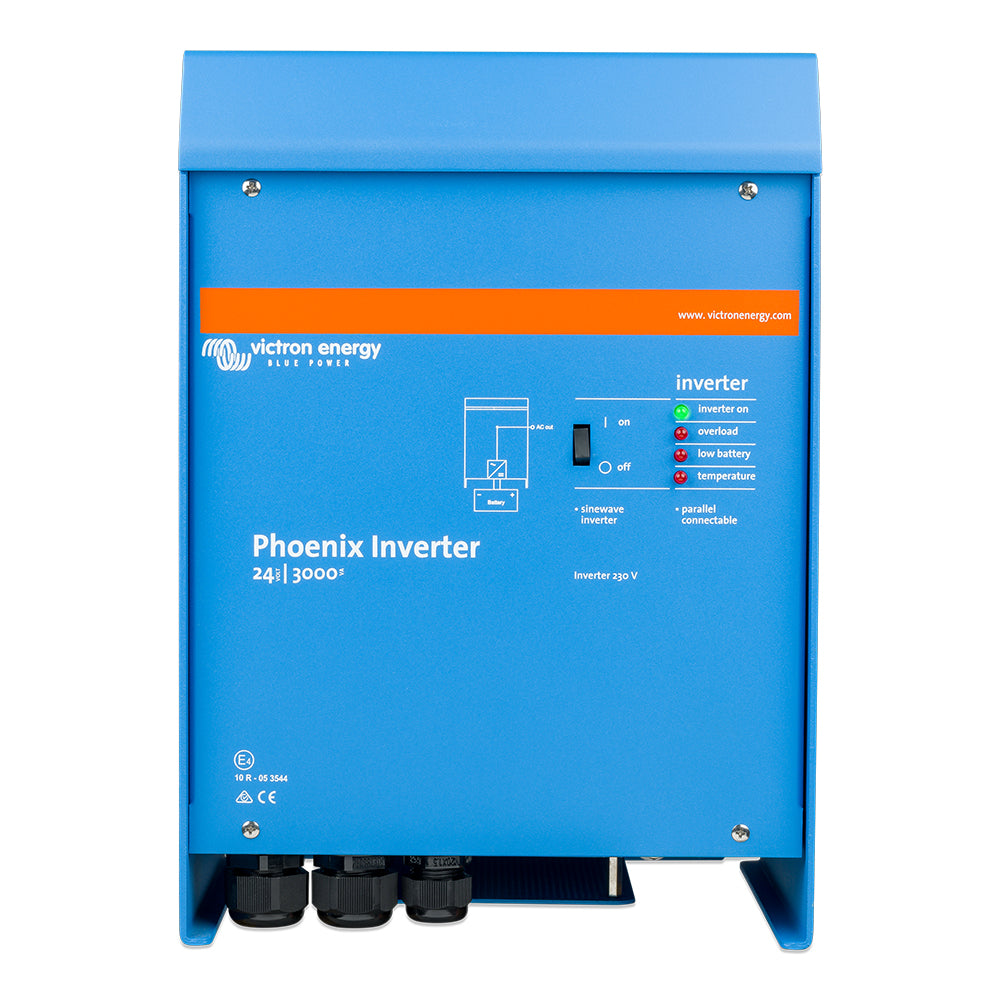

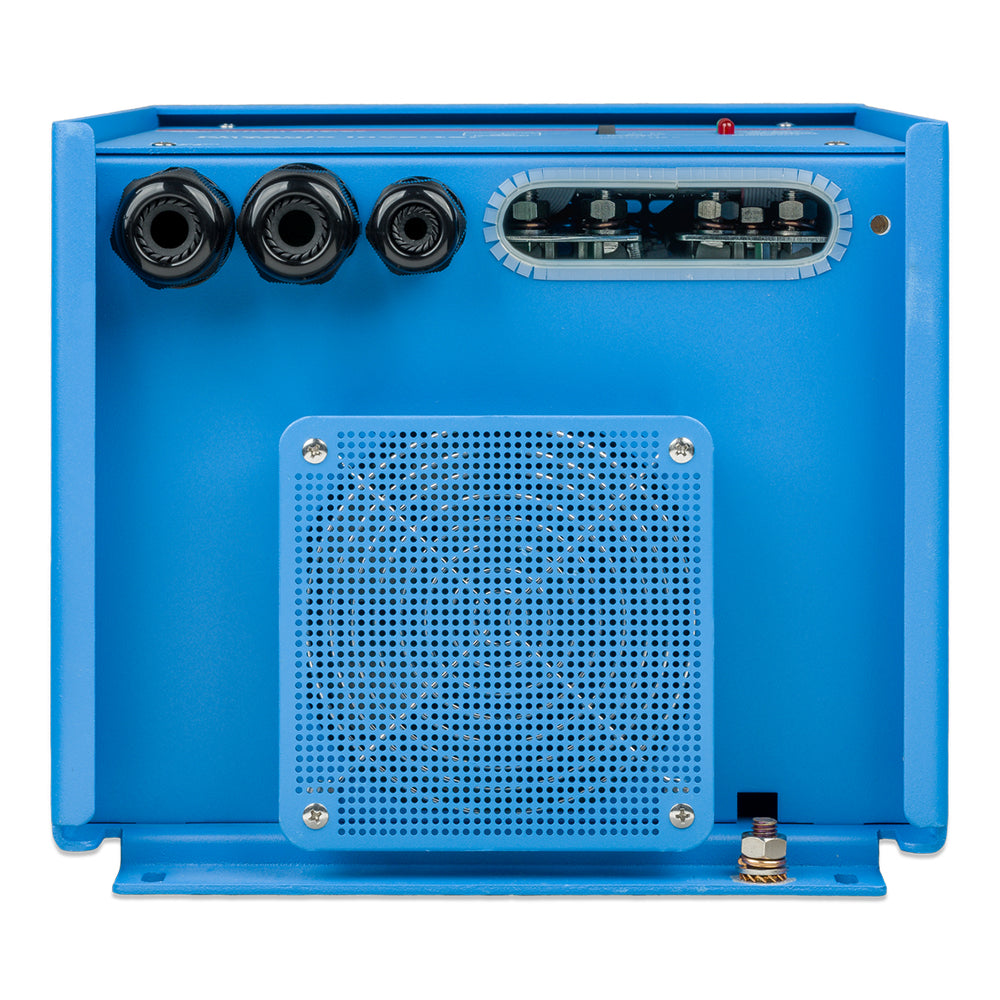

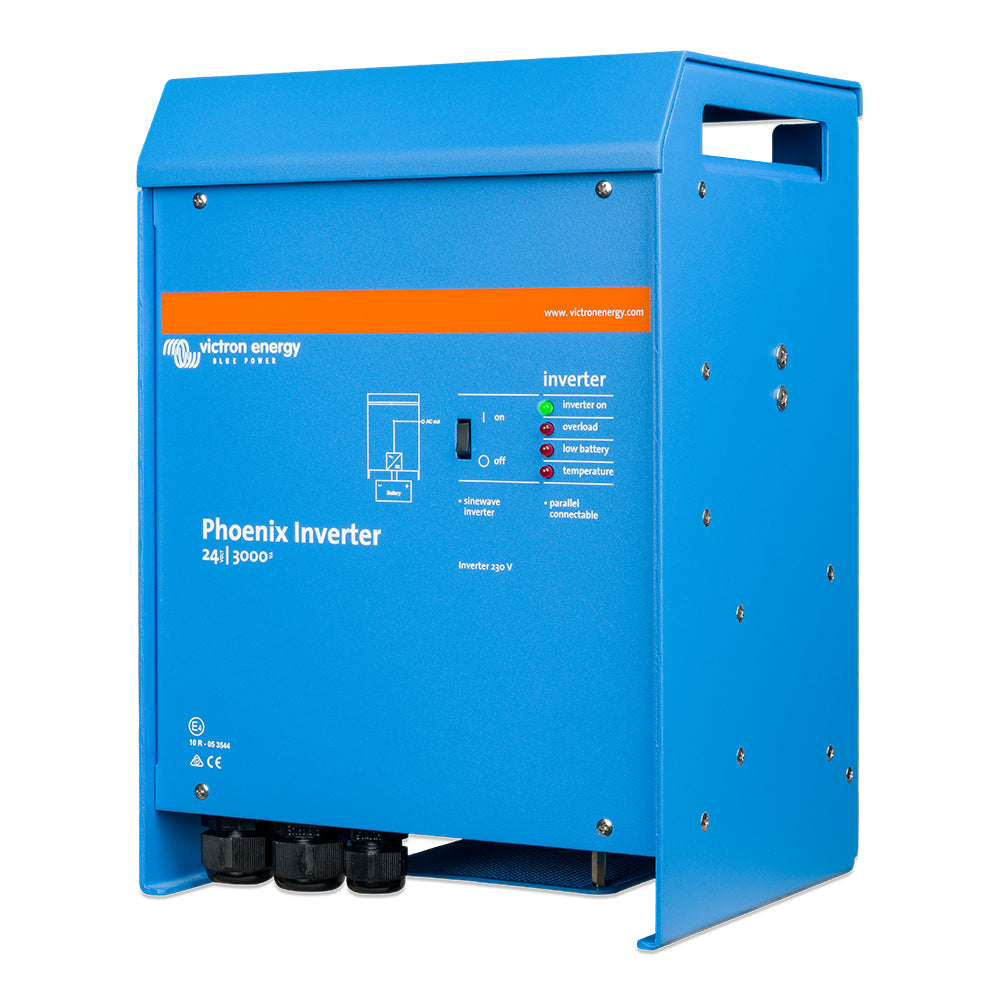

Victron Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz -VE.Bus

Name: Victron Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz -VE.Bus
Brand: Victron Energy
SKU: VIC/PIN243020100
Price: 1154.30 USD
Availability: InStock

SKU: VIC/PIN243020100

$1,154³⁰ $1,358⁰⁰

Same-Day Shipping Checking cutoff…

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz - VE. Bus

Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising on performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Parallel & 3-phase Operation Capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in a 3-phase configuration is also possible.

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications

Identification

MPN	PIN243020100
Barcode	8719076023739

Electrical

Input Voltage Range	19 - 33V
Output Voltage	120 VAC ±2%
Output Frequency	60 Hz ±0.1%
Continuous Power @ 25°C	2400W (3000VA)
Peak Power	6000W
Max. Efficiency	94%
No-Load Power Draw	20W (15W in AES mode)
