Freedom X Pro 1200 Inverter - 1000w

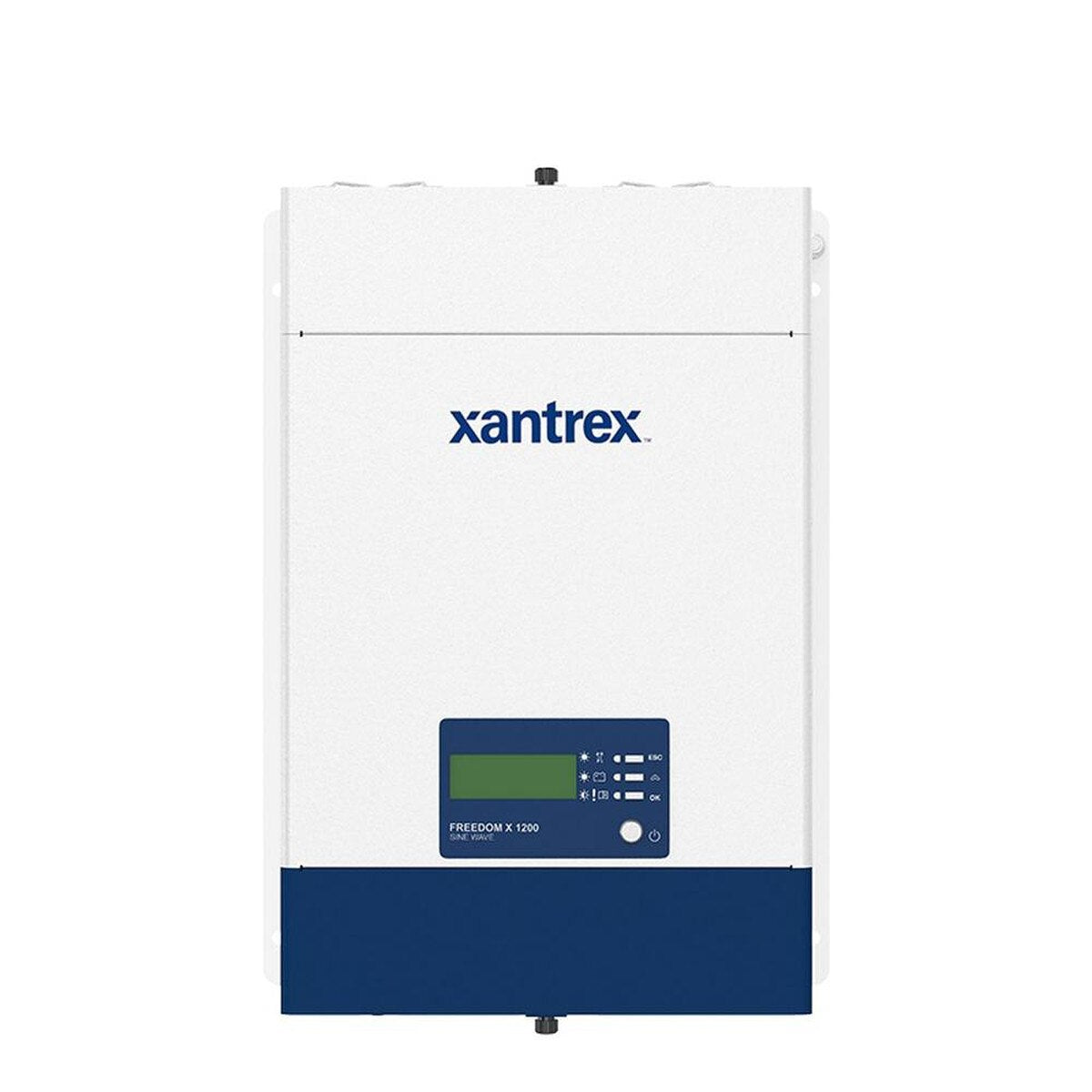

Xantrex Freedom X 1200 PRO Inverter — 12V, 1200W, True Sine Wave (806-1212-05)

A rugged true sine wave inverter built for permanent hardwire installation in marine, RV, and commercial vehicle applications — with a built-in transfer switch, RV-C communications, and conformal-coated electronics that handle the vibration and moisture of mobile environments.

Why It's Worth It

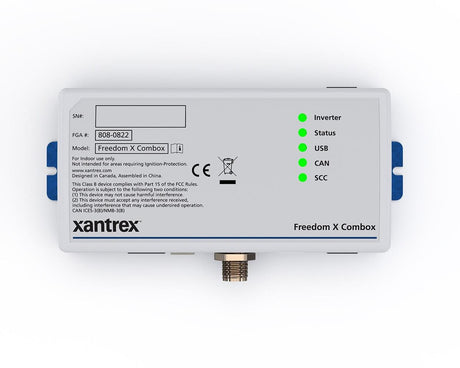

The PRO designation matters here: unlike the base Freedom X 1200 (806-1212), this unit has a built-in RV-C communication card — meaning it connects directly to the Freedom X Combox (808-0822) for RV-C or NMEA 2000 network integration, or to the Xantrex Gateway (808-1888) for Wi-Fi monitoring and control, without needing a separate interface module. The built-in transfer switch (10-20ms transfer time) automatically switches between inverter and shore power or generator input, so AC loads stay powered without interruption. Conformal-coated circuit boards and heavy-duty metal casing handle the condensation, vibration, and temperature extremes of a marine or truck installation that would eventually kill a consumer-grade inverter.

Use

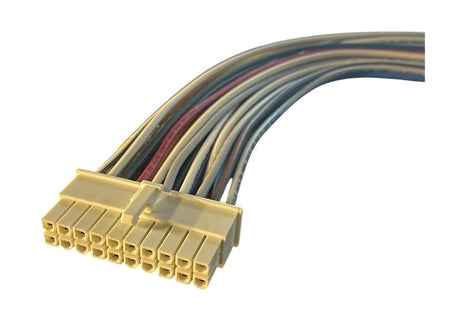

Hardwire installation — quick-connect terminals at both AC input and AC output, plus pre-wired DC pigtail cables. Pair with the Freedom X Combox (808-0822) for RV-C or NMEA 2000 connectivity to third-party monitoring systems. A drip shield accessory (808-1050) is required for UL458 marine supplement compliance in specific mounting orientations — if you're installing this on a vessel and need full marine certification, confirm the required orientation and order the drip shield separately.

In The Box:

Freedom X 1200 PRO Inverter
Mounting Hardware
Documentation

Package Dimensions/Shipping:

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
