Transducer Spotlight

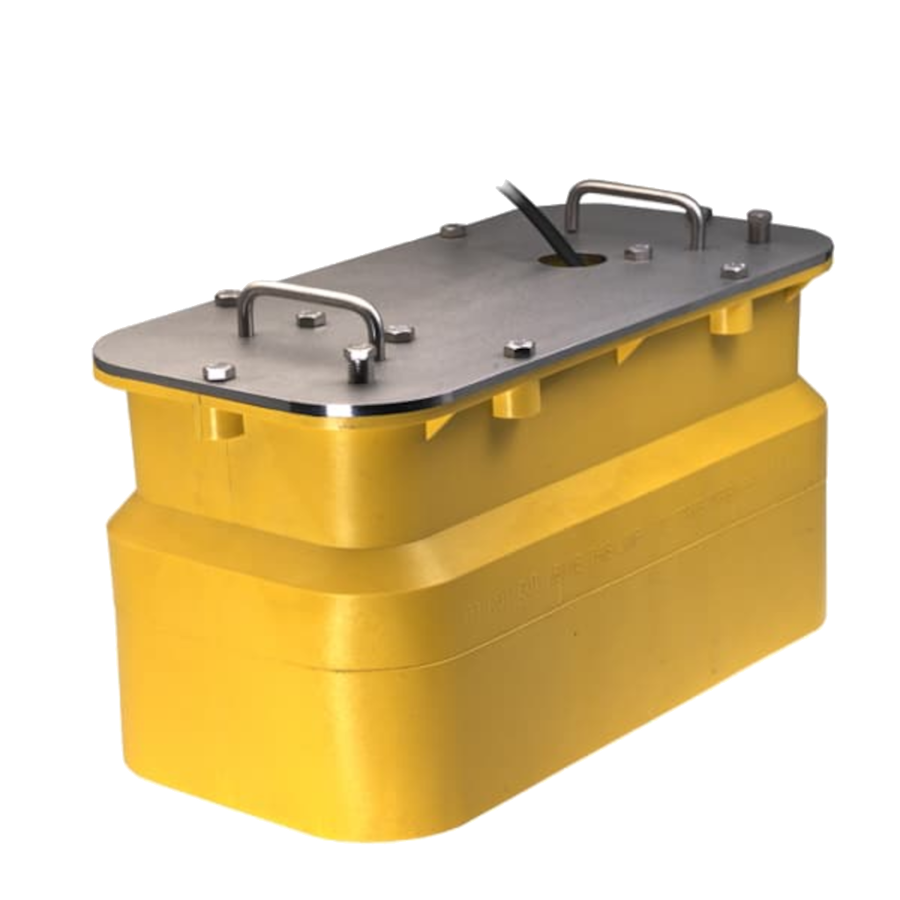

Airmar R599
An in-hull CHIRP transducer built for the part of the water column where most fishfinders stop being useful.
Depth and detail used to be a trade-off
Run a single low-frequency transducer and you'll mark bottom in a few thousand feet of water, but the picture gets soft fast — bait balls and game fish start to blur into one return. Run a high-frequency unit instead and you get sharp separation between targets, but you lose the water column entirely once you're past a thousand feet or so.
The R599 is Airmar's answer to that trade-off. At its core is a 24-element low-frequency array sweeping 28–60 kHz, which does the actual deep work — tracking bottom and structure well past 3,000 meters down. That array is then paired with a second, higher band, and which second band you get is the one real decision in the R599 lineup.
Two arrays, one housing
Both R599 variants share the same low-frequency foundation. Where they split is the second array bonded alongside it — and that second array determines where the transducer is strongest.
Combined bandwidth from a single housing: roughly 82–102 kHz on the LM, up to 112 kHz on the LH. Either way, one transducer covers more usable spectrum than most boats run across two.
LM or LH: the one decision that matters
Everything else about the R599 is fixed. This choice isn't — and it's worth getting right, because it's not something you casually swap later.
R599-LM
28–60 kHz / 80–130 kHzThe medium band fills in the 1,500–2,500 ft range with real image detail, not just a low-frequency blur. If a meaningful chunk of your fishing happens in that mid-depth zone — swordfish drops, deep grouper, structure work — the LM gets you a noticeably better picture there than the low band can deliver alone.
R599-LH
28–60 kHz / 130–210 kHzThe high band has the shorter wavelength, which means better target separation — distinguishing individual fish from bait, from structure. It's the sharper of the two up to about 1,500 ft. Past that, you're back to low-frequency-only performance, same as the LM.
Mounted inside, not through it
The R599 is an in-hull design: the transducer sits in a tank that gets cut to match the boat's deadrise (0° to 22°) and epoxied to the inside of the hull. No fitting passes through the bottom of the boat, no below-the-waterline hole to maintain.
That matters most for trailered boats and multihulls, where a thru-hull transducer either isn't practical or isn't an option at all. It also means haul-out schedules and bottom paint don't have to work around a protruding sensor. The trade-off is space and weight — the unit itself runs close to 44 lb before the tank and hardware, so it needs a hull with room to spare, not a tight squeeze.
Where it earns its keep
Strengths
- Genuine 10,000 ft depth capability without giving up a second, more detailed band
- No hull penetration — works for trailered boats and multihulls that thru-hull units can't serve
- Xducer ID lets compatible MFDs recognize the transducer's specs automatically, no manual setup
- Purpose-built for canyon and seamount fishing, not a general-purpose afterthought
Trade-offs
- Premium price point — this isn't an impulse upgrade
- LM vs. LH is a one-time call; switching later means buying the other unit
- Needs real hull space and a deadrise inside the 0°–22° range to mount correctly
- LH owners running a second high-frequency transducer need to manage potential interference
