Fusion  |  SKU: SIM/000-13289-001

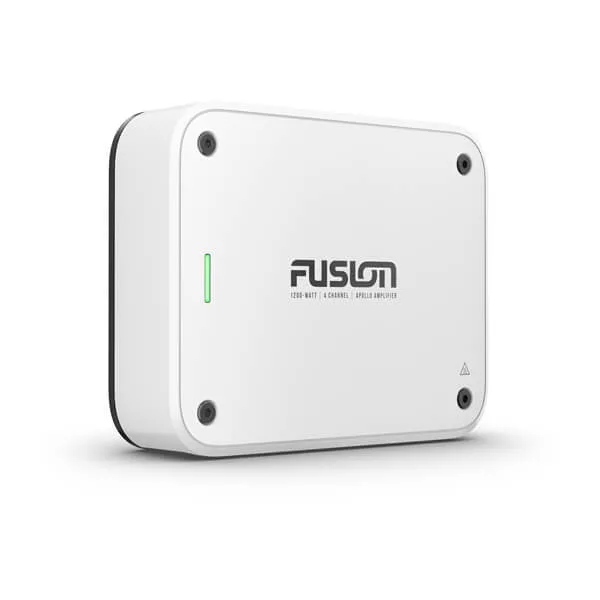

Amplificador Apollo de 4 canales

Apollo Series 4-Channel Amplifier

$64999

ES LA DIFERENCIA ENTRE ESCUCHAR LA MÚSICA Y SENTIRLA

* Requiere radio con DSP Fusion habilitado *

Amplificadores
Código de barras: 753759329617
8.0 lb

Release Date:

  • Product Series
    Serie Fusion Apollo
  • Power Output
    Amplifier Class: D
    Continuous RMS Power:
    4Ω @ 14.4v = 150 W x4
    4Ω @ 12.5v = Not Rated
    2Ω @ 14.4v = 190 W x 4
    2Ω @ 12.5v = Not Rated
    4Ω Bridged @ 14.4v = 580 W x2
    4Ω Bridged @ 12.5v = Not Rated
  • Processing
    Frequency Range: 20 Hz - 20 kHz
    THD+N: <1% @ 2 Ω per Ch.
    S/N Ratio (Highest Rated Power): 97 dB
    S/N Ratio (1w): 75 dB
    Damping Factor:
    4Ω: n/a
    2Ω: n/a
  • Filters
    Fusion DSP
    Setup Through Fusion Link App
  • Physical
    Dimensions:
    W: 9.25" (235 mm)
    H: 7.06" (180 mm)
    D: 1.75" (45 mm)
    * Mounting Bracket Adds 5mm To Depth *
    Weight: 4.85 lb (2.2 kg)
  • Connections & Audio Routing
    Max Wire Size:
    Power: 2awg
    Speakers: 12awg

    Audio Input: RCA
    Input Modes: None
    Remote Level Control: None
    Pass Through Preamp Output: None
  • Power Input
    Power Input: 10.8 V - 16 V DC
    Power Draw:
    - Standby: < 5 mA
    - On (No Audio): < 1.15A
    Fuse: 40 A
  • Other
    * Requires Fusion DSP Enabled Radio *
  • Water Rating
    IPx2
