Garmin  |  SKU: GAR/010-12029-01  |  Código de barras: 753759335816

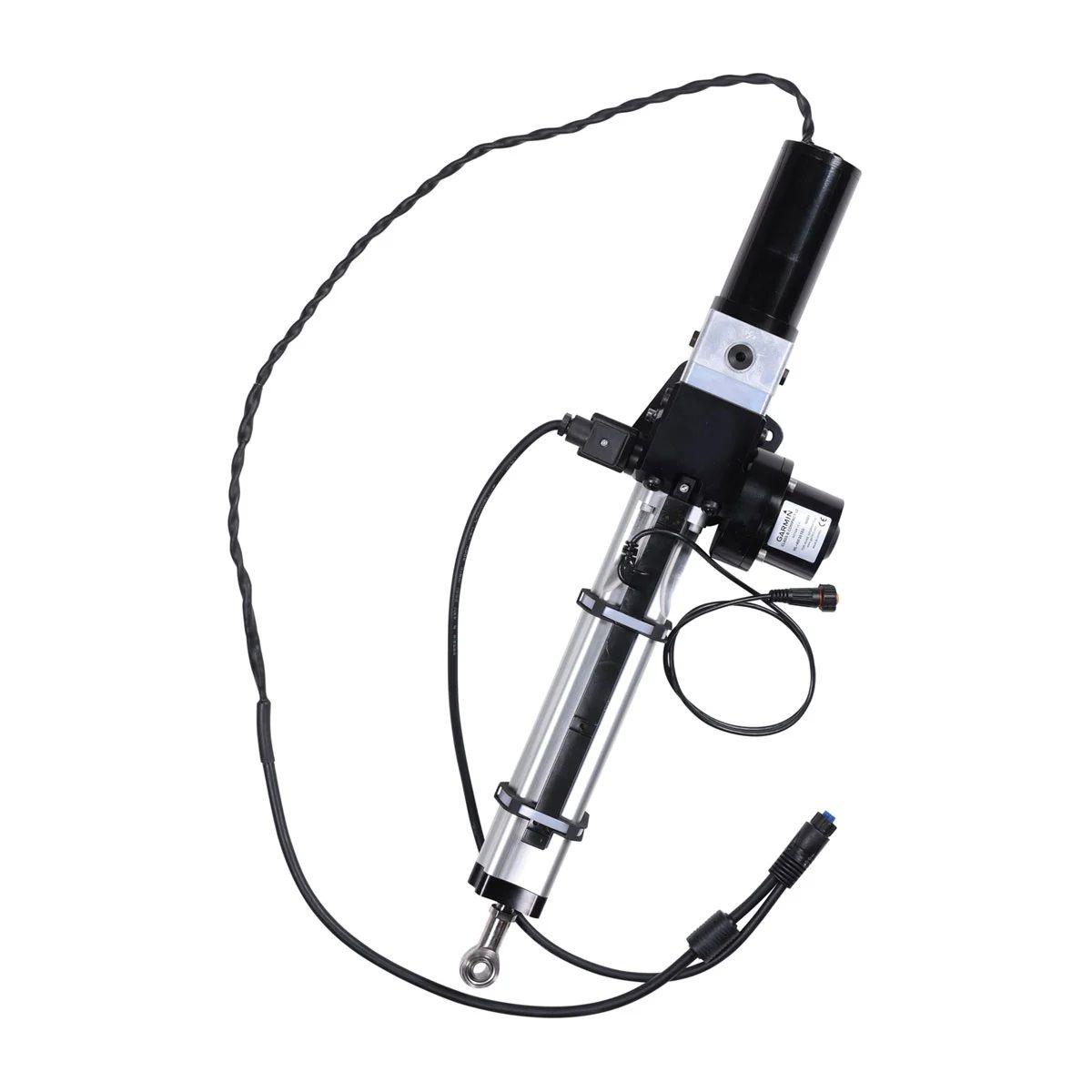

Class B Compact v2 Drive Unit

Precio normal $2,69999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Especificaciones

  • MPN
    010-12029-01
  • Physical
    Dimensions (Centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
    Stroke Length: 10" (254 mm)
    Max Thrust: 1,610 lbs (730 kg)
  • Power
    Input: 10-30v DC
    Average Clutch Current: 1 A @ 12v
    Average Motor Current: 2-4 A @ 12v
  • Temp Range
    -15° C to 50° C

Reseñas (0)

In The Box

In The Box:

Drive Unit
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

Garmin Marine Warranty

* ALL WARRANTY IS THROUGH MANUFACTURE *
