SKU:
SCH/705-92
Precio normal
$39495
Precio unitario
Descripción
Descripción

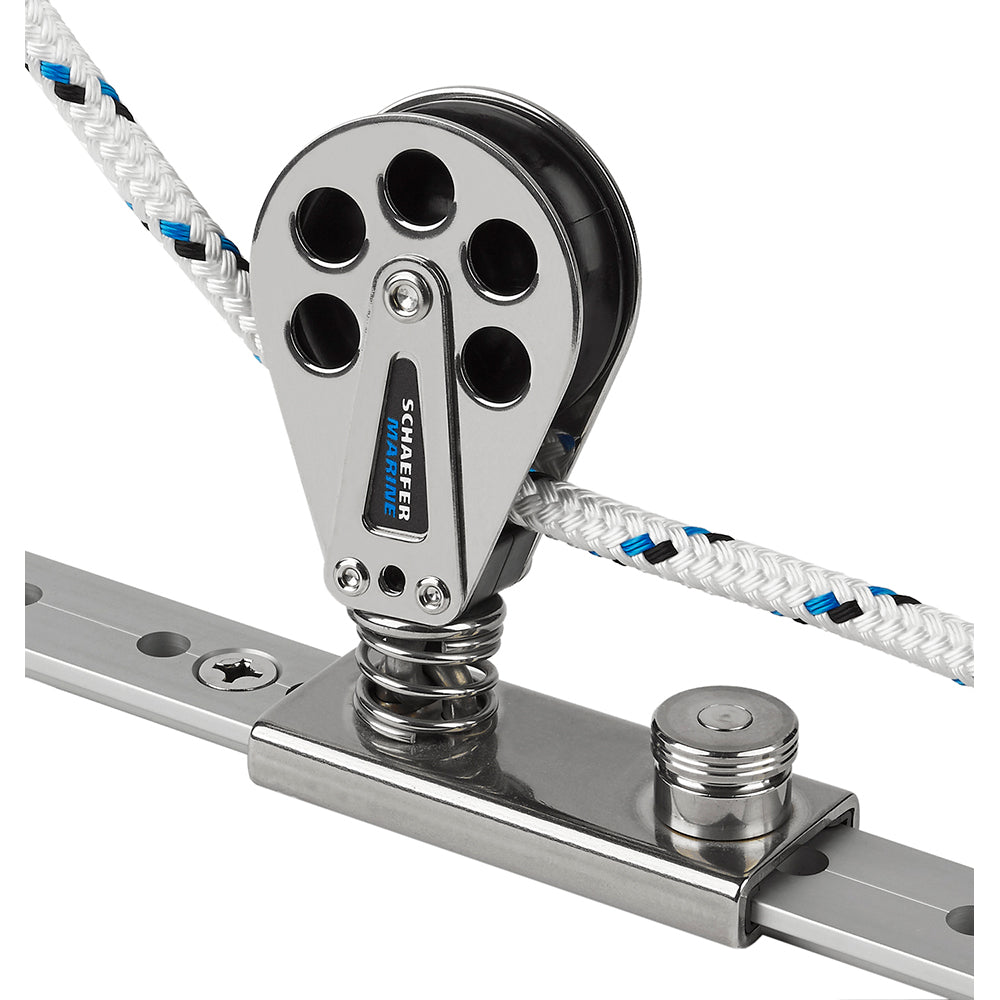

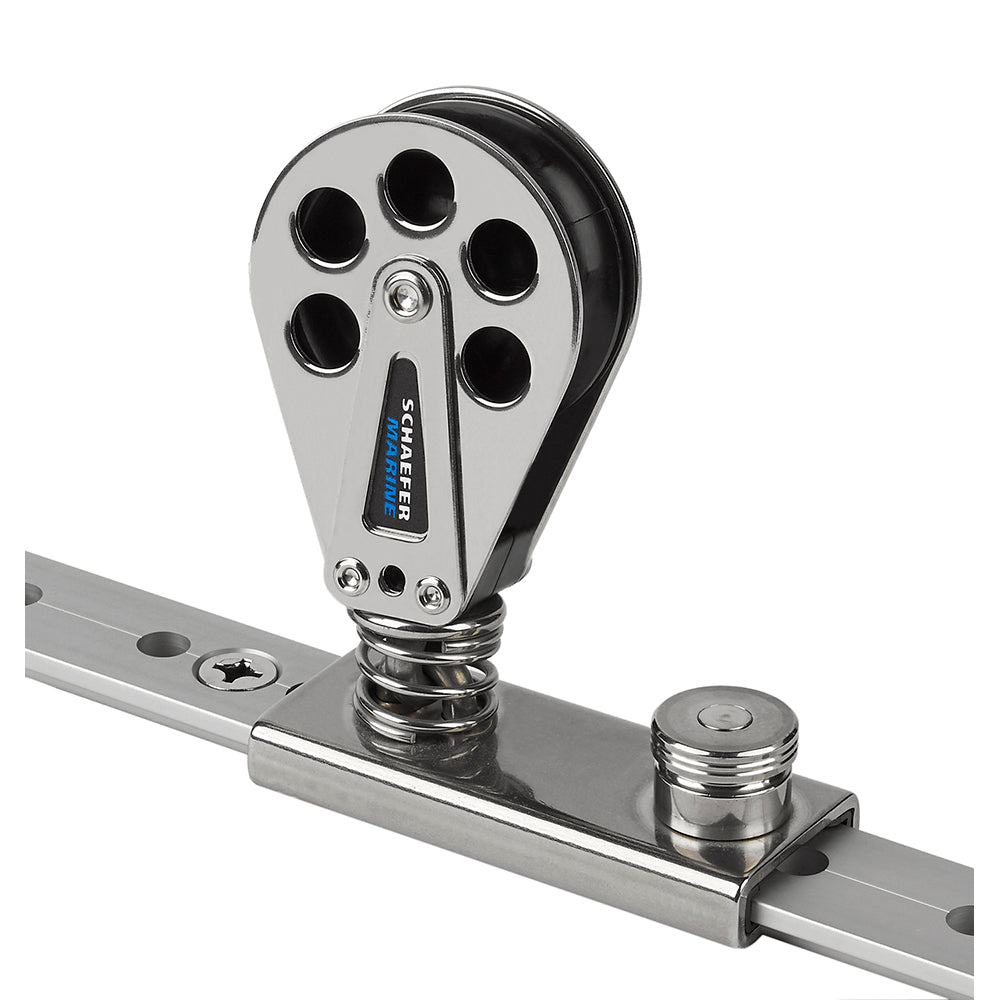

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications
Specifications
Identification
| MPN | 705-92 |
|---|---|
| Barcode | 740507021305 |
General
| Note 1 | Track Size 1-1/4" x 3/16" (32 mm x 5 mm) |
|---|---|
| Note 2 | Max. Boat Length 33' (10 m) |
| Note 3 | Max. Boat Weight 12000 lbs. (5455 kg) |
| Note 4 | Max. Sail Area 520 sq. ft. (48 m2) |
| Note 5 | Sheave Diameter 2-3/8" (60 mm) |
| Note 6 | Max Line 1/2" (12 mm) |
| Note 7 | Length 4" (102 mm) |
| Note 8 | Width 1-9/16" (39 mm) |
| Note 9 | Height 4-15/16" (126 mm) |
| Note 10 | Bearing Height 2-3/8" (67 mm) |
| Note 11 | SWL 2250 lbs. (1020 kg) |
| Note 12 | Weight 14 oz. (397 g) |
