Blue Sea Systems | SKU: BSS/5046 | Código de barras: 632085050467

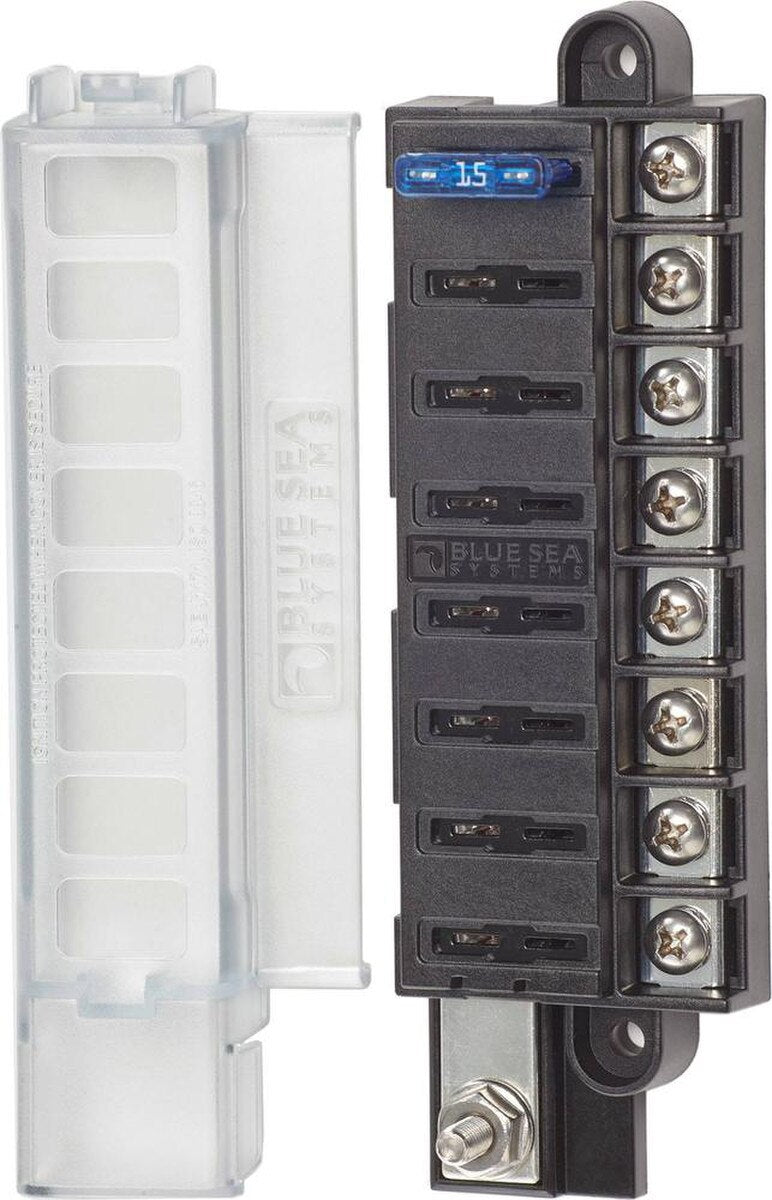

Compact Fuse Block - 8 Circuit

Name: Compact Fuse Block - 8 Circuit
Brand: Blue Sea Systems
SKU: BSS/5046
Price: 73.99 USD
Availability: InStock

Compact 8 Circuit ATC Fuse Block

$73⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Ignition protected when cover is secure -meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Single side design allows wire entry from one side to minimize footprint
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Includes 8 write-on circuit labels
Fuses sold separately

Product Series

ATC/ATO
MPN

5046
Physical

H: 5.75" (146 mm)
W: 1.73" (43.8 mm)
D: 1.28" (32.5 mm)
Weight: 0.40 lbs (0.18 kg)
Power

Max Voltage: 32v DC
Max Current (Block): 100 A
Max Current (Circuit): 30 A
Connectivity

Input: #10
Circuits: #8

In The Box:

Fuse Block
Cover
8 Write On Labels

Package Dimensions:

Product Support:

Subscription Information:

Release Date:

Warranty: Lifetime

* ALL WARRANTY IS THROUGH MANUFACTURE *
