Blue Sea Systems  |  SKU: BSS/7149  |  Código de barras: 632085071493

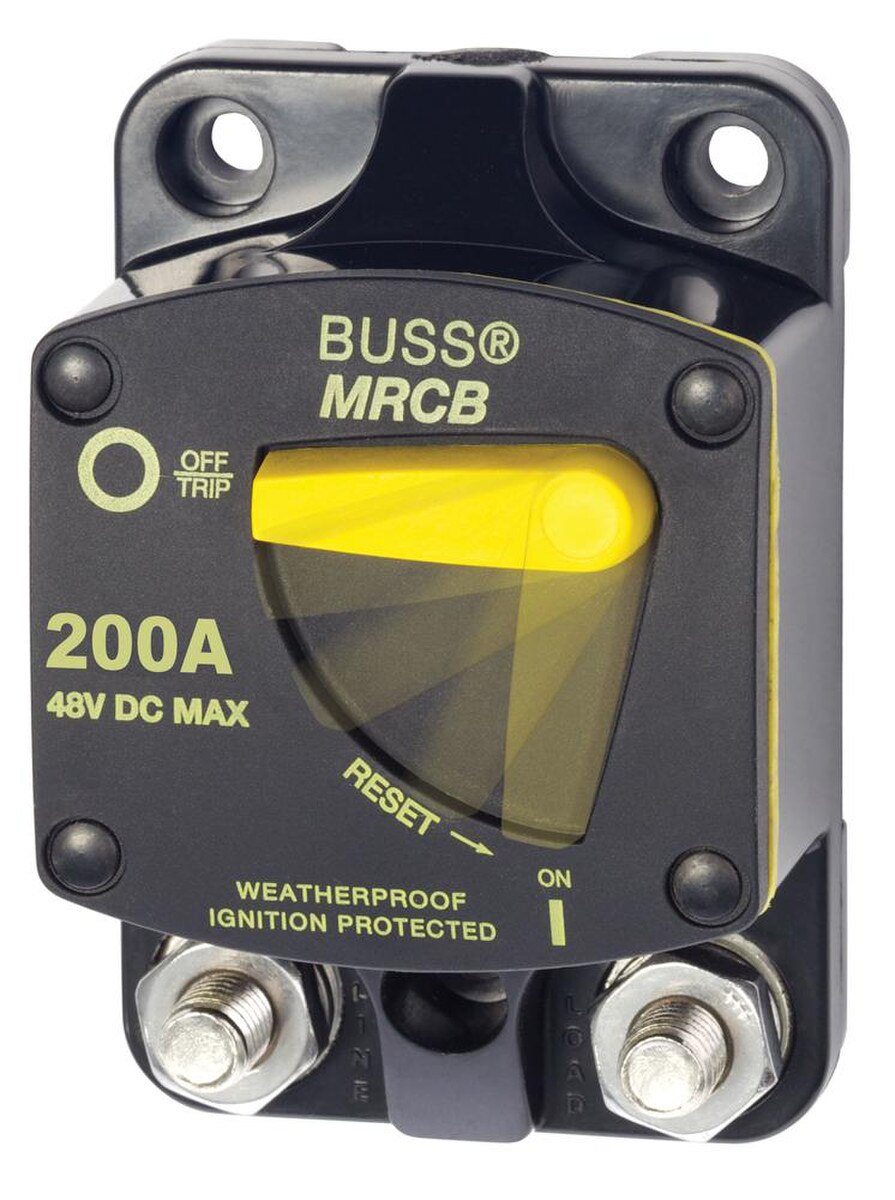

187-Series Circuit Breaker - Surface Mount (200A)

$16499
Options
187-Series Circuit Breaker - Surface Mount (100A) 187-Series Circuit Breaker - Surface Mount (100A) 187-Series Circuit Breaker - Surface Mount (120A) 187-Series Circuit Breaker - Surface Mount (120A) 187-Series Circuit Breaker - Surface Mount (135A) 187-Series Circuit Breaker - Surface Mount (135A) 187-Series Circuit Breaker - Surface Mount (150A) 187-Series Circuit Breaker - Surface Mount (150A) 187-Series Circuit Breaker - Surface Mount (200A) 187-Series Circuit Breaker - Surface Mount (200A) 187-Series Circuit Breaker - Surface Mount (30A) 187-Series Circuit Breaker - Surface Mount (30A) 187-Series Circuit Breaker - Surface Mount (40A) 187-Series Circuit Breaker - Surface Mount (40A) 187-Series Circuit Breaker - Surface Mount (50A) 187-Series Circuit Breaker - Surface Mount (50A) 187-Series Circuit Breaker - Surface Mount (60A) 187-Series Circuit Breaker - Surface Mount (60A) 187-Series Circuit Breaker - Surface Mount (70A) 187-Series Circuit Breaker - Surface Mount (70A) 187-Series Circuit Breaker - Surface Mount (80A) 187-Series Circuit Breaker - Surface Mount (80A) 187-Series Circuit Breaker - Surface Mount (90A) 187-Series Circuit Breaker - Surface Mount (90A) Disyuntor de montaje en superficie serie 187 Disyuntor de montaje en superficie serie 187 Surface Mount Breaker Combining Switching/Circuit Protection

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Combines switching and circuit protection into a single device*

  • Clear, single lever operation
  • Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats

* Do not use as a switch where high inrush currents are expected.

Especificaciones
  • Product Series
    87/187
  • MPN
    7149
  • Physical
    Dimensions: 3.2" x 1.85" x 1.24"
    Weight: 0.58 lbs (.26 kg)
  • Power
    Maximum Voltage: 48V DC
    Interrupt Capacity:
    - 5000A @ 14VDC
    - 3000A @ 28VDC
    - 1500A @ 48VDC
