Blue Sea Systems  |  SKU: BSS/7183  |  Código de barras: 632085071837

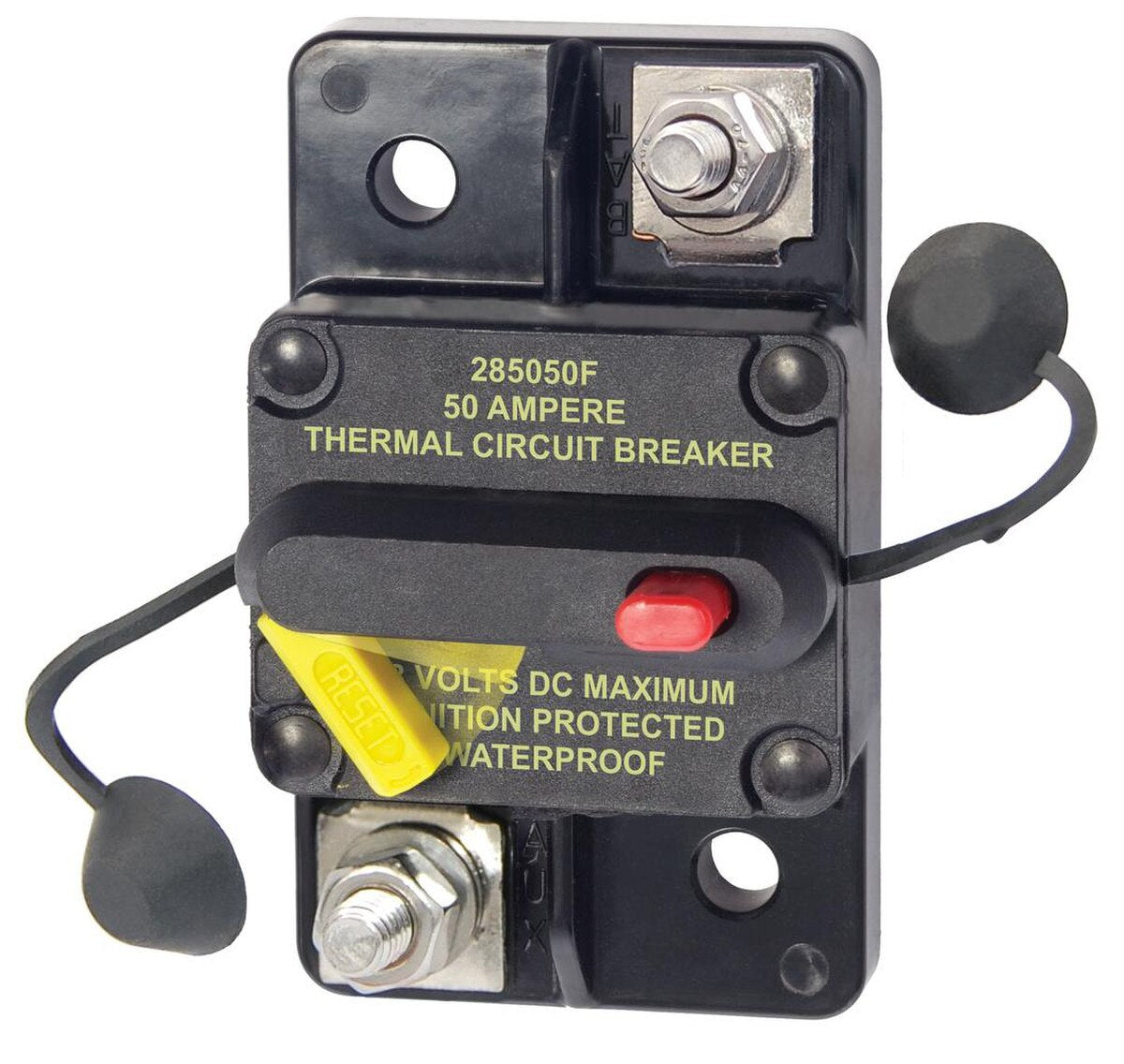

285-Series Circuit Breaker - Surface Mount (50A)

$7999
Options
285-Series Circuit Breaker - Surface Mount (100A) 285-Series Circuit Breaker - Surface Mount (100A) 285-Series Circuit Breaker - Surface Mount (120A) 285-Series Circuit Breaker - Surface Mount (120A) 285-Series Circuit Breaker - Surface Mount (150A) 285-Series Circuit Breaker - Surface Mount (150A) 285-Series Circuit Breaker - Surface Mount (30A) 285-Series Circuit Breaker - Surface Mount (30A) 285-Series Circuit Breaker - Surface Mount (40A) 285-Series Circuit Breaker - Surface Mount (40A) 285-Series Circuit Breaker - Surface Mount (50A) 285-Series Circuit Breaker - Surface Mount (50A) 285-Series Circuit Breaker - Surface Mount (60A) 285-Series Circuit Breaker - Surface Mount (60A) 285-Series Circuit Breaker - Surface Mount (70A) 285-Series Circuit Breaker - Surface Mount (70A) 285-Series Circuit Breaker - Surface Mount (80A) 285-Series Circuit Breaker - Surface Mount (80A) Disyuntor de montaje en superficie serie 285 Disyuntor de montaje en superficie serie 285 25A Surface Mount Circuit Breaker

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Drop in replacement for 185-Series Circuit Breakers

  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Especificaciones
  • Product Series
    285
  • MPN
    7183
  • Physical
    Dimensions: 3.2" x 1.85" x 1.24"
    Weight: 0.50lb (0.23 kg)
  • Power
    Maximum Voltage: 48V DC
    Interrupt Capacity: 3000A @ 48V
  • Connectivity
    Terminal: M6 (accepts 1/4" Ring Terminal)
  • IP Rating
    IP67
  • Certifications
    Ignition Protected, SAE J1171, CE
