Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 40...
Precio normal
$1099
Precio unitario
SKU:
BSS/2137
Precio normal
$1099
Precio unitario
Descripción
Descripción

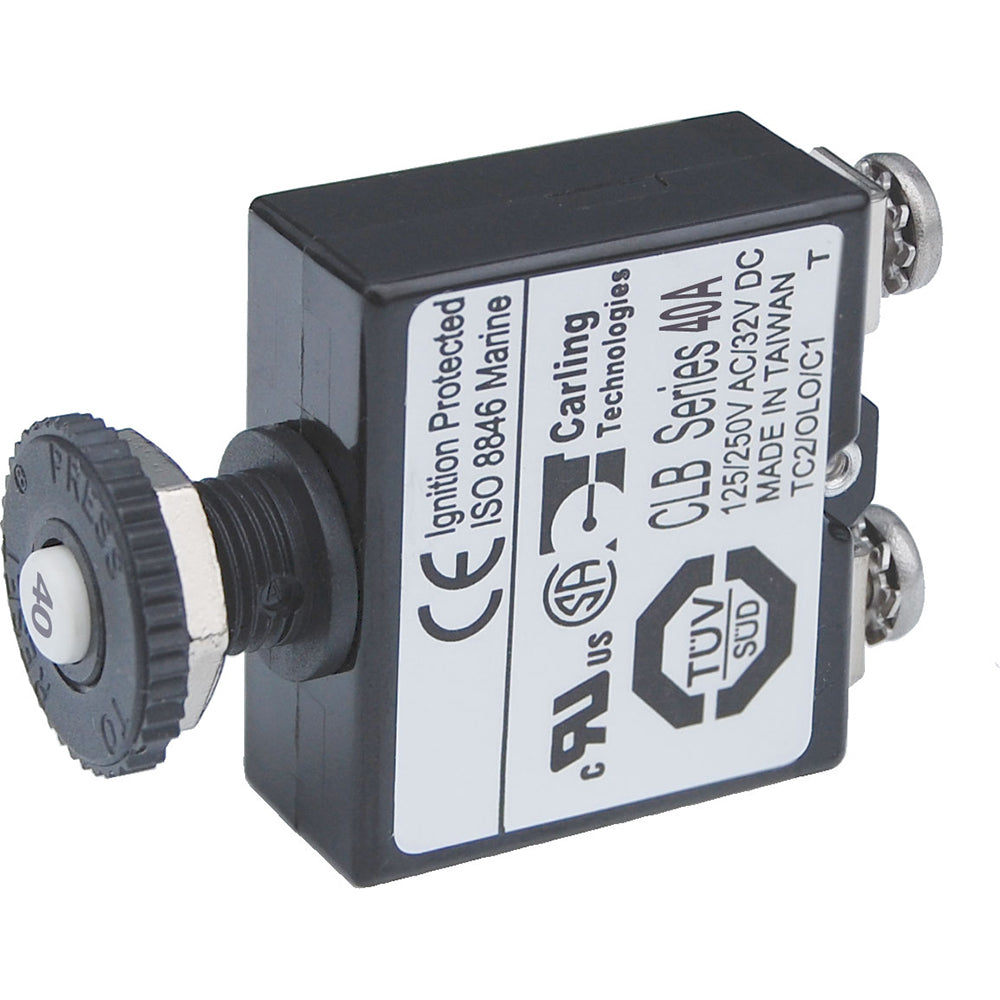

Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps
Features:
Specifications:
Features:
Specifications:
- Amperage: 40A
- Maximum Voltage: 32V DC
- Mounting: Panel Mount 3/8-27 UNS
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Type: #8 Screw
- Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 60° C
- Screw Terminal Torque: 6 in-lb (0.68 Nm)
- Weight: 0.09lb (0.04 kg)
Specifications
Specifications
Identification
| MPN | 2137 |
|---|---|
| Barcode | 632085021375 |
Electrical
| Branch circuit breakers (can also be used for 24-hour circuit protection)Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution PanelsCompact design enables high density circuit protection configurationsPush-to-reset operation"Trip Free" design cannot be held "ON" during fault current conditionIgnition protected | Safe for installation aboard gasoline powered boatsOptional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking |
|---|
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
