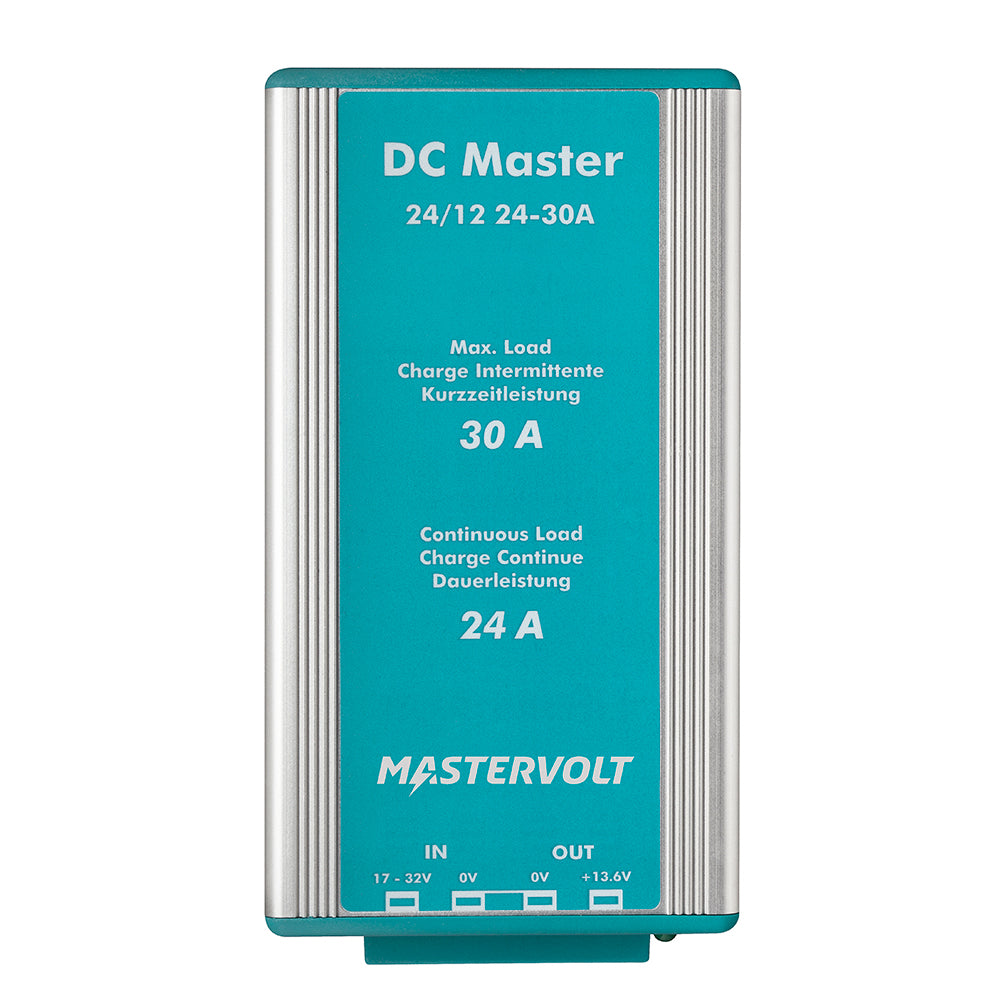

DC Master 24V to 12V Converter - 24 Amp
Always on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.
DC Master DC-DC converters
The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.
Features:
- Recreational and semi-professional use

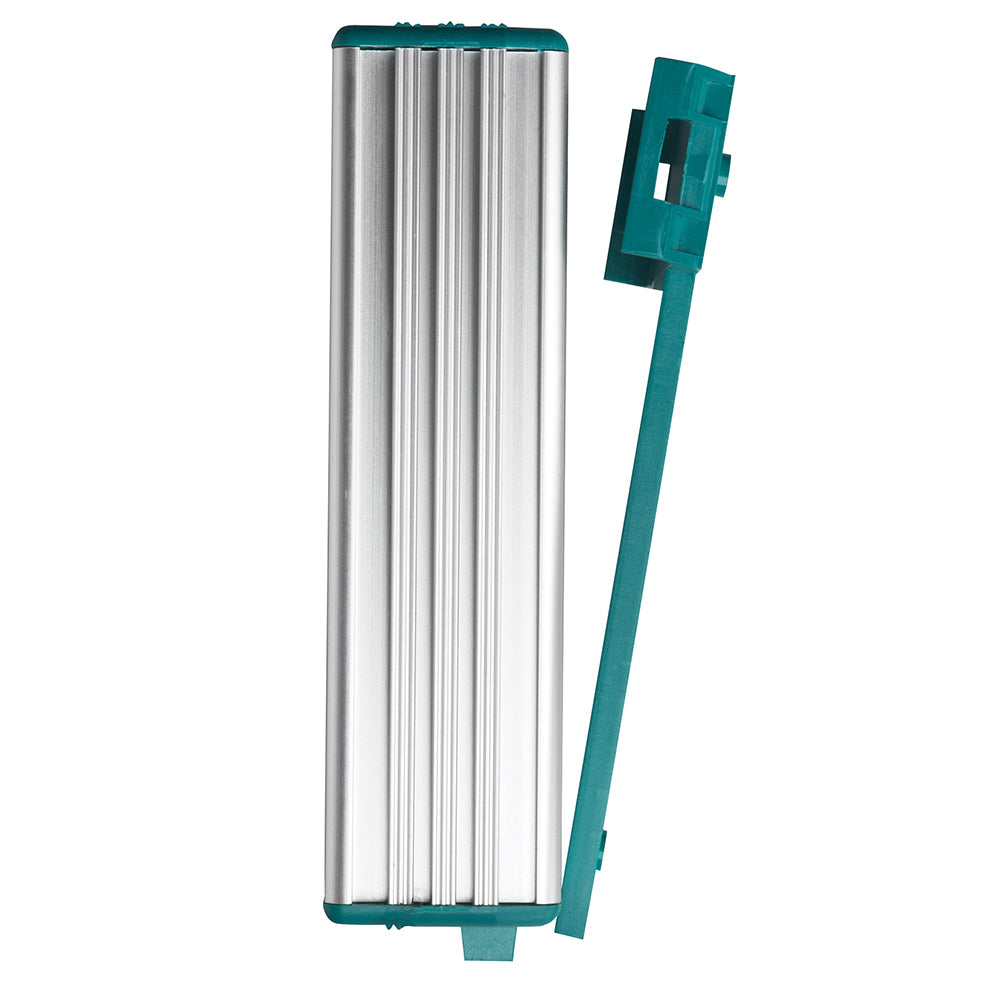

- Easy to install using included mounting bracket, screws and fasteners
- Smart electronics mean no unnecessary heat generation
- Continuous output
- Two minutes of extra power for short power boosts
- Excellent price/performance ratio
General Specifications
Technical Specifications
Specifications
Specifications
Identification
| MPN | 81400330 |
|---|---|
| Barcode | 816882020810 |
Electrical
| Nominal output voltage | 13.6 V |
|---|---|
| Max. output power | 408 W |
| Nominal output power | 326 W |
| Max. output current (for 2 min. intervals) | 30 A |
| Continuous output current | 24 A |
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
General
| Galvanic isolation | no |
|---|---|
| Stabilised | yes |
| DC consumption | < 15 mA |
| Connections | fast-on |
| Cooling | natural cooling |
| Protection degree | IP53 |
Physical
| Dimensions, hxwxd | 167 x 87 x 50 mm 6.6 x 3.4 x 2.0 inch |
|---|---|
| Weight | 0.62 kg 1.4 lb |
Certifications & Protection
| Compliance | CE |
|---|
Performance
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 30 |
|---|
