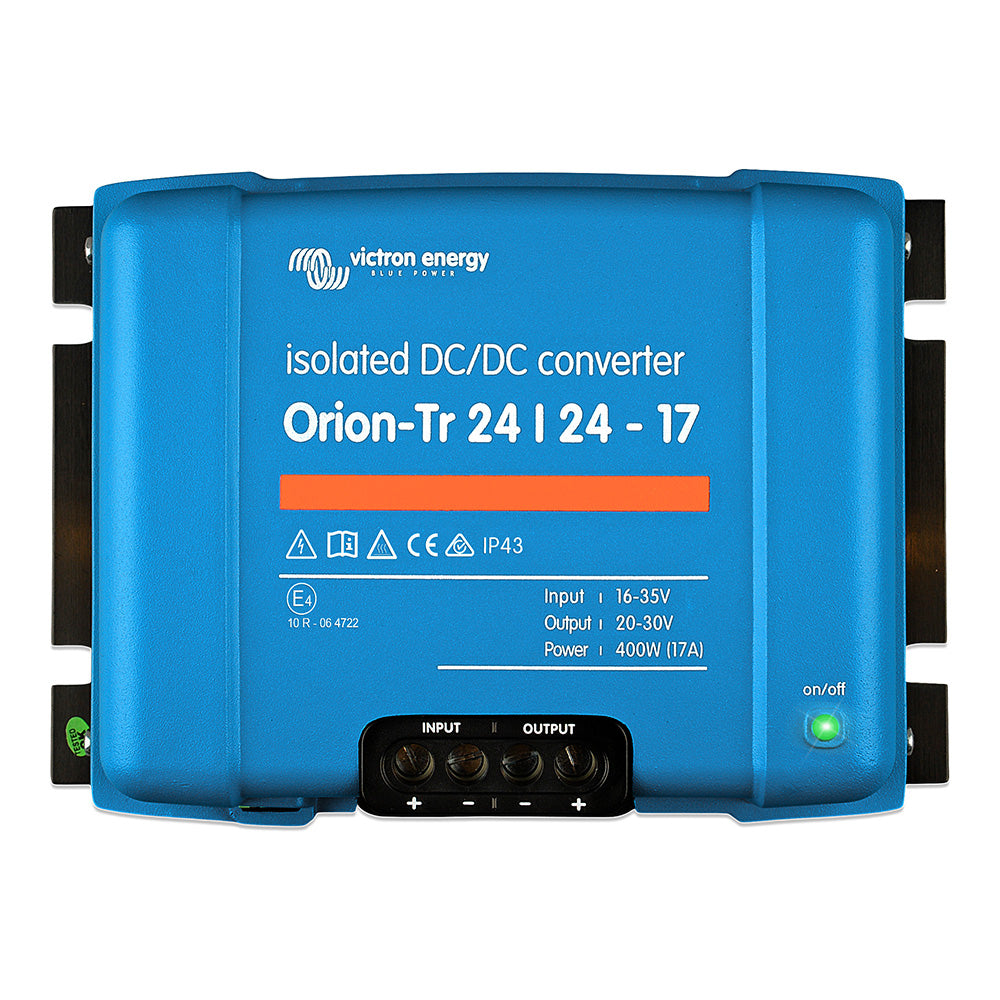

Orion-TR 24/24-17A (400W) Isolated DC-DC Converter
Isolated Model - separate in and out (-) leads

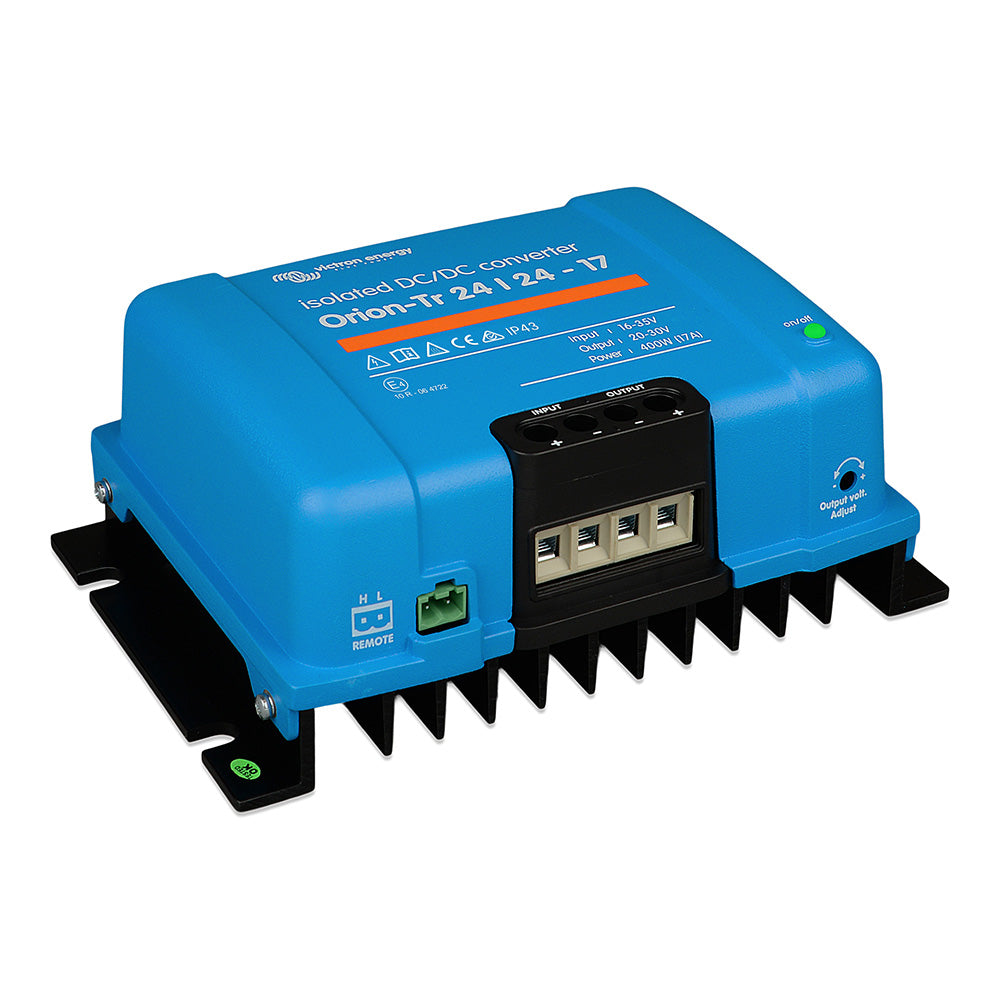

Remote On/Off Terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.
All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current
An unlimited number of units can be connected in parallel.
High Temperature Protected
The output current will reduce at high ambient temperatures.
IP43 Protection
When installed with the screw terminals oriented downward.
Screw Terminals
No special tools are needed for installation.
Input Fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable Output Voltage
Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).
Specifications
Specifications
Identification
| MPN | ORI242441110 |
|---|---|
| Barcode | 8719076038856 |
Electrical
| Input Voltage Range | 20-35 V |
|---|---|
| Under Voltage Shut Down | 14 V |
| Under Voltage Restart | 15 V |
| Nominal Output Voltage | 24.2 V |
| Output Voltage Adjust Range | 20-30 V |
| Output Voltage Tolerance | +/- 0,2 V |
| Output Noise | 2 mV rms |
| Cont. Output Current at Nominal Output Voltage and 40 Degrees C | 17 A |
| Maximum Output Current (10 S) at Nominal Output Voltage | 25 A |
| Short Circuit Output Current | 40 A |
| Cont. Output Power at 25 Degrees C | 480 W |
| Cont. Output Power at 40 Degrees C | 400 W |
| No Load Input Current (2) | < 80 mA |
General
| Efficiency | 89 % |
|---|---|
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55 Degrees C (derate 3 % per °C above 40 °C) |
| Humidity | Max. 95 % non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Safety Standards | EN 60950 |
| Emission Standards | EN 61000-6-3, EN 55014-1 |
| Immunity Standards | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
Physical
| Weight | 1.6 kg (3.5 lb) |
|---|---|
