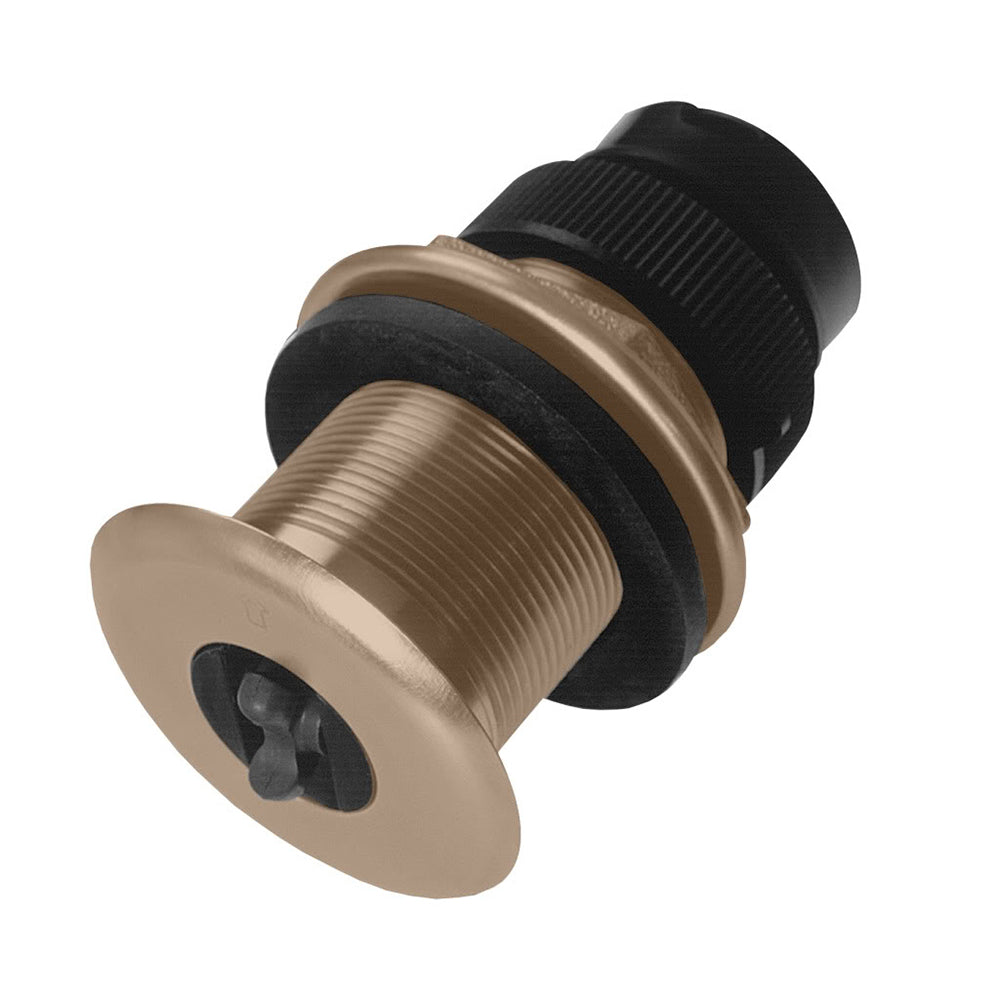

DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000
Airmar B617V Housing Style Transducer
The DST-801MSF offers depth, speed, and temperature in a single, 51 mm (2”) fitting. Only one hole through the hull simplifies the installation — an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing and upgraded 5 Hz (5X per second) speed-through-water enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-810MSF's reliable temperature sensor.
The DST-810MSF features a new Wireless connectivity to Airmar's CAST App, allowing you to calibrate the sensor, add depth offsets, and more.
Features:
- Depth, speed, and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Specifications
Specifications
Identification
| MPN | DST-810MSF |
|---|---|
| Barcode | 611679391384 |
Physical
| Weight | 1.6 kg (3.5 lb) |
|---|---|
| Minimum Sounding Depth | 0.5 m (1.6’) |
| Maximum Sounding Depth | 70 m (230’) |
| Standard Cable Length | 6m |
General
| Acoustic Window | Urethane Hull |
|---|---|
| Deadrise | Up to 22° |
Performance
| Data Update Rate | 1 per second |
|---|---|
| Pressure Rating | 3 m (10’) |
Certifications & Protection
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
|---|
Electrical
| Smart Sensor Supply Voltage at 100% Sound Power Output | 11.5 VDC to 25 VDC |
|---|---|
| Supply Current | 40 mA |
Control & Connectivity
| NMEA 2000® Load Equivalency Number (LEN) | 4 |
|---|
