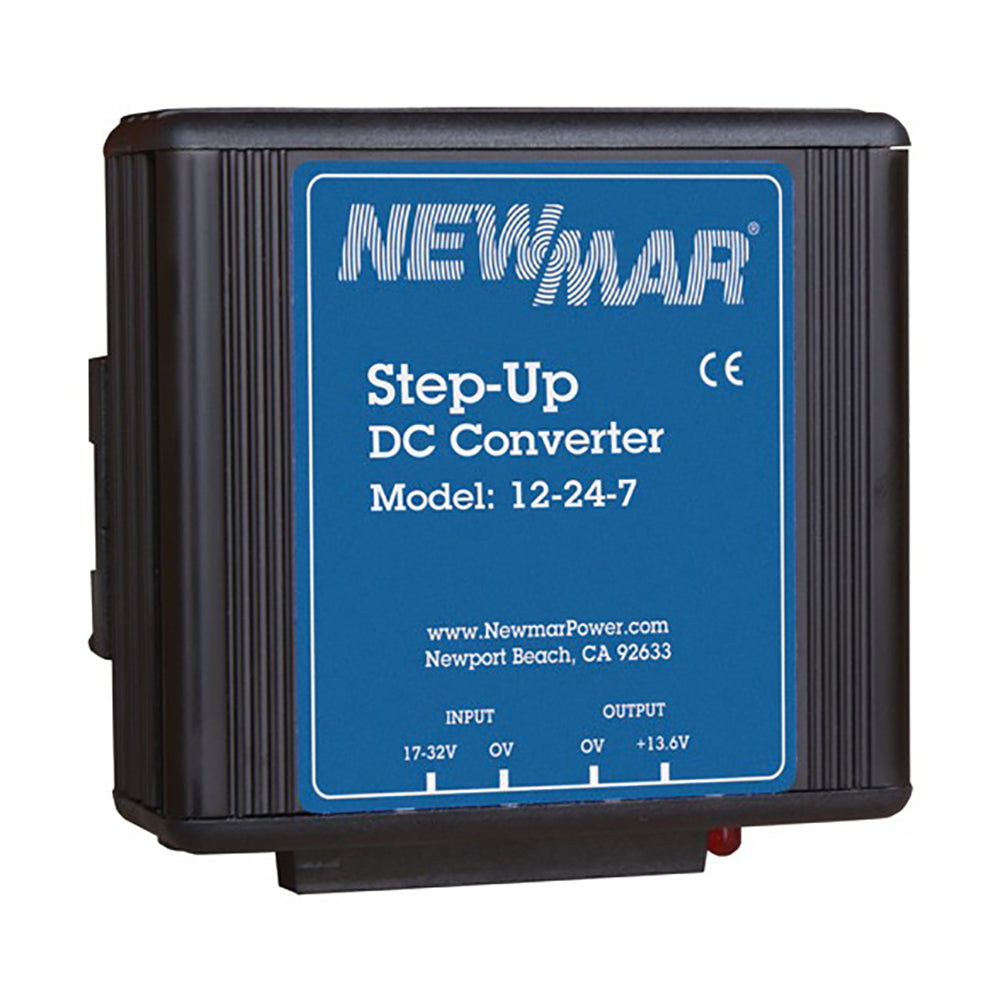

12V-24V 7 Amp Converter for DRS12AX X-Class Open Array - Newmar
Newmar 12-24-7 Step Up Dc-Dc Converter 7amp Conitnuos
These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:
In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.
Standard, Non-Isolated Series
- Intended for use on negative ground systems
- 10 -15 VDC input range
- 7 Amp output
- Current limited, voltage spike suppression, automatic thermal shutdown and recovery
Specifications:
- Duty Cycle:
Mechanical
- Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
- Front panel terminal block
Specifications
Specifications
Identification
| MPN | NEW-12V-24V-7A |
|---|---|
| Barcode | 611679368058 |
General
| Input | 10 - 15V DC |
|---|---|
| Output | 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc. |
| Ripple | <100mV P-P |
| Intermittent | 2 minutes, 20% duty |
| Continuous | 24 hours, 100% duty |
| Efficiency | 93% - Typical. |
| Output indicator | Green LED |
Certifications & Protection
| Regulation | +/- 5% Line/Load |
|---|
Performance
| Operating Temp | -25º - 30º C, derate linearly from 30 to 0% @ 80º C |
|---|
