Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - Black
Need This Product Installed?
Need This Product Installed?
We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL
Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - ...
Descripción
Descripción

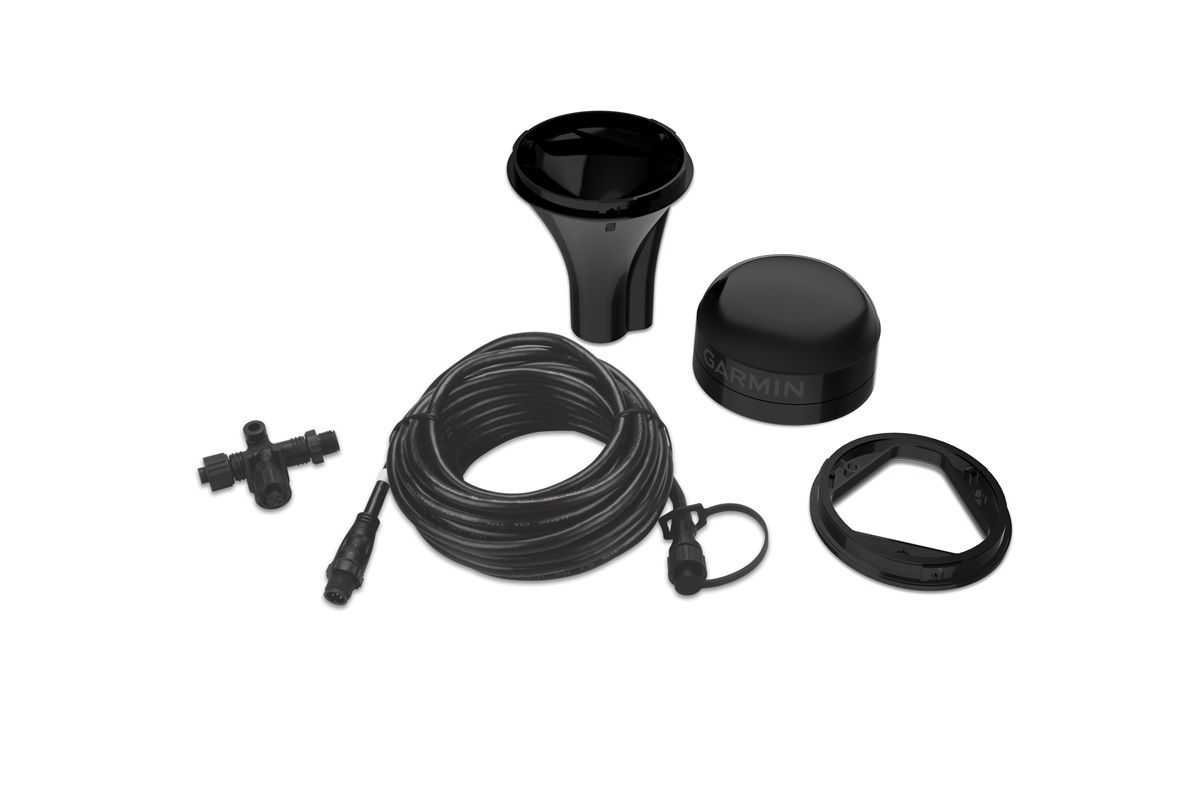

GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black
The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds.
Features:
- Navigate to more locations with expanded GNSS support
- Get high-sensitivity tracking with a fast GPS update rate
- Accurately pinpoint, regardless of speed
- It’s water-resistant (IPX7) to withstand the elements
- Install it easily with multiple mounting options
- The antenna is compatible with NMEA 2000® devices
Specifications
Specifications
Identification
| MPN | 010-02316-20 |
|---|---|
| Barcode | 753759331214 |
Physical
| Color | Black |
|---|---|
| Dimensions (D x H) | 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm) |
| Weight | 7.1 oz (201 g), white; 6.2 oz (176 g), black |
| Cable Length | 19 ft 8" (6 m) |
General
| Temperature Range | -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black |
|---|---|
| Case Material | Fully gasketed, high-impact plastic alloy; waterproof to IPX7 |
| Compass-Safe Distance | 5.9" (150 mm) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 (150 mA) |
| Position Accuracy, Typical Marine Use | < 1-meter CEP, < 3 meters, 95% |
Electrical
| Power Source Input | 9-32 Vdc |
|---|---|
| Input Current | 150 mA at 12 Vdc |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
