Garmin | SKU: GAR/020-00332-00 | Código de barras: 753759325350

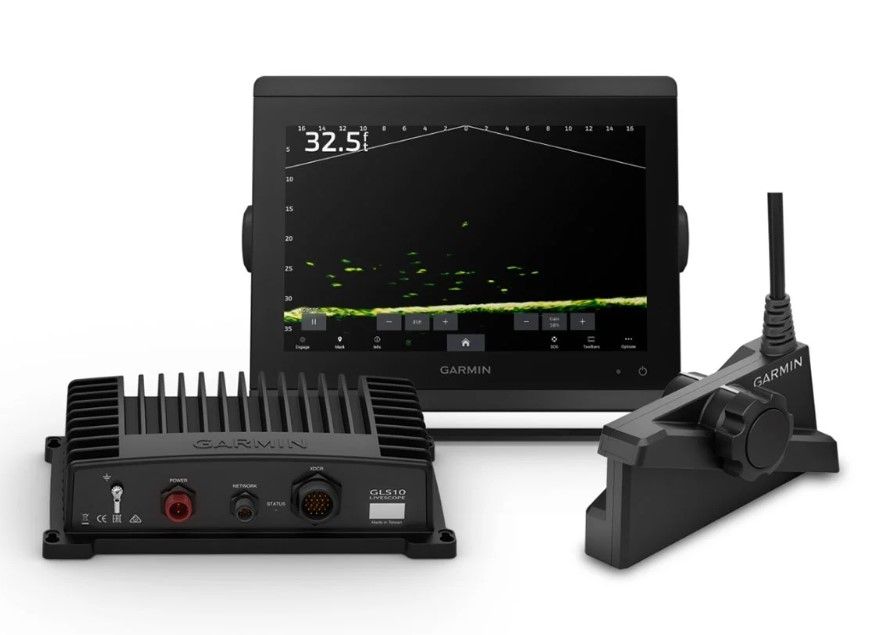

GPSmap 8610xsv + LiveScope Ice Fishing Bundle

Name: GPSmap 8610xsv + LiveScope Ice Fishing Bundle
Brand: Garmin
SKU: GAR/020-00332-00
Price: 4899.99 USD
Availability: OutOfStock

$4,899⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System and everything else you’ll need to catch more fish.

This chartplotter features a 10" full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.

Create custom pages that combine sonar and maps on your display.

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

10" FULL HD IPS TOUCHSCREEN DISPLAY
SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT (HDMI CABLE NOT INCLUDED)
LIVESCOPE™ FORWARD AND LIVESCOPE™ DOWN MODES
PRELOADED WITH GARMIN NAVIONICS+™ MAPPING OF 25,000+ INLAND AND COASTAL LAKES

Especificaciones

Product Series

8600
MPN

020-00332-00
Physical

W: 10.25" (25.9 cm)
H: 8.0625" (20.5 cm)
D: 2.95" (7.5 cm)
Weight: 5.2 lbs (2.4 kg)
Mounting

Type: Bracket or Flush
Cutout:
W: 9 13/16" (250 mm)
H: 6 15/16" (176.7 mm)

Bracket Included
Power

Input: 10-32v DC
Typical Draw: 1.5 A @ 12v
Max Draw: 6.0 A @ 12v
Screen

Touchscreen: Yes
Type: WUXGA
Size: 8.6" x 5.4"; 10.1" diagonal
(21.8 cm x 13.7 cm; 25.7 cm diagonal)
Resolution: 1920 x 1200
IPS: Yes
Sonar

Built-In Sonar: Yes
Port: 8pin / 12pin
Power: 1kW
Frequencies:
Traditional: Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz
Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT+
Network: Marine Network Large (2)
NMEA 0183: Yes (Requires Accessory)
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Sonar: Yes - 8pin / 12pin
Built-In Chart

Navionics+ (Inland & Coastal)
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S.
LiveScope Plus LVS34-IF transducer
GLS™ 10 black box sonar module with power and network cables

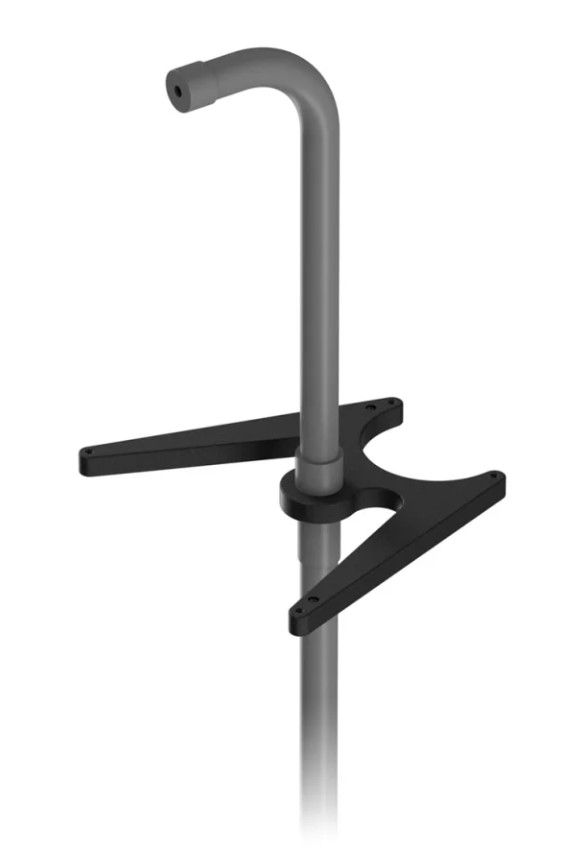

Ice fishing pole mount
Documentation

Package Dimensions:
