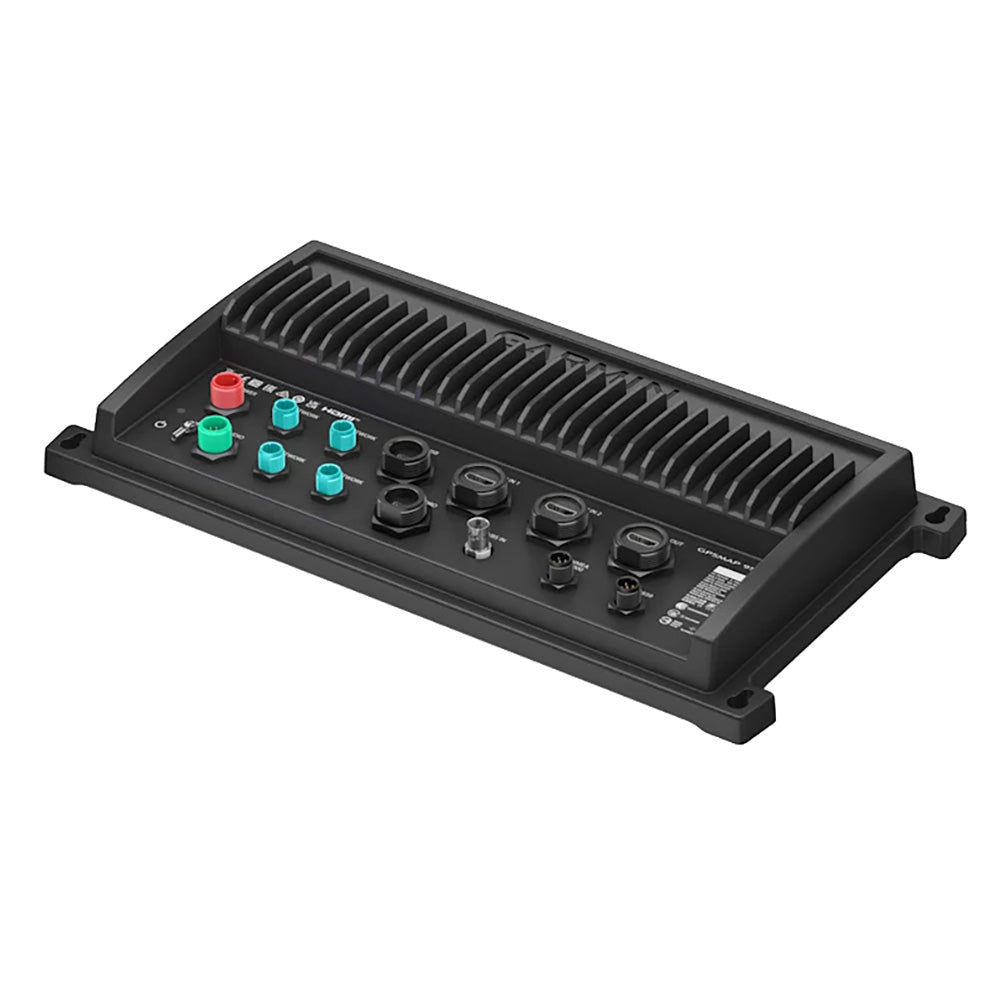

Caja negra GPSmap 9500

Para capitanes que exigen lo mejor

Lleve el paraíso al tablero de su embarcación cuando conecte la caja negra premium GPSMAP 9500 a sus monitores compatibles con HDCP. Cuenta con una potencia de procesamiento hasta 7 veces más rápida que las generaciones anteriores para un rendimiento superior, de modo que pueda dibujar cartas rápidamente y calcular rutas a la velocidad del rayo. Agrega conectividad integral a toda su embarcación.

In The Box:

GPSMAP 9500 Black Box
Power cable
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
Mounting hardware
Documentation
Dimension: 15.1" x 7.8" x 1.9" (38.3 x 19.8 x 4.7 cm)
Weight: 3.49 lbs (1.583 kg)
Waterproof: IPX7
Display Type: None (external display)
Display Size: None (external display)
Display Resolution: 1920x1080, 1024x600, 1280x800, 1920x1200, 3840x2160, 1024x768, 1280x1024 pixels
Accepts Data Cards: no (USB Card Reader required)
Compatible with Garmin SD Card Reader: Yes
Waypoints: 5000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100
GPS: Yes
GLONASS: Yes
GALiLEO: Yes
BEIDOU: Yes
NMEA 2000 Compatible: Yes
NMEA 0183 Compatible: Yes
Support WAAS: Yes
Supports Multi-Band, Multi-Constellation GPS: Yes
Garmin Navionics+™: Yes
Garmin Navionics Vision+™: Yes
Standard Mapping: Yes
Garmin Quickdraw Contours: Yes
Raster Chart Support: Yes
Smart Mode Compatible: Yes
AIS: Yes
DSC: Yes
Supports Fusion-Link™ Compatible Radios: Yes
GSD Black Box Sonar Support: Yes
GCV Black Box Sonar Support: Yes
Activecaptain® Compatible: Yes
Grid (Garmin Remote Input Device) Compatible: Yes
Wireless Remote Compatible: Yes
Sailing Features: Yes
Spoken Audio Alerts: Yes
Onehelm Support: Yes
Power Input: 10 to 35 Vdc
Typical Current Draw at 12 Vdc: 2.0A
Maximum Current Draw at 12 Vdc: 3.3A
Maximum Power Usage at 10 Vdc: 40w
Displays Sonar: Yes
Traditional Sonar (Dual Frequency/Beam): yes (with compatible black box sonar)
Clearvü: Yes (with compatible black box sonar)
Sidevü: Yes (with compatible black box sonar)
Panoptix™ Sonar: Yes
Livescope: Yes

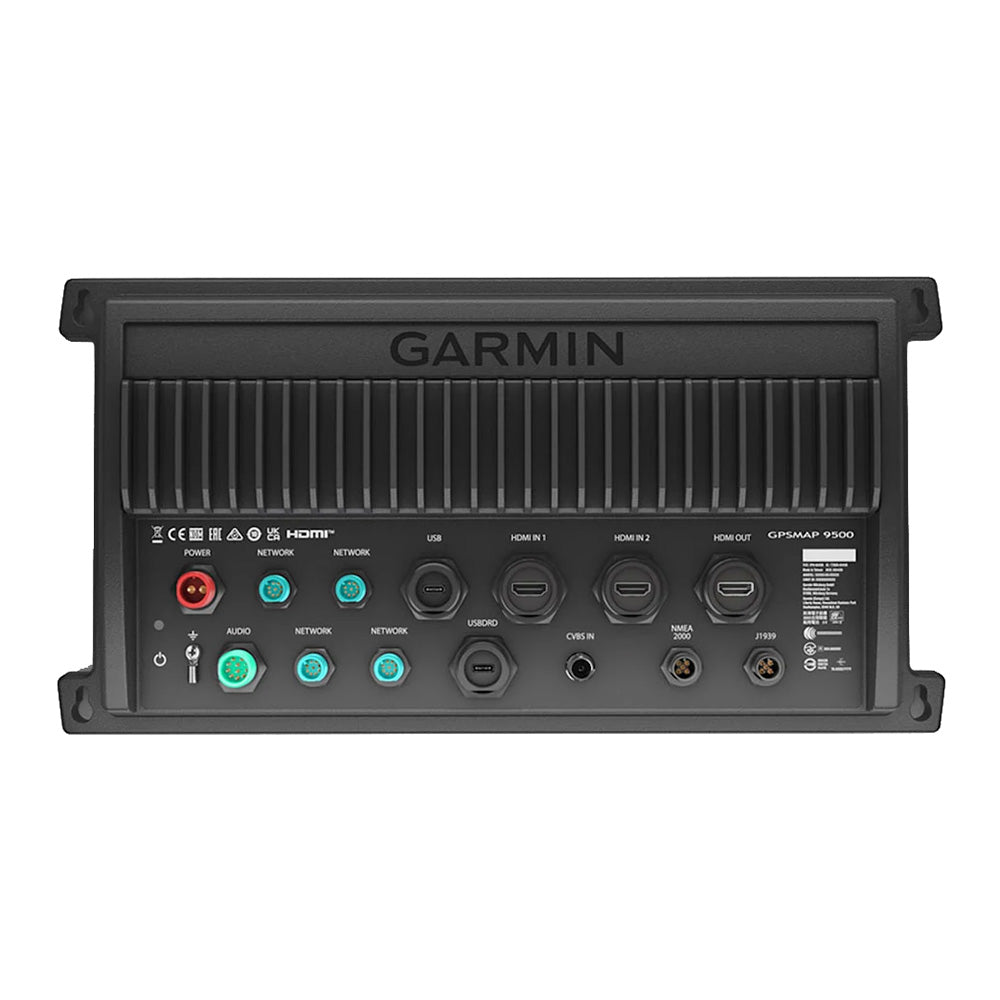

NMEA 2000® Ports: 1
NMEA 0183 Input (Rx) Ports: 1
NMEA 0183 Input (TX) Ports: 1
Video Input Ports: 1 (BNC composite); 2 HDMI (HDCP compliant)
Video Output Ports: 1 HDMI
J1939 Ports: 1
Garmin BLUENET Network Ports: 4
USB Ports: Yes (2x USB-C)
Bluetooth® Pairing: Yes
Ant+ (Connectivity): Yes
Garmin Wi-Fi Network (Local Connection): Yes
Audio Output: Yes

Package Dimensions:

19" x 10" x 4"

Available Method: Ground

• Owner's Manual
• Installation Guide

* ALL WARRANTY IS THROUGH MANUFACTURE *
