Raymarine  |  SKU: RAY/E70640  |  Código de barras: 723193837528

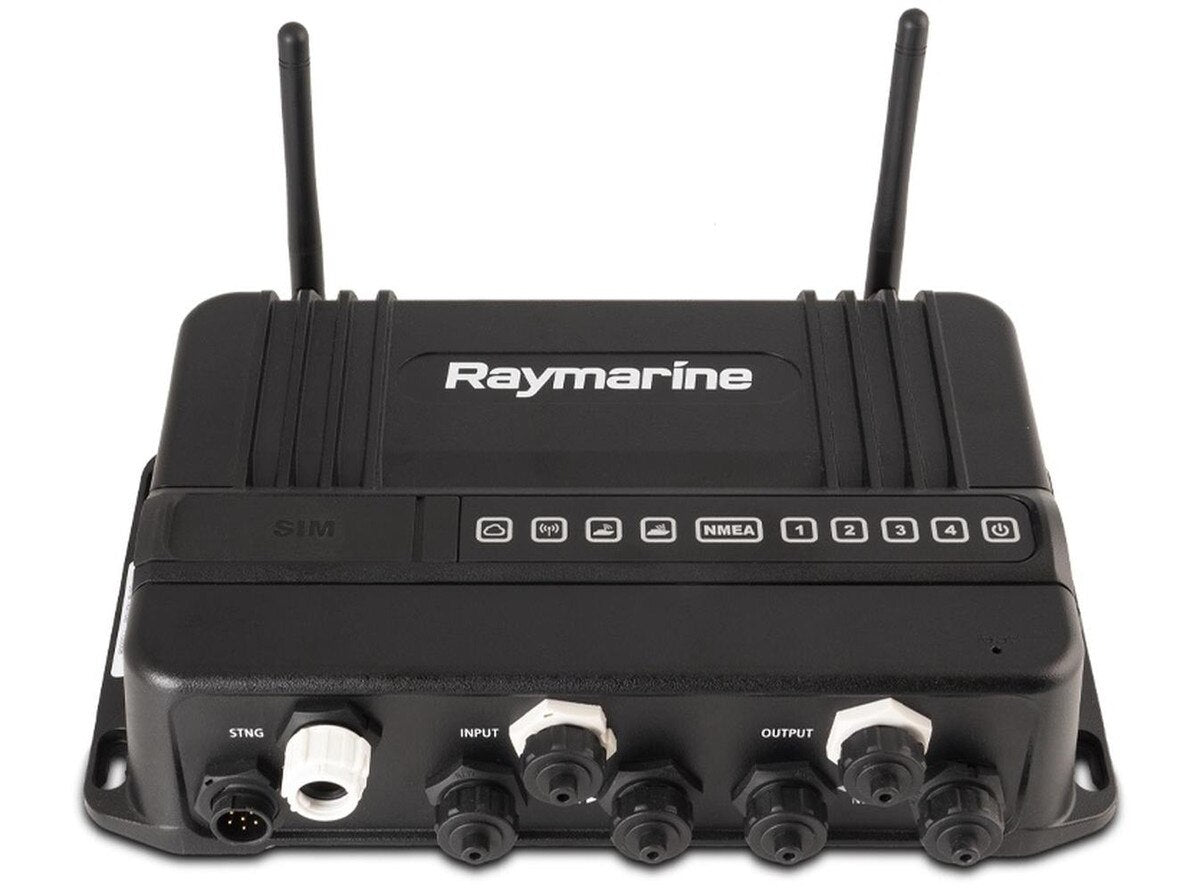

Yachtsense Link Marine Mobile Router

Precio normal $1,31999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.

  • REMOTE MONITORING
  • ALWAYS CONNECTED
  • STAY INFORMED

Especificaciones

  • MPN
    E70640
  • Physical
    W: 9.53" (242 mm)
    H: 6.39" (162.20 mm)
    D: 2.48" (63 mm)
    Weight: 2.26 lbs (1.03 kg)
  • Power
    Input: 8 - 32v DC
  • Connectivity
    WiFi: Yes
    Boat Wi-Fi: Wi-Fi access point mode
    2.4 GHz (2412 MHz to 2472 MHz
    2422 MHz to 2462 MHz): 13.28 dBm
    Dock WLAN: Wi-Fi station mode
    2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm
    5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
    5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm

    Cellular: Yes
    Frequencies: 2G/3G/4G
    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28
    LTE-TDD: B38/B39/B40/B41
    WCDMA: B1/B2/B4/B5/B6/B8/B19
    GSM: B2/B3/B5/B8
  • IP Rating
    IPx6
  • Temp Range
    -25 degC (-13 degF) to + 55 degC (131 degF)

Reseñas (0)

In The Box

In The Box:

YachtSenseTM Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted).
x4 mounting fixings (PA 4 x 25 mm self tapping screws).
Documentation pack
5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket.
x2 Dipole antenna (BOAT Wi-Fi).
RayNet to RJ45 cable 1 m (3.3 ft).
SeaTalkng(R) spur cable 1 m (3.3 ft).
8Power cable with 8 A fitted fuse 1.5 m (4.9 ft).
x2 Input/Output (I/O) cables 0.5 m (1.64 ft).

Package Dimensions/Shipping:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
