Raymarine | SKU: RAY/E70650 | Código de barras: 723193842737

Alpha 9 Performance Display

Name: Alpha 9 Performance Display
Brand: Raymarine
SKU: RAY/E70650
Price: 2199.99 USD
Availability: InStock

$2,199⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

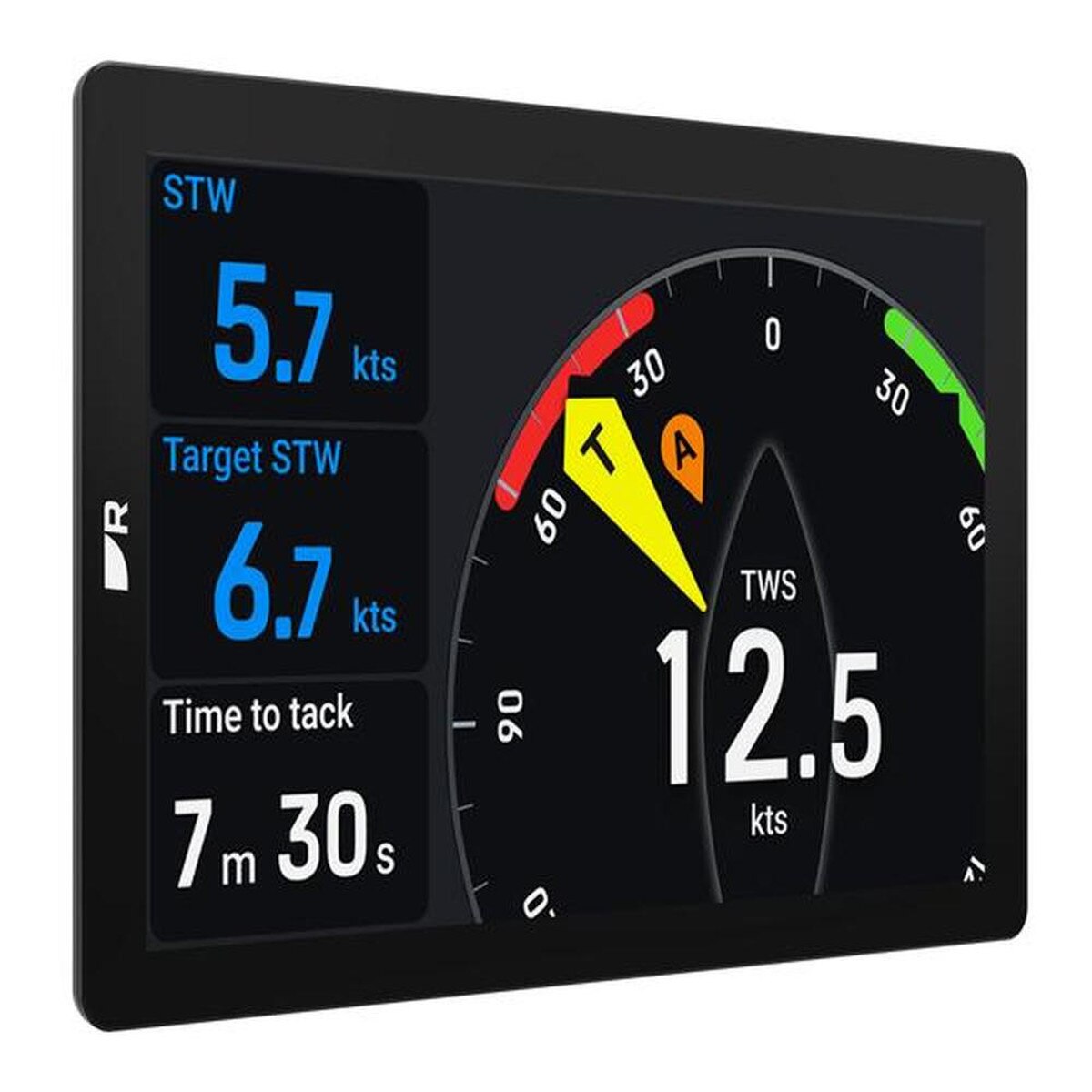

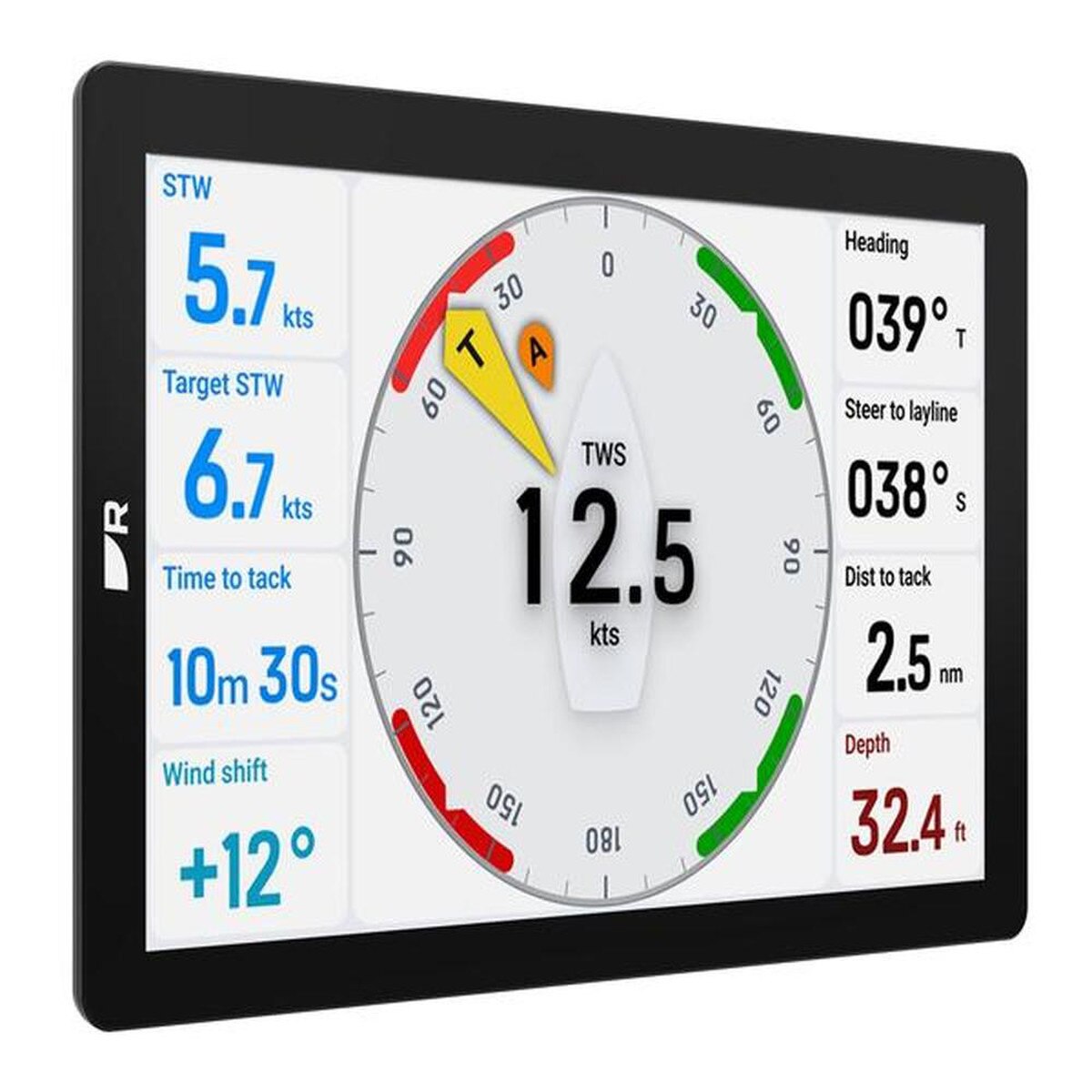

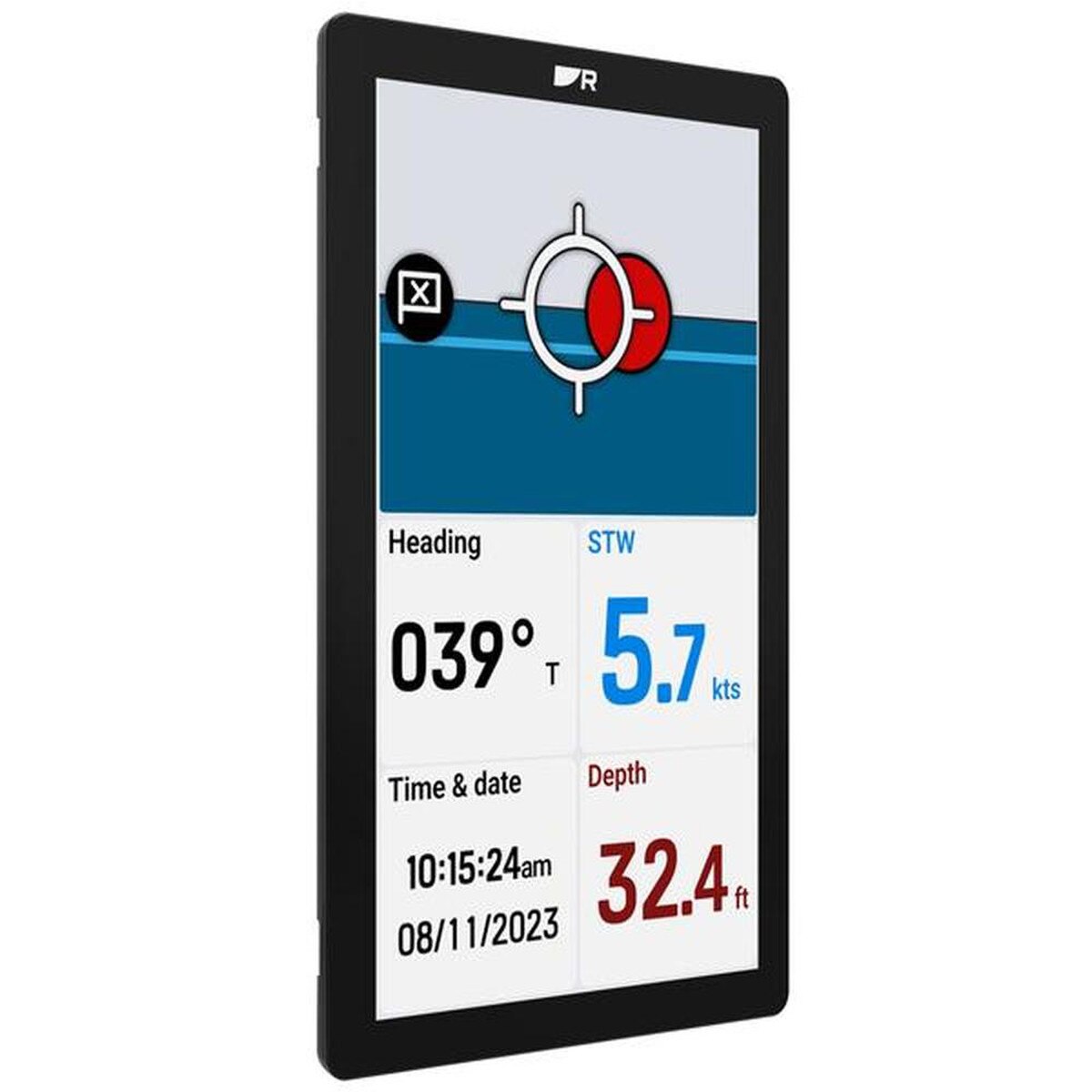

Alpha Performance Displays are our most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha's extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance.

High Visibility

Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote location

Rugged Build

Tested to the extreme and built with our exclusive HydroTough nano-coating that repels water and oils for reliable touchscreen control

Fully Scaleable

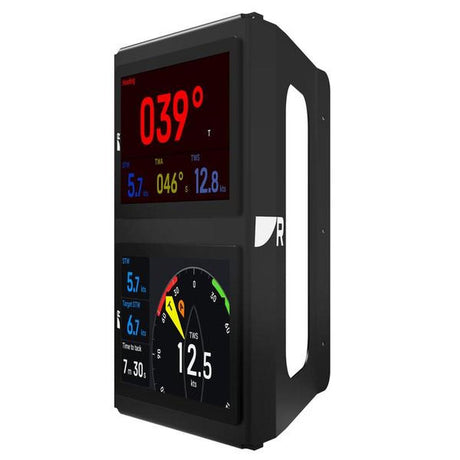

A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displays

Especificaciones

Product Series

Alpha
MPN

E70650
Physical

Dimensions:
H: 9.39" (235.9 mm)
W: 5.86" (148.9 mm)
D: 1.08" (27.5 mm)
Weight: 2.60 lbs (1.18 kg)
Power

Input: 10.8-32v DC
Draw: 1.02 A @ 12v / 0.52 A @ 24v
Screen

Touchscreen:
Type: IPS TFT LCD
Size: 9"
Resolution: 1280 x 720
Connectivity

Power/RayNet Port
Daisy Chain Port
Other

The Alpha Performance Displays require an Axiom Chartplotter in order to operate
IP Rating

IPx7
